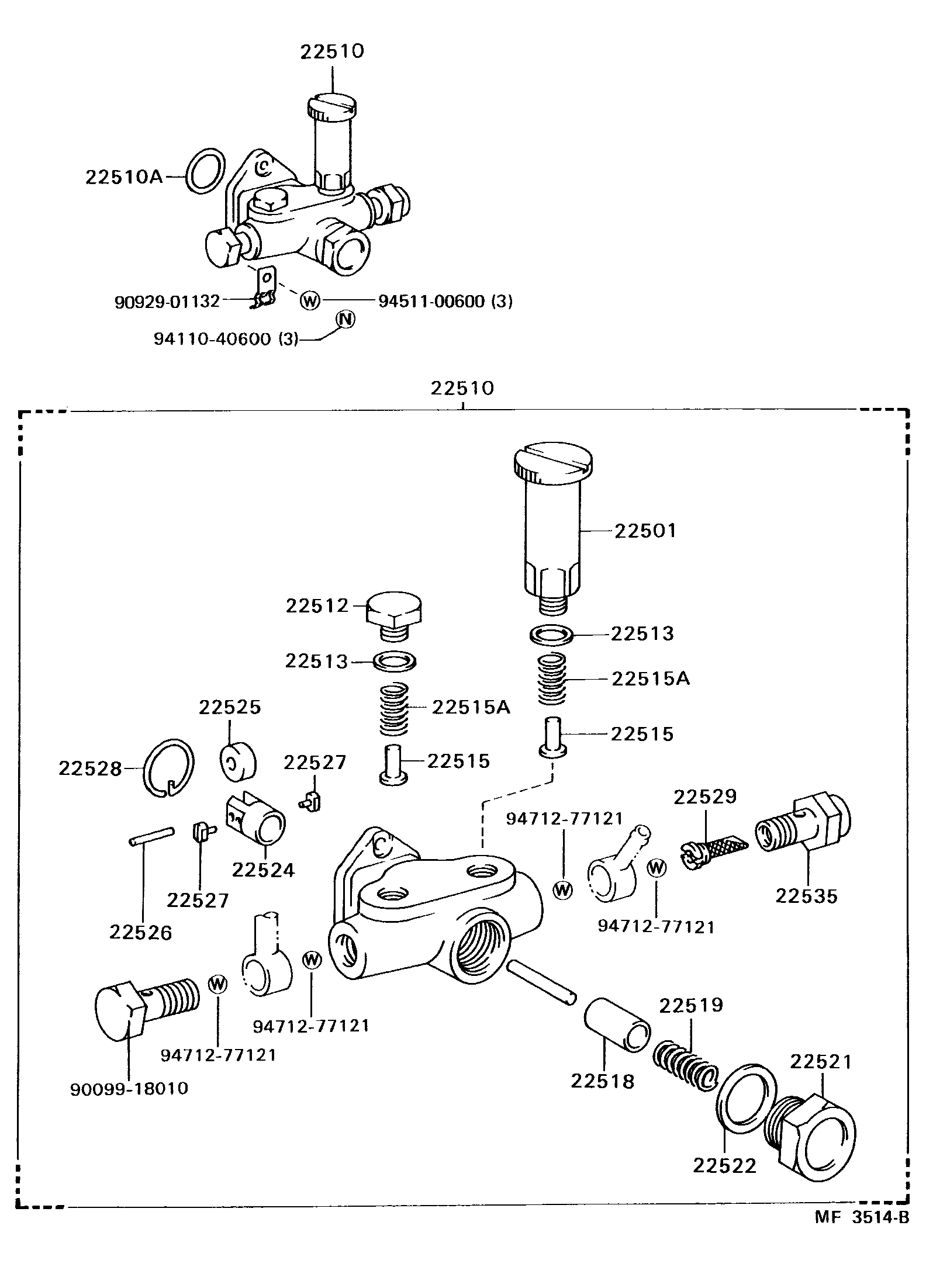

Toyota LAND CRUISER — FUEL FEED PUMP
22501PUMP SUB-ASSY, PRIMING
22510PUMP ASSY, FUEL FEED
22510ARING, O(FOR FUEL FEED PUMP)
22512PLUG, FEED PUMP CHECK VALVE CHAMBER
22513GASKET, CHECK VALVE CHAMBER PLUG
22515VALVE, FEED PUMP CHECK
22515ASPRING, FEED PUMP CHECK VALVE
22518PISTON, FEED PUMP
RED,RED
YELLOW,YELLOW
GREEN,GREEN
WHITE,WHITE
BLUE,BLUE
22519SPRING, FEED PUMP PISTON
22521PLUG, FEED PUMP PISTON CHAMBER
22522GASKET, FEED PUMP PISTON PLUG
22524TAPPET, FEED PUMP
22525ROLLER, FEED PUMP TAPPET
22526PIN, FEED PUMP TAPPET ROLLER
22527BLOCK, FEED PUMP TAPPET SLIDING
22528RING, FEED PUMP TAPPET SNAP
22529FILTER, FUEL PUMP
22535SCREW, FUEL PIPE FOLLOW
9009918010
main90099-18010
9092901132
main90929-01132
9411040600
main94110-40600
9451100600
main94511-00600
9471277121
main94712-77121
23 parts on this diagram · 1 diagram in section
FUEL FEED PUMP for Toyota LAND CRUISER
This section contains 23 genuine Toyota parts for the FUEL FEED PUMP system of the Toyota LAND CRUISER. Key components include: PUMP SUB-ASSY, PRIMING, PUMP ASSY, FUEL FEED, RING, O(FOR FUEL FEED PUMP), PLUG, FEED PUMP CHECK VALVE CHAMBER, GASKET, CHECK VALVE CHAMBER PLUG.
