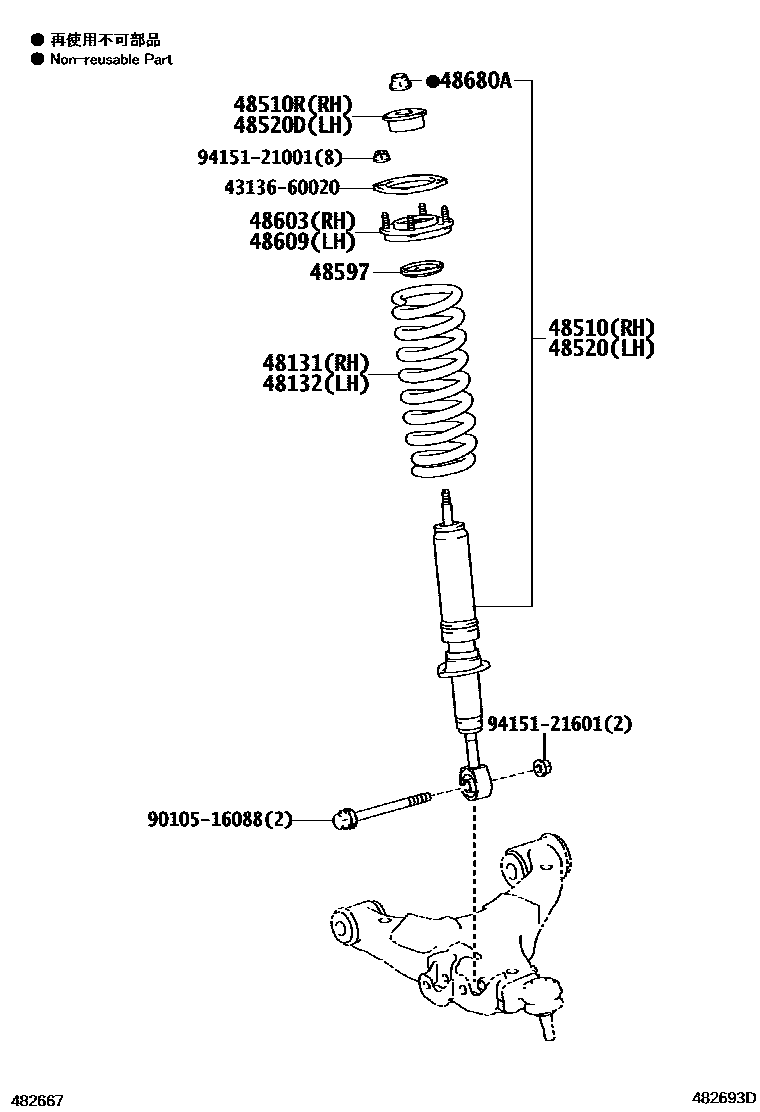

Toyota LAND CRUISER — FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-60D20i200709-201001

main48131-60D21supersedes 48131-60D40i201201-201508

48132SPRING, FRONT COIL, LH

main48131-60C80i200709-201001

main48131-60C81supersedes 48131-60D21i201002-201201

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-69405supersedes 48510-69395i200709-201201

MARK 48510-60180,MEXICO SPEC

main48510-80823supersedes 48510-80824i201508-202104

MARK 48510-60240,MEXICO SPEC

48510RCUSHION, FRONT SHOCK ABSORBER, NO.1 RH

main90948-01096i201201-201508

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-69405supersedes 48510-69395i201201-201508

MARK 48510-60180,MEXICO SPEC

main48510-80823supersedes 48510-80824i201508-202104

MARK 48510-60240,MEXICO SPEC

48520DCUSHION, FRONT SHOCK ABSORBER, NO.1 LH

main90948-01096i201201-201508

48597RETAINER, SHOCK ABSORBER CUSHION

main48597-60120×2i200709-201201

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-60070i200709-201201

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-60070i200709-201201

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94188-01401×2i200709-201201

4313660020SPACER, FRONT SPRING

main43136-60020

9010516088

main90105-16088

9415121001

main94151-21001

9415121601

main94151-21601

14 parts on this diagram · 3 diagrams in section
