Toyota LAND CRUISER — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

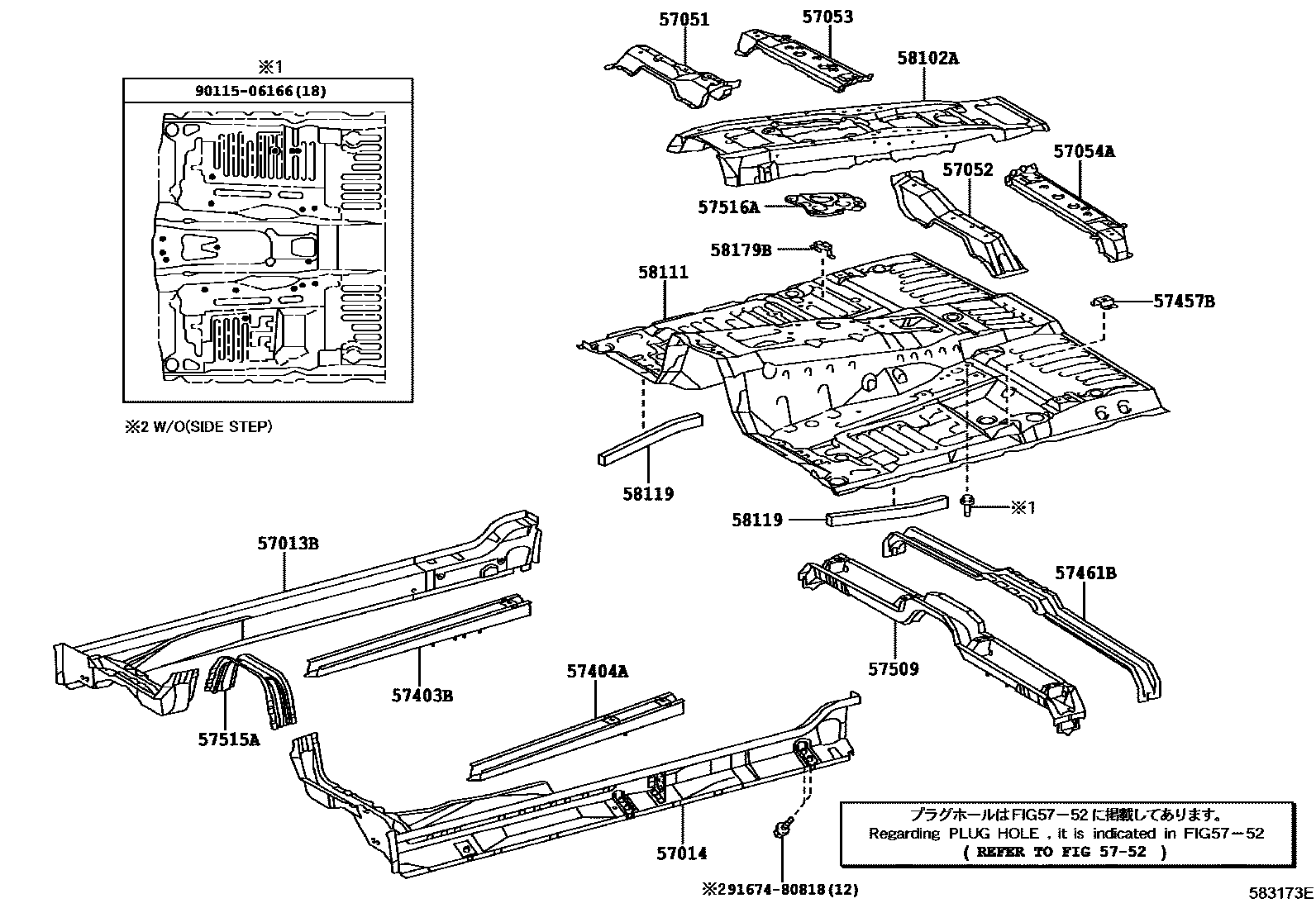

Parts diagram
57013BMEMBER SUB-ASSY, FLOOR, FRONT RH
main57013-60010i201201-201508
57014MEMBER SUB-ASSY, FLOOR, FRONT LH
main57014-60010i200709-201201
57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
main57051-60060i201508-202104
main57051-60061i200905-200907
AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER&REAR SEAT ENTERTAINMENT-WITH; WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER&REARSEAT ENTERTAINMENT-WITH
57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
main57052-60060i201201-201508
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
main57053-60050i201201-201508
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
main57054-60010i201201-201508
57403BREINFORCE SUB-ASSY, FLOOR SIDE, INNER RH
main57403-60060i201508-202104
main57417-60080i200905-200907
AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER&REAR SEAT ENTERTAINMENT-WITH; WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER&REARSEAT ENTERTAINMENT-WITH
57404AREINFORCE SUB-ASSY, FLOOR SIDE, INNER LH
main57404-60060i200709-201201
57457BBRACKET, FRONT SEAT, FRONT
main57457-60030i200709-201201
57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
main57461-60020i200709-201201
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
main57509-60090i200709-201201
57515AREINFORCEMENT, FRONT FLOOR, CENTER
main57515-60030i200709-201201
57516ARETAINER, FRONT FLOOR REINFORCEMENT, FRONT
main57516-60010i200709-201201
5752HOLE PLUG
→ Go to FIG 57-52
58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR
main58102-60090i200709-201201
58111PAN, FRONT FLOOR
main58111-60A40i200709-200907
WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER&REARSEAT ENTERTAINMENT-WITH
main58111-60A41supersedes 58111-60A61i201012-201201
WITH(COOL BOX)
main58111-60A61supersedes 58111-60A41i201708-202104
WITHOUT(COOL BOX)
main58111-60B70supersedes 58111-60A41i201708-202104
REAR SEAT ENTERTAINMENT-WITH
main58111-60E00i201708-201908
WITHOUT(COOL BOX)&REAR SEAT ENTERTAINMENT-WITH
58119PLATE, FRONT FLOOR SIDE, FRONT
main58119-60070×2i201508-202104
58179BBRACKET, ACCELERATOR CABLE CLAMP
main58179-60020i200907-201201
9011506166
main90115-06166
9167480818
main91674-80818

20 parts on this diagram · 2 diagrams in section
