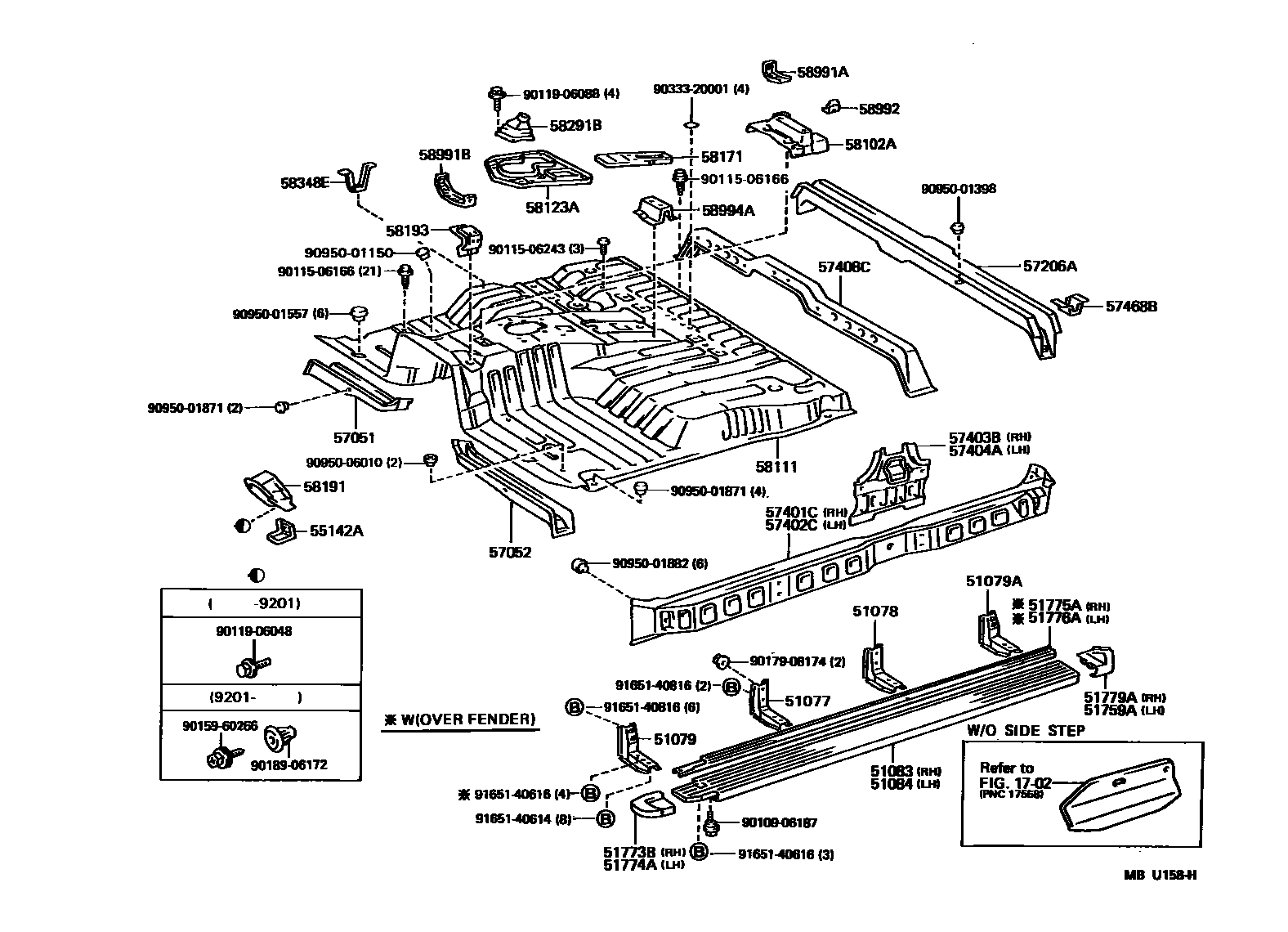

Toyota LAND CRUISER — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
1702EXHAUST PIPE
51077BRACKET SUB-ASSY, SIDE STEP, NO.2
51078BRACKET SUB-ASSY, SIDE STEP, NO.3
51079BRACKET SUB-ASSY, SIDE STEP
51079ABRACKET SUB-ASSY, SIDE STEP, NO.3
51759ACOVER, SIDE DOOR STEP PLATE, REAR LH
51773BCOVER, SIDE DOOR STEP PLATE, FRONT RH
51774ACOVER, SIDE DOOR STEP PLATE, FRONT LH
51775ACOVER, REAR STEP, RH
51776APLATE, SIDE STEP, LH
51779ACOVER, SIDE DOOR STEP PLATE, REAR RH
55142ABRACKET, FOOT REST MOUNTING, NO.2
57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57206AMEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2
57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57402CMEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57403BREINFORCE SUB-ASSY, FLOOR SIDE, INNER RH
57404AREINFORCE SUB-ASSY, FLOOR SIDE, INNER LH
57408CMEMBER SUB-ASSY, FRONT FLOOR CROSS
57468BBRACKET, FRONT SEAT, REAR
58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR
58111PAN, FRONT FLOOR
W(FRONT HEATER)
W(FRONT HEATER)
W(FRONT HEATER)
58123ASUPPORT, SHIFT & SELECT LEVER
58171REINFORCEMENT, PARKING BRAKE BASE
58191FOOTREST, FRONT FLOOR
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58291BBOOT, TRANSFER SHIFT LEVER
58348EBRACKET, REAR FLOOR HEAT INSULATOR, NO.3
58991ABRACKET, CONSOLE BOX MOUNTING, UPPER RH
58991BBRACKET, CONSOLE BOX MOUNTING, FRONT
58992BRACKET, CONSOLE BOX MOUNTING, UPPER LH
58994ABRACKET, CONSOLE BOX MOUNTING, NO.4
9010906187
main90109-06187
9011506166
main90115-06166
9011506243
main90115-06243
9011906048
main90119-06048
9011906088
main90119-06088
9015960266
main90159-60266
9017908174
main90179-08174
9018906172
main90189-06172
9033320001
main90333-20001
9095001150
main90950-01150
9095001398
main90950-01398
9095001557
main90950-01557
9095001871
main90950-01871
9095001882
main90950-01882
9095006010
main90950-06010
9165140614
main91651-40614
9165140616
main91651-40616
9165140816
main91651-40816
53 parts on this diagram · 1 diagram in section
FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota LAND CRUISER
This section contains 53 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota LAND CRUISER. Key components include: EXHAUST PIPE, BRACKET SUB-ASSY, SIDE STEP, NO.2, BRACKET SUB-ASSY, SIDE STEP, NO.3, BRACKET SUB-ASSY, SIDE STEP.
