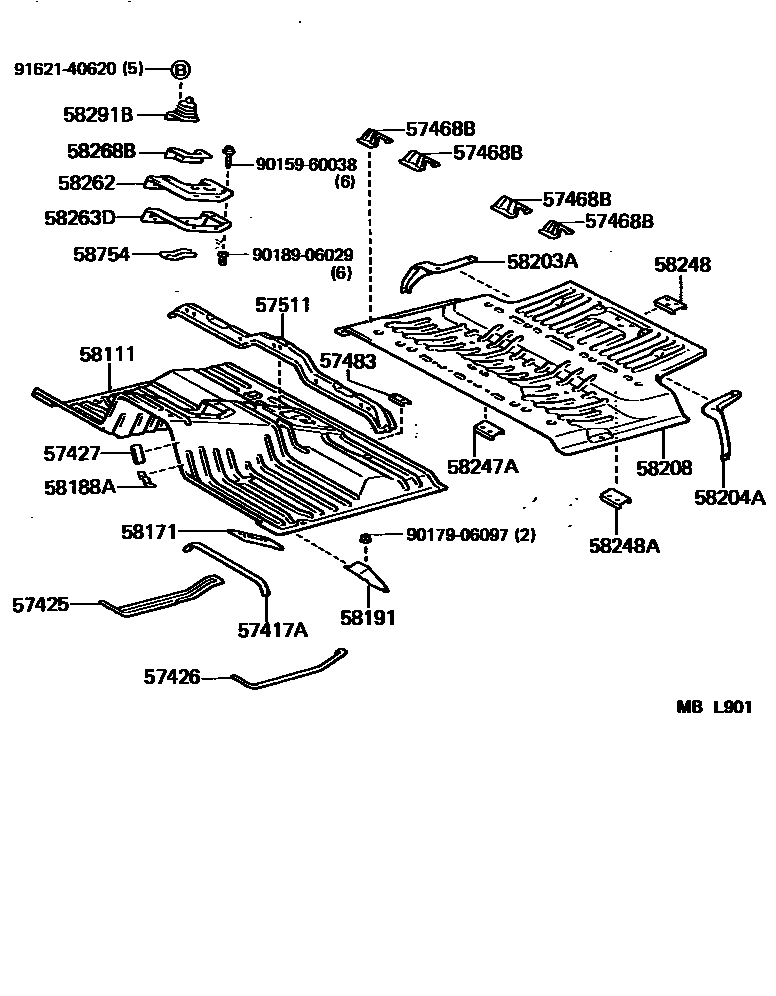

Toyota LAND CRUISER — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
57417AREINFORCEMENT, FRONT FLOOR UNDER
57425REINFORCEMENT, FRONT FLOOR, NO.2 RH
57426REINFORCEMENT, FRONT FLOOR, NO.2 LH
57427REINFORCEMENT, FRONT FLOOR TO BRACE
57468BBRACKET, FRONT SEAT, REAR
OUTER
INNER
57483RETAINER, DIFFERENTIAL LOCK LEVER SUPPORT
W(FRONT HEATER & DIFFERENTIAL LOCK)
57511REINFORCEMENT, FRONT FLOOR, CENTER
58111PAN, FRONT FLOOR
58171REINFORCEMENT, PARKING BRAKE BASE
58188ABRACKET, ACCELERATOR PEDAL STOPPER
58191FOOTREST, FRONT FLOOR
58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH
58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58208PAN, CENTER FLOOR
W(FRONT HEATER)
W(FRONT HEATER & DIFFERENTIAL LOCK)
W(DIFFERENTIAL LOCK)
58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58248REINFORCEMENT, REAR SEAT CUSHION LOCK
58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58262COVER, TRANSMISSION
58263DPACKING, TRANSMISSION COVER
58268BSEAL, TRANSFER LEVER BOOT
58754PLATE, ENGINE SERVICE COVER CATCH
9015960038
main90159-60038
9017906097
main90179-06097
9018906029
main90189-06029
9162140620
main91621-40620
26 parts on this diagram · 2 diagrams in section
FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota LAND CRUISER
This section contains 31 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota LAND CRUISER. Key components include: REINFORCEMENT, FRONT FLOOR UNDER, REINFORCEMENT, FRONT FLOOR, NO.2 RH, REINFORCEMENT, FRONT FLOOR, NO.2 LH, REINFORCEMENT, FRONT FLOOR TO BRACE, BRACKET, FRONT SEAT, REAR.
