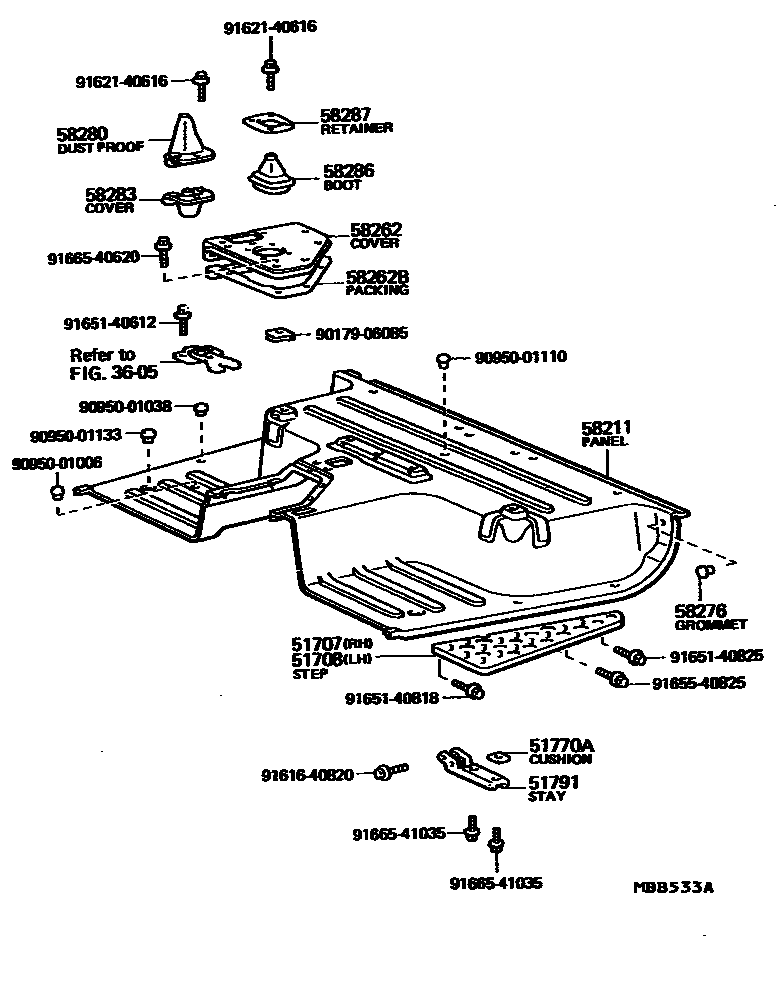

Toyota LAND CRUISER — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

Parts diagram

3605POWER TAKE-OFF LEVER & LINK

→ Go to FIG 36-05

51707STEP SUB-ASSY, RH

main51707-90304i198008-198410

51708STEP SUB-ASSY, LH

main51708-90304i198008-198410

51770ACUSHION(FOR STEP)

main52232-90300×2i198008-198410

51791STAY, STEP

main51701-90300×2i198008-198410

58211PANEL, FRONT FLOOR

main58101-90809i198008-198210

main58101-90828i198210-198309

main58101-90829i198210-198311

main58101-90842i198210-198311

W/INSULATOR

main58101-90882i198311-198410

main58201-90327i198008-198210

58262COVER, TRANSMISSION

main58261-90800i198210-198309

main58261-90801i198210-198410

main58262-90084i198008-198210

58262BPACKING, TRANSMISSION COVER

main58263-90300i198008-198210

main58263-90800i198210-198410

58276GROMMET, SAFETY BAND ANCHORAGE NUT

main58276-90300×4i198008-198410

58280DUST PROOF ASSY, TRANSFER CONTROL LEVER

main58280-90305i198008-198210

58283COVER, FRONT DRIVE DUST

main58288-90300i198008-198210

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58273-90300i198008-198210

main58280-90800i198210-198410

58287RETAINER, SHIFT LEVER BOOT

main58274-90300i198008-198210

9017906085

main90179-06085

9095001006

main90950-01006

9095001038

main90950-01038

9095001110

main90950-01110

9095001133

main90950-01133

9161640820

main91616-40820

9162140616

main91621-40616

9165140612

main91651-40612

9165140818

main91651-40818

9165140825

main91651-40825

9165540825

main91655-40825

9166540620

main91665-40620

9166541035

main91665-41035

26 parts on this diagram · 2 diagrams in section

FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota LAND CRUISER

This section contains 30 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota LAND CRUISER. Key components include: POWER TAKE-OFF LEVER & LINK, STEP SUB-ASSY, RH, STEP SUB-ASSY, LH, CUSHION(FOR STEP), STAY, STEP.
