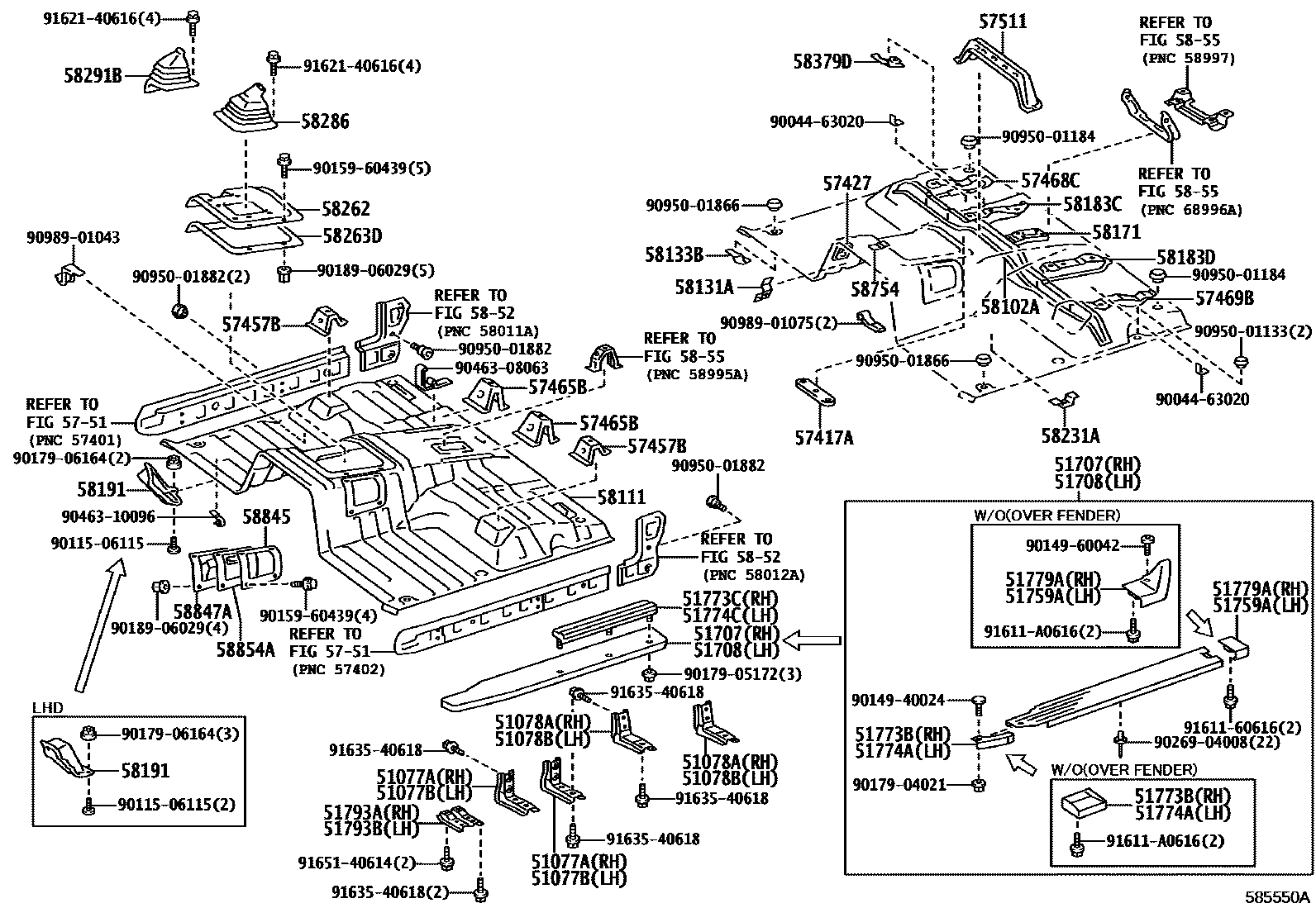

Toyota LAND CRUISER — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
51077ABRACKET SUB-ASSY, SIDE STEP, NO.2, RH
FRONT
main51783-60010iFZJ74..STD..GEN;FZJ71,78,79..LHD..GEN; FZJ79..GEN..IV;FZJ74..STD..GEN;FZJ71,78..LHD..GEN199908-200108
CHINA SPEC OR VENEZUELA SPEC OR COLOMBIA SPEC,REAR; REAR
51077BBRACKET SUB-ASSY, SIDE STEP, NO.2, LH
CHINA SPEC OR VENEZUELA SPEC OR COLOMBIA SPEC,FRONT
main51783-60010iFZJ74..STD..GEN;FZJ71,78,79..LHD..GEN; FZJ79..GEN..IV;FZJ74..STD..GEN;FZJ71,78..LHD..GEN199908-200108
CHINA SPEC OR VENEZUELA SPEC OR COLOMBIA SPEC,REAR; REAR
51078ABRACKET SUB-ASSY, SIDE STEP, NO.3, RH
51078BBRACKET SUB-ASSY, SIDE STEP, NO.3, LH
51707STEP SUB-ASSY, RH
FOR PAKISTAN GOVERNMENT
main51770-60020iFJ70,FZJ70,LJ70,72,PZJ70,RJ70..LHD..LX; LJ70,RJ70..RHD;RJ70..LHD..STD;FJ70,FZJ70,LJ72,PZJ70..STD..(GCC,GEN)199001-199305
CHROME PACKAGE
CHROME PACKAGE
CHROME PACKAGE & W(WIDE TIRE); W(*0F)
W(OVER FENDER)
CHROME PACKAGE
CHROME PACKAGE
CHROME PACKAGE & W(WIDE TIRE); W(*OF)
W(*OF)
51708STEP SUB-ASSY, LH
W/O CHROME PACKAGE
FOR PAKISTAN GOVERNMENT
CHROME PACKAGE
CHROME PACKAGE
W(265/70R16 TIRE & 7JJ ALUMINUM WHEEL)
W(WIDE TIRE)
CHROME PACKAGE
CHROME PACKAGE
CHROME PACKAGE & W(WIDE TIRE); W(*OF)
W(*OF)
51759ACOVER, SIDE DOOR STEP PLATE, REAR LH
CHROME PACKAGE
CHROME PACKAGE & W(WIDE TIRE); W(OVER FENDER)
W(WIDE TIRE)
51773BCOVER, SIDE DOOR STEP PLATE, FRONT RH
CHROME PACKAGE & W(WIDE TIRE); W(OVER FENDER)
51773CCOVER, STEP PLATE, RH
NO PAINT REQ.
51774ACOVER, SIDE DOOR STEP PLATE, FRONT LH
CHROME PACKAGE
CHROME PACKAGE & W(WIDE TIRE); W(OVER FENDER)
51774CCOVER, STEP PLATE, LH
NO PAINT REQ.
51779ACOVER, SIDE DOOR STEP PLATE, REAR RH
main51779-60020iLJ70,RJ70..RHD;RJ70..LHD..STD;FJ70,FZJ70,LJ72,PZJ70..STD..(GCC,GEN); LJ79,RJ77;FJ70,FZJ70,LJ70,72,77,PZJ70,RJ70..LX..(GCC,GEN)199001-199305
CHROME PACKAGE
CHROME PACKAGE & W(WIDE TIRE); W(OVER FENDER)
W(WIDE TIRE)
51793ABRACKET, SIDE STEP, NO.1 RH
main51793-90K00iFZJ71,78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ79..STD..CBU;FZJ71,78..RHD..GEN;FZJ74,HDJ7#,HZJ71,78..STD199908-200701
51793BBRACKET, SIDE STEP, NO.1, LH
main51793-60030iLJ79,RJ77;FJ7#,FZJ7#,HZJ75,LJ70,72,77,PZJ70,RJ70..LX..(GCC,GEN); RJ70..LHD..STD;FJ73,HZJ73,LJ70,PZJ73,RJ70..RHD;FJ7#,FZJ7#,HZJ75,LJ72,PZJ70,75..STD..(GCC,GEN)199001-199305
CHROME PACKAGE
main51793-90K00iFZJ75..LX..EFI;RJ70..LHD..STD;HZJ75..STD..GCC;HZJ75..ARL,GEN,SA;FJ73,HZJ73,LJ70,PZJ73,RJ70..RHD;FJ7#,FZJ7#,HJ75,HZJ70,LJ72,PZJ70,75..STD199001-199305
57417AREINFORCEMENT, FRONT FLOOR UNDER
W(*SUS)
57427REINFORCEMENT, FRONT FLOOR TO BRACE
57457BBRACKET, FRONT SEAT, FRONT
main57457-90K00iFJ70,73,FZJ70,73,HZJ70,73,LJ7#,PZJ70,73,RJ7#; FJ70..LX..GEN;FZJ70,LJ7#,PZJ70,RJ7#..LX..(GCC,GEN)199001-199305
W(FRONT BENCH *SUS)
57465BBRACKET, FRONT SEAT, INNER
main57465-90K00iFJ70,73,FZJ70,73,HZJ70,73,LJ7#,PZJ70,73,RJ7#; FJ70..LX..GEN;FZJ70,LJ7#,PZJ70,RJ7#..LX..(GCC,GEN)199001-199305
W(FRONT BENCH *SUS)
57468CBRACKET, FRONT SEAT, OUTSIDE, RH
57469BBRACKET, FRONT SEAT, OUTSIDE LH
5751FLOOR MEMBER
57511REINFORCEMENT, FRONT FLOOR, CENTER
W(FRONT SEPARATE SEAT)
W(FRONT SEPARATE SEAT)
W(*SUS)
58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR
58111PAN, FRONT FLOOR
W(*MW)
W(*MW)
W(*MW)
W(*MW)
W(REAR HEATER)
W(*MW & FRONT BENCH SEAT)
W(*MW)
W(FRONT BENCH SEAT)
W(*MW & FRONT BENCH SEAT); W(*MW)
W(*MW & FRONT BENCH SEAT); W(*MW)
W(*MW & FRONT BENCH SEAT)
W(*MW)
W(*MW & FRONT BENCH SEAT)
W(*MW & FRONT BENCH SEAT)
W(FRONT BENCH SEAT)
W(FRONT BENCH SEAT)
W(FRONT BENCH SEAT)
W(REAR HEATER)
W(REAR HEATER)
W(REAR HEATER)
W(REAR HEATER)
W(FRONT BENCH SEAT)
W(FRONT BENCH SEAT)
W(SEPARATE SEAT)
W(SEPARATE SEAT)
W(FRONT BENCH SEAT)
W(FRONT BENCH SEAT)
W(SEPARATE SEAT)
W(SEPARATE SEAT)
BANGLADESH SPEC
BANGLADESH SPEC
BANGLADESH SPEC & W(FRONT BENCH SEAT)
BANGLADESH SPEC & W(FRONT BENCH SEAT)
W(REAR HEATER)
W(*MW)
W(*MW & REAR HEATER)
W(*MW & REAR HEATER)
W(REAR HEATER)
W(*MW)
W(*MW)
W(*MW)
W(*MW)
W(*MW)
58131ABRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58133BBRACKET, FRONT FLOOR HEAT INSULATOR, NO.3
58171REINFORCEMENT, PARKING BRAKE BASE
58183CBRACKET, FRONT SEAT MOUNTING, INSIDE RH
58183DBRACKET, FRONT SEAT MOUNTING, INSIDE LH
58191FOOTREST, FRONT FLOOR
main58190-60060iHZJ79..ARL..IV;HZJ78..RHD..STD;FZJ71,HDJ7#,HZJ71..RHD;FZJ78,79,HZJ79..RHD..GEN199908-200701
FOR PAKISTAN GOVERNMENT
58231ABRACKET, CENTER FLOOR HEAT INSULATOR, NO.1
58262COVER, TRANSMISSION
58263DPACKING, TRANSMISSION COVER
58286BOOT, SHIFT & SELECT LEVER, NO.1
FOR PAKISTAN GOVERNMENT
58291BBOOT, TRANSFER SHIFT LEVER
58379DBRACKET, HEATER HOSE CLAMP
5852REAR FLOOR PANEL & REAR FLOOR MEMBER
5855CONSOLE BOX & BRACKET
58754PLATE, ENGINE SERVICE COVER CATCH
58845RETAINER, WINCH LEVER BOOT
58847ASEAL, WINCH LEVER
58854ABOOT, WINCH LEVER
9004463020
main90044-63020
9011506115
main90115-06115
9014940024
main90149-40024
9014960042
main90149-60042
9015960439
main90159-60439
9017904021
main90179-04021
9017905172
main90179-05172
9017906164
main90179-06164
9018906029
main90189-06029
9026904008
main90269-04008
9046308063
main90463-08063
9046310096
main90463-10096
9095001133
main90950-01133
9095001184
main90950-01184
9095001866
main90950-01866
9095001882
main90950-01882
9098901043
main90989-01043
9098901075
main90989-01075
9161160616
main91611-60616
91611A0616
main91611-A0616
9162140616
main91621-40616
9163540618
main91635-40618
9165140614
main91651-40614
65 parts on this diagram · 4 diagrams in section
FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota LAND CRUISER
This section contains 87 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota LAND CRUISER. Key components include: BRACKET SUB-ASSY, SIDE STEP, NO.2, RH, BRACKET SUB-ASSY, SIDE STEP, NO.2, LH, BRACKET SUB-ASSY, SIDE STEP, NO.3, RH, BRACKET SUB-ASSY, SIDE STEP, NO.3, LH, STEP SUB-ASSY, RH.
