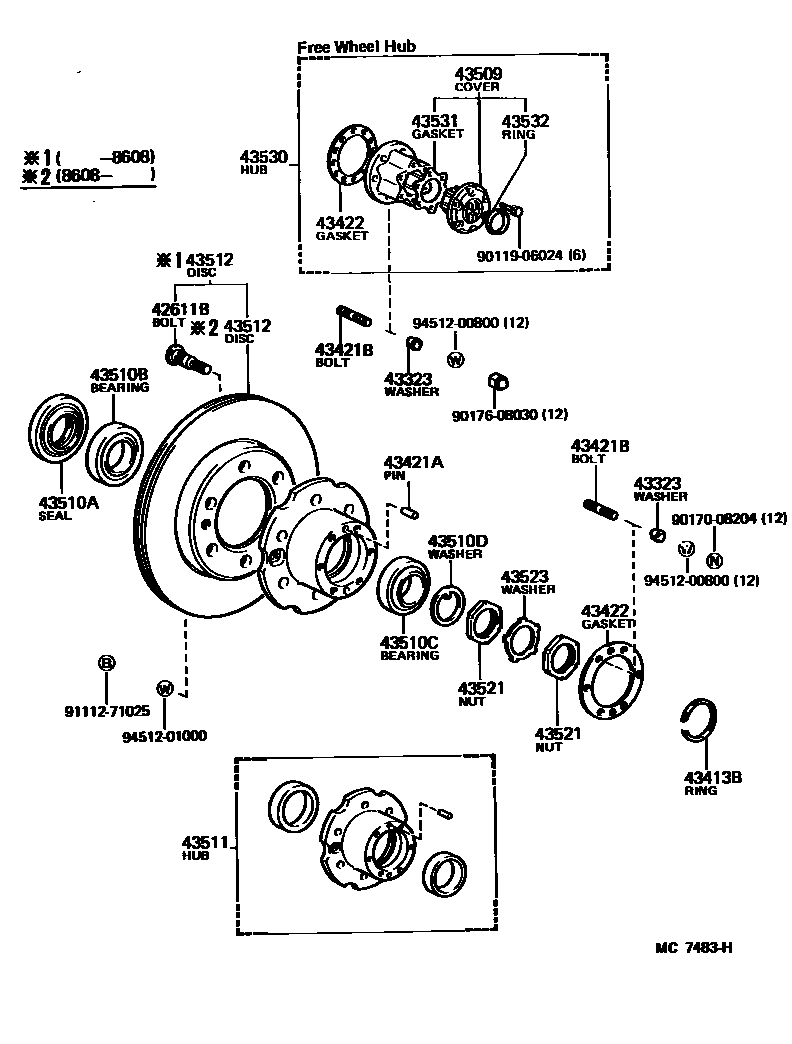

Toyota LAND CRUISER — FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02044×12i198008-198411

main90942-02053×12i198411-198708

43323WASHER, CONE (FOR FRONT AXLE SHAFT)

main42323-60010×12i198008-198708

43413BRING, DRIVE SHAFT SNAP

main90520-31001×2i198008-198708

43421APIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE)

main90250-07057×4i198008-198708

43421BBOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE)

main90116-08325×12i198008-198708

43422GASKET, FRONT AXLE OUTER SHAFT FLANGE

main43422-60010×2i198008-198411

main43422-60020×2i198411-198504

43509COVER SUB-ASSY, FREE WHEEL HUB

main43509-60013×2i198008-198110

main43509-60015×2i198110-198708

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-62001×2i198008-198708

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-49084×2i198008-198708

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-45087×2i198008-198708

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-42030×2i198008-198708

43511HUB, FRONT AXLE

main43502-60020×2i198008-198708

43512DISC, FRONT

main43512-60040×2i198608-198708

main43512-69015×2i198008-198411

main43512-69016×2i198411-198608

43521NUT, FRONT WHEEL ADJUSTING

main43521-60011×4i198008-198708

43523WASHER, FRONT WHEEL ADJUSTING LOCK

main90215-42025×2i198008-198708

43530HUB ASSY, FREE WHEEL

main43530-69016×2i198008-198110

main43530-69017×2i198110-198411

main43530-69045×2i198411-198504

43531GASKET, FREE WHEEL HUB

main43531-60010×2i198008-198708

43532RING, FREE WHEEL HUB

main43532-60010i198110-198708

9011906024

main90119-06024

9017008204

main90170-08204

9017608030

main90176-08030

9111271025

main91112-71025

9451200800

main94512-00800

9451201000

main94512-01000

24 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota LAND CRUISER

This section contains 24 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota LAND CRUISER. Key components include: BOLT, HUB (FOR FRONT AXLE), WASHER, CONE (FOR FRONT AXLE SHAFT), RING, DRIVE SHAFT SNAP, PIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE), BOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE).
