Toyota LAND CRUISER — ELECTRONIC DIESEL INJECTION CONTROL SYSTEM

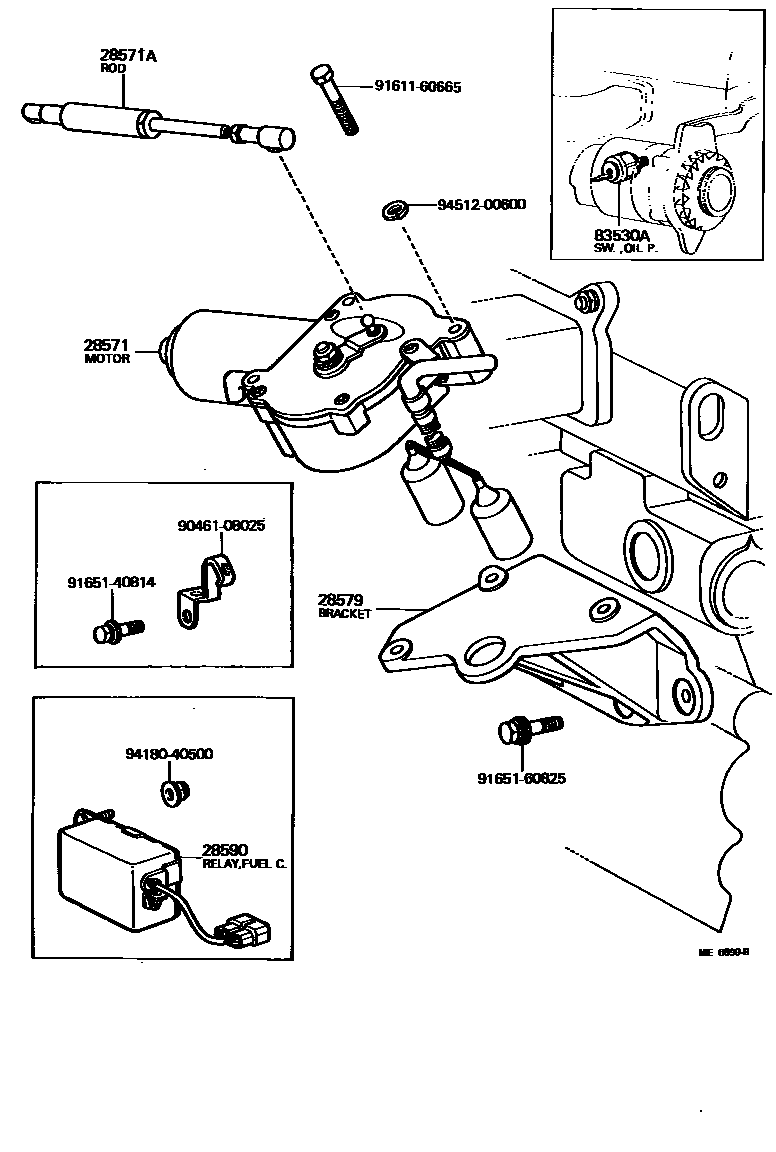

Parts diagram

28571MOTOR, FUEL CONTROL

main28571-56050i197803-198007

28571AROD, FUEL CONTROL MOTOR

main84580-36021i197803-198007

28579BRACKET, FUEL CONTROL MOTOR

main28579-56030i197803-198007

28590RELAY ASSY, FUEL CONTROL

main28590-56070i197803-198007

83530ASWITCH ASSY, OIL PRESSURE

main83530-14010i197803-198007

9046108025

main90461-08025

9161160665

main91611-60665

9165140814

main91651-40814

9165160825

main91651-60825

9418040500

main94180-40500

9451200600

main94512-00600

11 parts on this diagram · 1 diagram in section

ELECTRONIC DIESEL INJECTION CONTROL SYSTEM for Toyota LAND CRUISER

This section contains 11 genuine Toyota parts for the ELECTRONIC DIESEL INJECTION CONTROL SYSTEM system of the Toyota LAND CRUISER. Key components include: MOTOR, FUEL CONTROL, ROD, FUEL CONTROL MOTOR, BRACKET, FUEL CONTROL MOTOR, RELAY ASSY, FUEL CONTROL, SWITCH ASSY, OIL PRESSURE.
