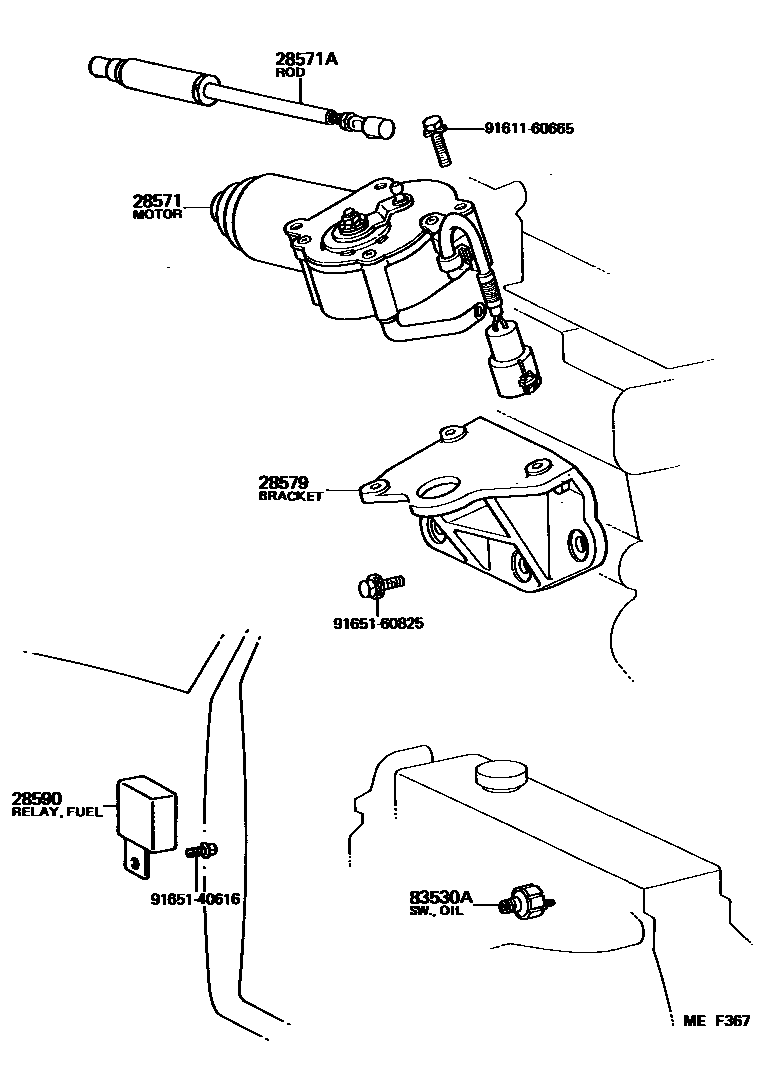

Toyota LAND CRUISER — ELECTRONIC DIESEL INJECTION CONTROL SYSTEM

28571MOTOR, FUEL CONTROL

main28571-56120i198411-198510

main28571-56130i198510-198707

28571AROD, FUEL CONTROL MOTOR

main84580-36021i198411-198707

28579BRACKET, FUEL CONTROL MOTOR

main28579-56030i198411-198707

28590RELAY ASSY, FUEL CONTROL

main28590-56090i198411-198510

main28590-56100i198510-198707

83530ASWITCH ASSY, OIL PRESSURE

main83530-14010i198411-198601

main83530-14030i198601-198707

9161160665

main91611-60665

9165140616

main91651-40616

9165160825

main91651-60825

8 parts on this diagram · 1 diagram in section

ELECTRONIC DIESEL INJECTION CONTROL SYSTEM for Toyota LAND CRUISER

This section contains 8 genuine Toyota parts for the ELECTRONIC DIESEL INJECTION CONTROL SYSTEM system of the Toyota LAND CRUISER. Key components include: MOTOR, FUEL CONTROL, ROD, FUEL CONTROL MOTOR, BRACKET, FUEL CONTROL MOTOR, RELAY ASSY, FUEL CONTROL, SWITCH ASSY, OIL PRESSURE.
