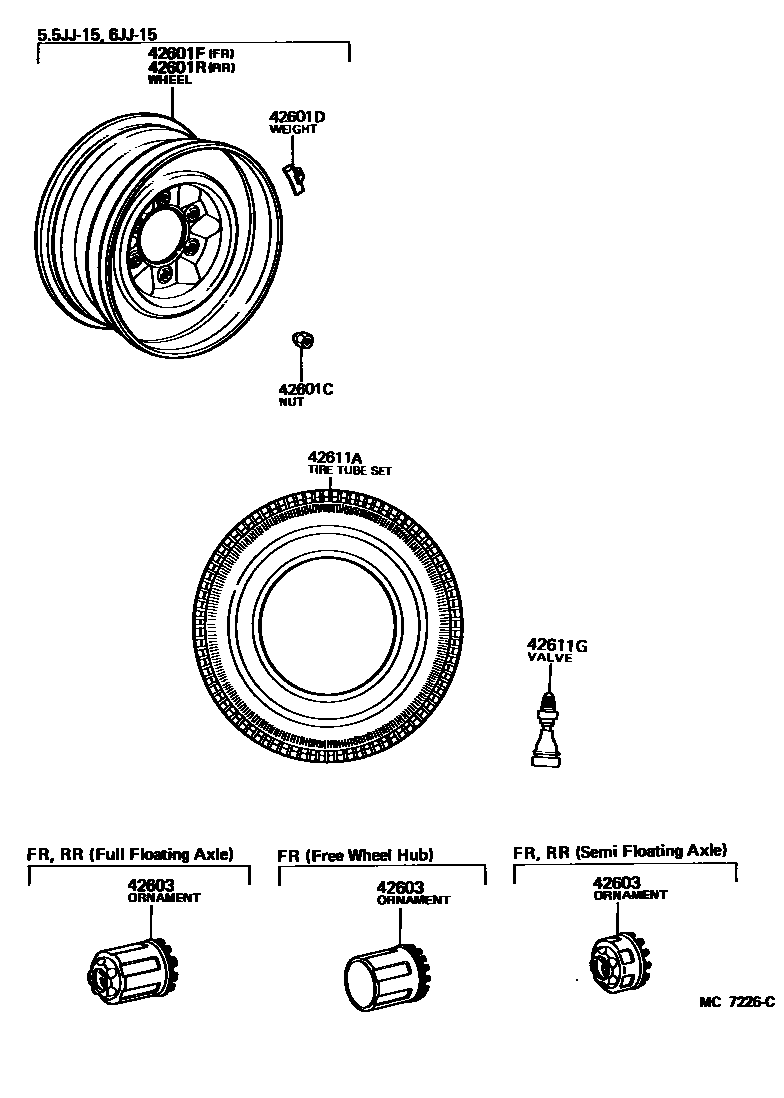

Toyota LAND CRUISER — DISC WHEEL & WHEEL CAP
42601CNUT, HUB (FOR AXLE)
CAP NUT
CAP NUT
42601DWEIGHT, BALANCE (FOR DISC WHEEL)
20G,T=10,20G
30G,T=9.3,30G
40G,T=9.3,40G
50G,T=9.3,50G
60G,T=9.3,60G
70G,T=9.3,70G
80G,T=9.3,80G
100G,100G
10G,T=8,10G
42601FWHEEL, DISC (FOR FRONT)
5.5JJ-15
15X6JJ,6JJ-15,WHITE,WHITE
6JJ-15,6JJ-15,CHROME PLATED
42601RWHEEL, DISC (FOR REAR)
5.5JJ-15
15X6JJ,6JJ-15,WHITE,WHITE
6JJ-15,6JJ-15,CHROME PLATED
42603ORNAMENT SUB-ASSY, WHEEL HUB
*STE,FR,W/*FWH,BLACK PAINTED
FR,W/*FWH & CHROME PLATED
RR,*FFA,W/WHITE WHEEL
RR,*FFA,W/WHITE WHEEL
RR,*SFA,W/CHROME WHEEL
RR,*FFA,W/CHROME WHEEL
RR,*FFA,W/CHROME WHEEL
FR,W/*FWH & WHITE WHEEL
FR,W/*FWH & CHROME WHEEL
RR,*SFA,W/WHITE WHEEL
RR,*SFA,W/WHITE WHEEL
RR,*SFA,W/CHROME WHEEL
RR,*SFA,W/CHROME WHEEL
RR,*SFA,W/CHROME WHEEL
42611ATIRE TUBE SET OR TUBELESS TIRE
H78-15-4,SNOW
HR78-15,BLACK
H78-15-4,SEMI LUG,*(D)
H78-15-4,SNOW
H78-15-4,SEMI LUG,*(Y)
H78-15-4,SEMI LUG,*(B)
42611GVALVE (FOR TUBELESS TIRE)
7 parts on this diagram · 1 diagram in section
DISC WHEEL & WHEEL CAP for Toyota LAND CRUISER
This section contains 7 genuine Toyota parts for the DISC WHEEL & WHEEL CAP system of the Toyota LAND CRUISER. Key components include: NUT, HUB (FOR AXLE), WEIGHT, BALANCE (FOR DISC WHEEL), WHEEL, DISC (FOR FRONT), WHEEL, DISC (FOR REAR), ORNAMENT SUB-ASSY, WHEEL HUB.
