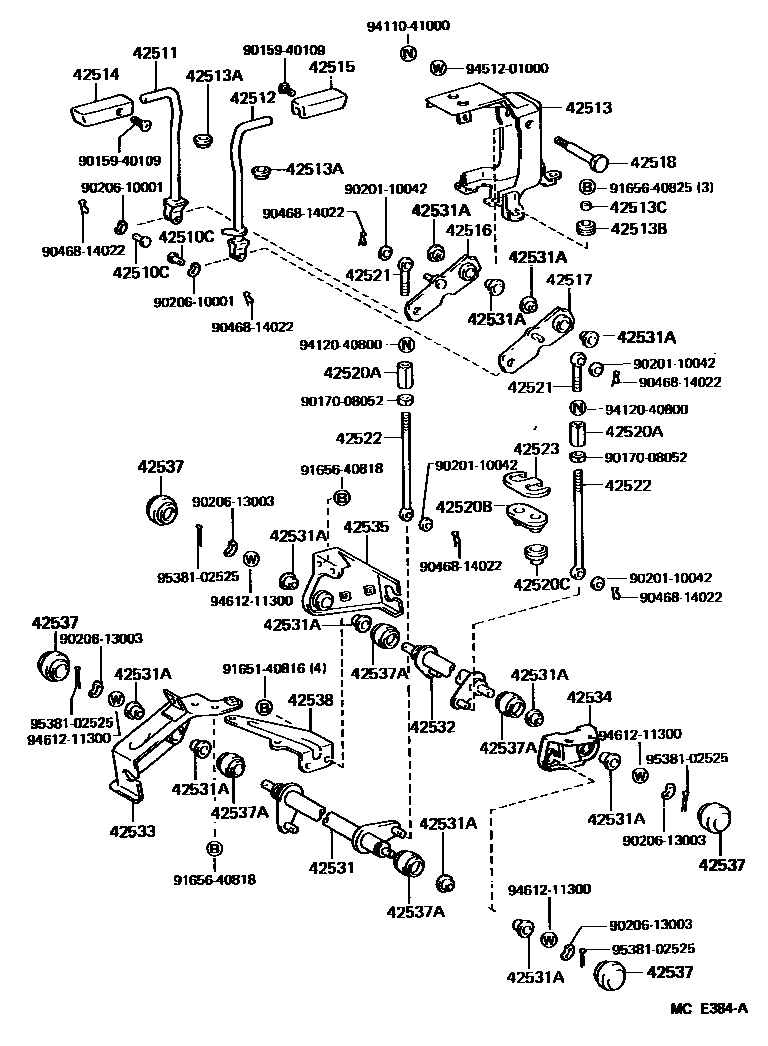

Toyota LAND CRUISER — DIFFERENTIAL LOCK CONTROL
42510CPIN, W/HOLE (FOR DIFFERENTIAL LOCK LEVER)
42511LEVER, DIFFERENTIAL LOCK, FRONT
42512LEVER, DIFFERENTIAL LOCK, REAR
42513BRACKET, DIFFERENTIAL LOCK
W(DIFFERENTIAL LOCK)
42513AGROMMET (FOR DIFFERENTIAL LOCK LEVER)
42513BGROMMET (FOR DIFFERENTIAL LOCK BRACKET)
42513CCOLLER (FOR DIFFERENTIAL LOCK BRACKET)
42514KNOB, DIFFERENTIAL LOCK, FRONT
42515KNOB, DIFFERENTIAL LOCK, REAR
42516LINK, DIFFERENTIAL LOCK, FRONT
42517LINK, DIFFERENTIAL LOCK, REAR
42518SHAFT, DIFFERENTIAL LOCK LINK
42520ATURN BUCKLE (FOR DIFFERENTIAL LOCK ROD)
42520BGROMMET (FOR DIFFERENTIAL LOCK ROD)
42520CGROMMET (FOR DIFFERENTIAL LOCK ROD)
42521ROD, DIFFERENTIAL LOCK, NO.1
42522ROD, DIFFERENTIAL LOCK, NO.2
42523COVER, DIFFERENTIAL LOCK GROMMET
42531SHAFT, DIFFERENTIAL LOCK CONTROL, FRONT
42531ABUSH (FOR DIFFERENTIAL LOCK CONTROL SHAFT)
W(DIFFERENTIAL LOCK)
42532SHAFT, DIFFERENTIAL LOCK CONTROL, REAR
42533BRACKET, DIFFERENTIAL LOCK CONTROL, FRONT NO.1
42534BRACKET, DIFFERENTIAL LOCK CONTROL, FRONT NO.2
42535BRACKET, DIFFERENTIAL LOCK CONTROL, REAR NO.1
42537COVER, CONTROL SHAFT DUST, NO.1
RH
LH
42537ACOVER, CONTROL SHAFT DUST, NO.2
42538STAY, CONTROL SHAFT BRACKET
9015940109
main90159-40109
9017008052
main90170-08052
9020110042
main90201-10042
9020610001
main90206-10001
9020613003
main90206-13003
9046814022
main90468-14022
9165140816
main91651-40816
9165640818
main91656-40818
9165640825
main91656-40825
9411041000
main94110-41000
9412040800
main94120-40800
9451201000
main94512-01000
9461211300
main94612-11300
9538102525
main95381-02525
41 parts on this diagram · 2 diagrams in section
DIFFERENTIAL LOCK CONTROL for Toyota LAND CRUISER
This section contains 54 genuine Toyota parts for the DIFFERENTIAL LOCK CONTROL system of the Toyota LAND CRUISER. Key components include: ROD SUB-ASSY, DIFFERENTIAL LOCK CABLE LINK, PIN, W/HOLE (FOR DIFFERENTIAL LOCK LEVER), LEVER, DIFFERENTIAL LOCK, FRONT, LEVER, DIFFERENTIAL LOCK, REAR, BRACKET, DIFFERENTIAL LOCK.
