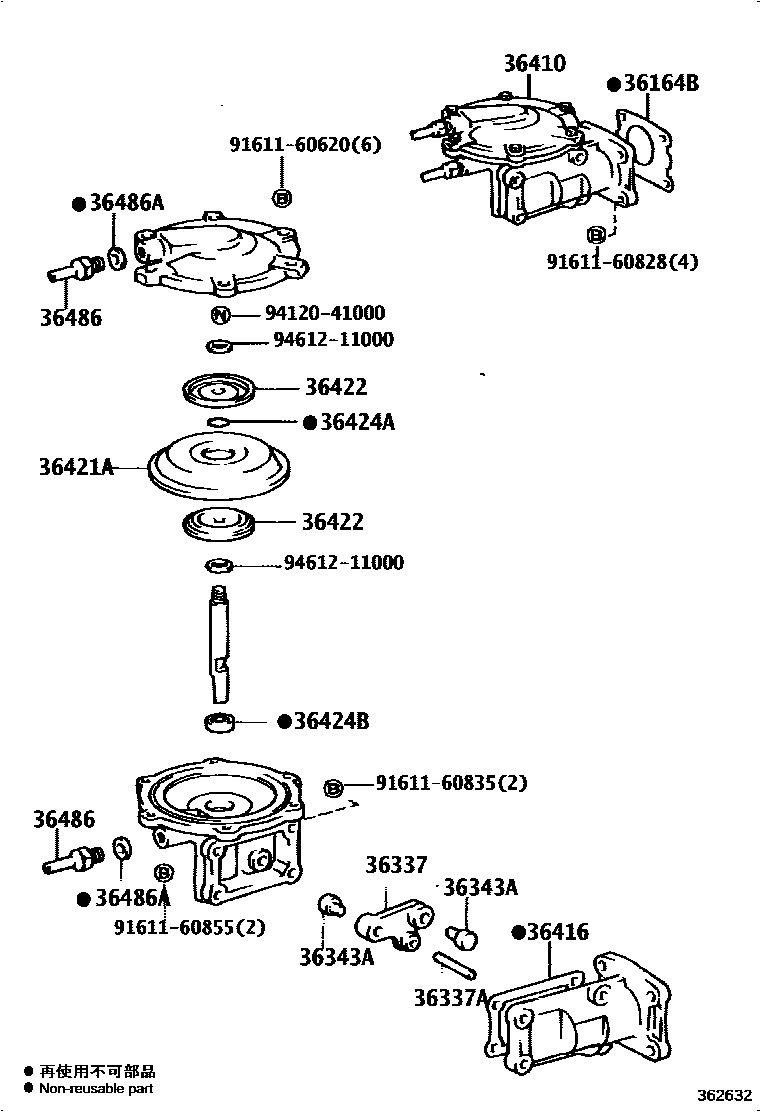

Toyota LAND CRUISER — DIAPHRAGM CYLINDER & TRANSFER VACUUM ACTUATOR

36164BGASKET, TRANSFER SHIFT SHAFT GUIDE

main36164-60040i201208-201608

TRANSFER & CENTER DIFFERENTIAL-BF1B 2-4SELECTOR&REAR WHEEL BRAKE-DISC FS14 18V

36337LEVER, FRONT DRIVE SHIFT LINK

main36337-60080i200701-200907

TRANSFER & CENTER DIFFERENTIAL-BF1B 2-4SELECTOR

36337APIN, STRAIGHT (FOR FRONT DRIVE SHIFT LINK LEVER)

main90250-08024i200701-200907

TRANSFER & CENTER DIFFERENTIAL-BF1B 2-4SELECTOR

36343ASHOE, FR DRIVE SHIFT LINK LEVER (FOR VACUUM MAGNET TYPE)

main36343-60010i202309

TRANSFER & CENTER DIFFERENTIAL-BF1B(MAGNET)2-4SELECTOR&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH(ACTIVE ELECTRIC TYPE),OD=18; TRANSFER & CENTER DIFFERENTIAL-BF1B(MAGNET)2-4SELECTOR&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH,OD=18; TRANSFER & CENTER DIFFERENTIAL-BF1B(MAGNET)2-4SELECTOR,OD=18

main36343-60040i202309

TRANSFER & CENTER DIFFERENTIAL-BF1B(MAGNET)2-4SELECTOR&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH(ACTIVE ELECTRIC TYPE),OD=12; TRANSFER & CENTER DIFFERENTIAL-BF1B(MAGNET)2-4SELECTOR&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH,OD=12; TRANSFER & CENTER DIFFERENTIAL-BF1B(MAGNET)2-4SELECTOR,OD=12

36410CYLINDER ASSY, DIAPHRAGM

main36410-60030i202309

TRANSFER & CENTER DIFFERENTIAL-BF1B(MAGNET)2-4SELECTOR; TRANSFER & CENTER DIFFERENTIAL-BF1B(MAGNET)2-4SELECTOR&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH; TRANSFER & CENTER DIFFERENTIAL-BF1B(MAGNET)2-4SELECTOR&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH(ACTIVE ELECTRIC TYPE)

36416GASKET, DIAPHRAGM CYLINDER

main36416-36010i202309

36421ADIAPHRAGM (FOR DIAPHRAGM CYLINDER)

main36421-36010i200701-200907

TRANSFER & CENTER DIFFERENTIAL-BF1B 2-4SELECTOR

36422PLATE, TRANSFER DIAPHRAGM

main36422-36010×2i200701-200907

TRANSFER & CENTER DIFFERENTIAL-BF1B 2-4SELECTOR

36424ARING, O (FOR DIAPHRAGM PUSH ROD)

main96711-19010i200701-200907

TRANSFER & CENTER DIFFERENTIAL-BF1B 2-4SELECTOR

36424BSEAL, TYPE T, OIL (FOR DIAPHRAGM PUSH ROD)

main90311-13066i200701-200907

TRANSFER & CENTER DIFFERENTIAL-BF1B 2-4SELECTOR

36486TUBE, SUCTION

main36486-60010×2i200701-200907

TRANSFER & CENTER DIFFERENTIAL-BF1B 2-4SELECTOR

36486AGASKET (FOR SUCTION TUBE)

main90430-10022×2i200701-200907

TRANSFER & CENTER DIFFERENTIAL-BF1B 2-4SELECTOR

9161160620

main91611-60620

9161160828

main91611-60828

9161160835

main91611-60835

9161160855

main91611-60855

9412041000

main94120-41000

9461211000

main94612-11000

18 parts on this diagram · 1 diagram in section

DIAPHRAGM CYLINDER & TRANSFER VACUUM ACTUATOR for Toyota LAND CRUISER

This section contains 18 genuine Toyota parts for the DIAPHRAGM CYLINDER & TRANSFER VACUUM ACTUATOR system of the Toyota LAND CRUISER. Key components include: GASKET, TRANSFER SHIFT SHAFT GUIDE, LEVER, FRONT DRIVE SHIFT LINK, PIN, STRAIGHT (FOR FRONT DRIVE SHIFT LINK LEVER), SHOE, FR DRIVE SHIFT LINK LEVER (FOR VACUUM MAGNET TYPE), CYLINDER ASSY, DIAPHRAGM.
