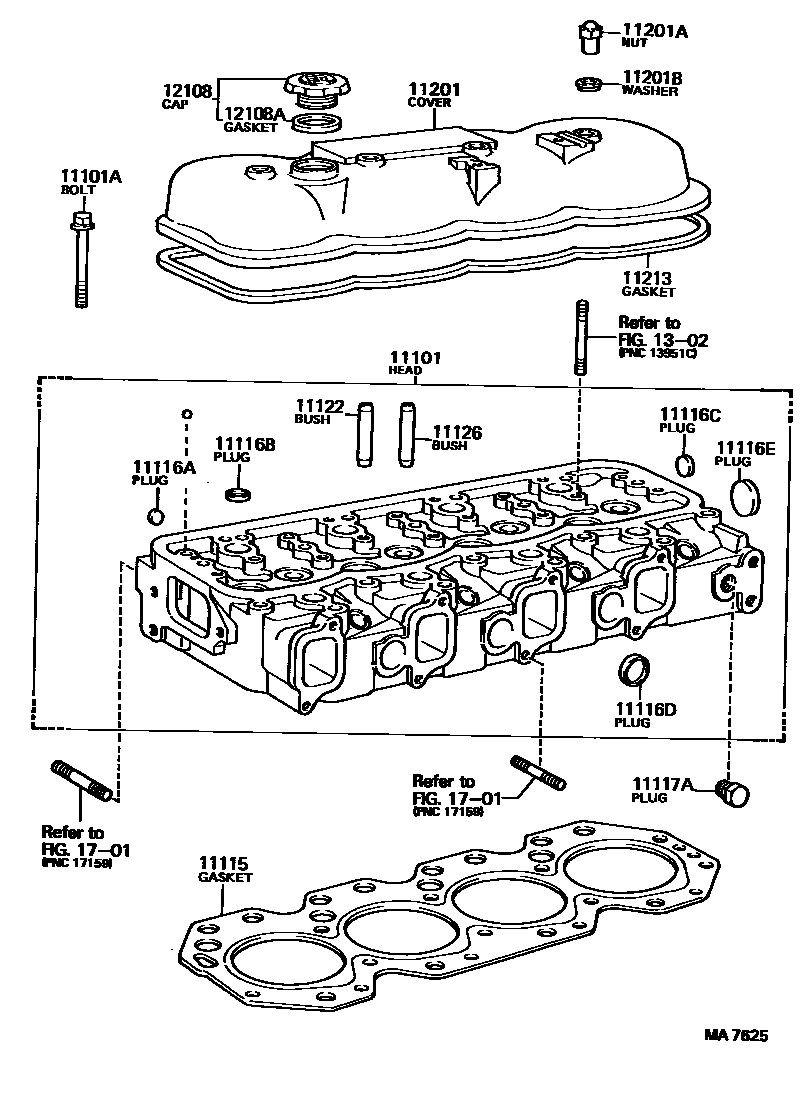

Toyota LAND CRUISER — CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
*12-1.25PX119-25
11115GASKET, CYLINDER HEAD
T=1.55
11116APLUG, TIGHT, NO.1
OD=12
OD=12
11116BPLUG, TIGHT, NO.2
OD=25
OD=25
11116CPLUG, TIGHT, NO.3
OD=21
11116DPLUG, TIGHT, NO.4
OD=28
OD=28
11116EPLUG, TIGHT, NO.5
OD=40
11117APLUG, W/HEAD TAPER SCREW, NO.1
11122BUSH, INTAKE VALVE GUIDE
STD
11126BUSH, EXHAUST VALVE GUIDE
STD
11201COVER SUB-ASSY, CYLINDER HEAD
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
1302CAMSHAFT & VALVE
1701MANIFOLD
19 parts on this diagram · 1 diagram in section
CYLINDER HEAD for Toyota LAND CRUISER
This section contains 19 genuine Toyota parts for the CYLINDER HEAD system of the Toyota LAND CRUISER. Key components include: HEAD SUB-ASSY, CYLINDER, BOLT(FOR CYLINDER HEAD SET), GASKET, CYLINDER HEAD, PLUG, TIGHT, NO.1, PLUG, TIGHT, NO.2.
