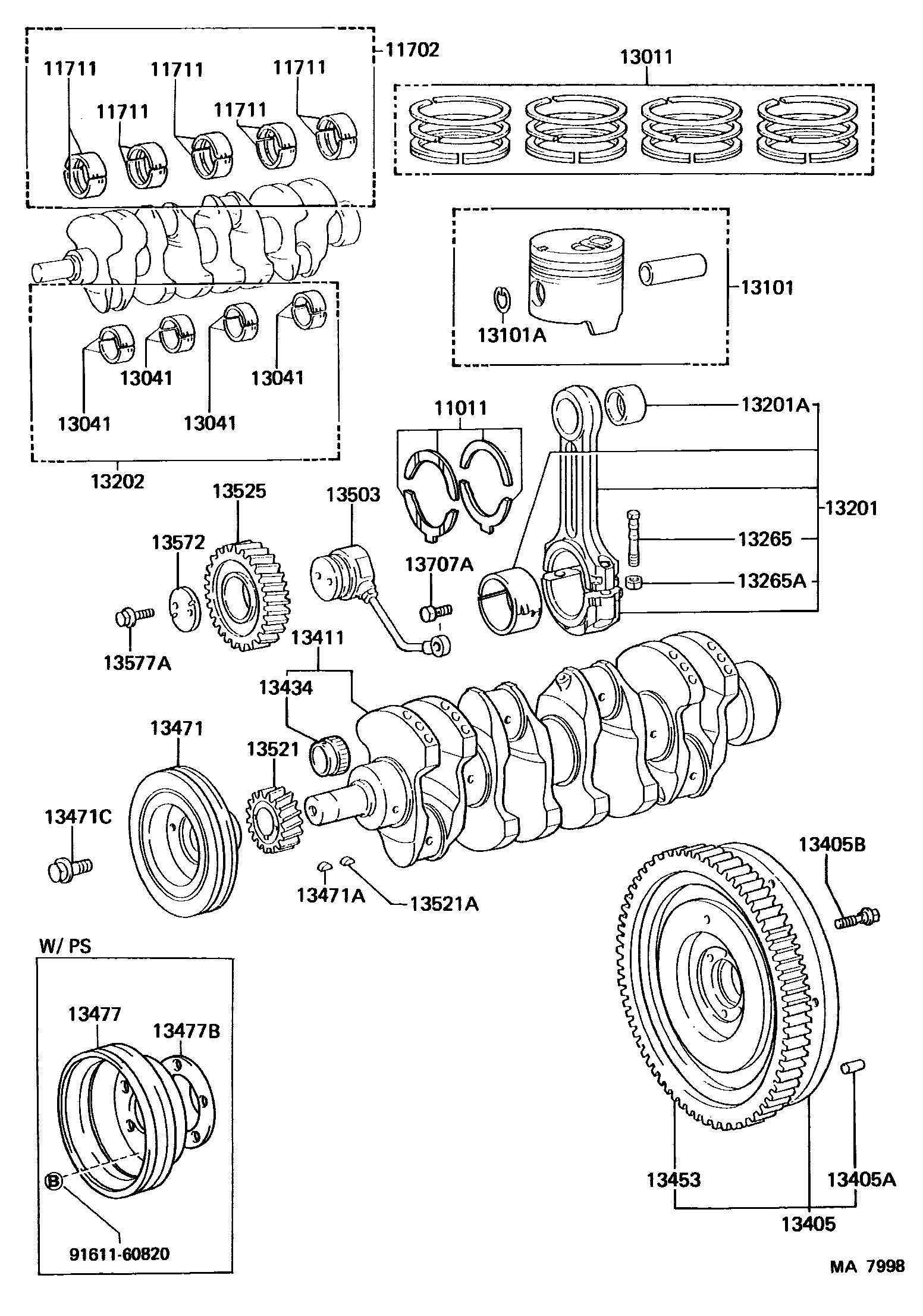

Toyota LAND CRUISER — CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD,STD
STD,STD
O/S 0.125,O/S 0.125
O/S 0.125,O/S 0.125
O/S 0.250,O/S 0.25
O/S 0.250,O/S 0.25
11702BEARING SET, CRANKSHAFT
U/S 0.25,U/S 0.25
U/S 0.50,U/S 0.50
U/S 1.00,U/S 1.00
11711BEARING, CRANKSHAFT
MARK"1",MARK 1
MARK"2",MARK 2
13011RING SET, PISTON
STD,STD
13041BEARING, CONNECTING ROD
MARK"1",MARK 1
MARK"2",MARK 2
13101PISTON SUB-ASSY, W/PIN
STD
STD
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13201ABUSH(FOR CONNECTING ROD SMALL END)
13202BEARING SET, CONNECTING ROD
U/S 0.25,U/S 0.25
U/S 0.50,U/S 0.50
U/S 1.00,U/S 1.00
13265BOLT, CONNECTING ROD
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=22,OD=10,L=22,OD=10
13405BBOLT, FLYWHEEL SETTING
*13-1.5PX30-20
13411CRANKSHAFT
13434SPLINE, OIL PUMP DRIVE
13453GEAR, FLYWHEEL RING
N=110
13471PULLEY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13477PULLEY, CRANKSHAFT, NO.2
W/POWER STEERING
13477BPLATE, CRANKSHAFT PULLEY, NO.2
W/POWER STEERING
13503SHAFT SUB-ASSY, IDLE GEAR
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13525GEAR, IDLE, NO.1
13572PLATE, IDLE GEAR THRUST
13577ABOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK)
13707AUNION(FOR OIL PIPE, NO.1)
9161160820
main91611-60820
31 parts on this diagram · 1 diagram in section
CRANKSHAFT & PISTON for Toyota LAND CRUISER
This section contains 31 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota LAND CRUISER. Key components include: WASHER SET, CRANKSHAFT THRUST, BEARING SET, CRANKSHAFT, BEARING, CRANKSHAFT, RING SET, PISTON, BEARING, CONNECTING ROD.
