Toyota LAND CRUISER — CONSOLE BOX & BRACKET

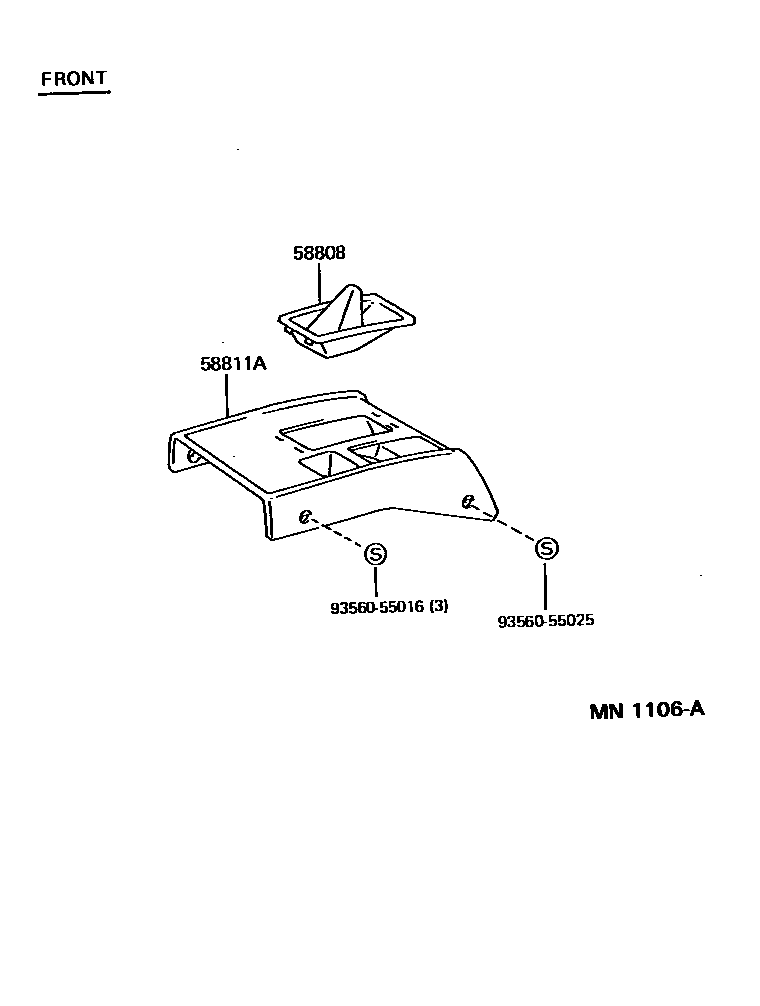

Parts diagram
58808COVER SUB-ASSY, SHIFTING HOLE
main58808-60010i199001-199501
main58808-60050-C0i199501-199801
BLACK,TRIM1#,4#
58811ABOX, CONSOLE, FRONT
main58811-60010-03i199001-199501
BLUISH GRAY,TRIM1#
main58811-60010-06i199001-199501
SABLE,TRIM4#
main58811-60090-B0i199501-199801
BLUISH GRAY,TRIM1#
main58811-60090-E0i199501-199801
OAK,TRIM4#
9356055016
main93560-55016
9356055025
main93560-55025

4 parts on this diagram · 3 diagrams in section

CONSOLE BOX & BRACKET for Toyota LAND CRUISER

This section contains 36 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota LAND CRUISER. Key components include: BRACKET, CONSOLE MOUNTING, NO.3, BRACKET, CONSOLE MOUNTING, NO.4, BRACKET, CONSOLE MOUNTING, NO.6, COVER, SPARE SWITCH HOLE, PANEL SUB-ASSY, CONSOLE, UPPER.
