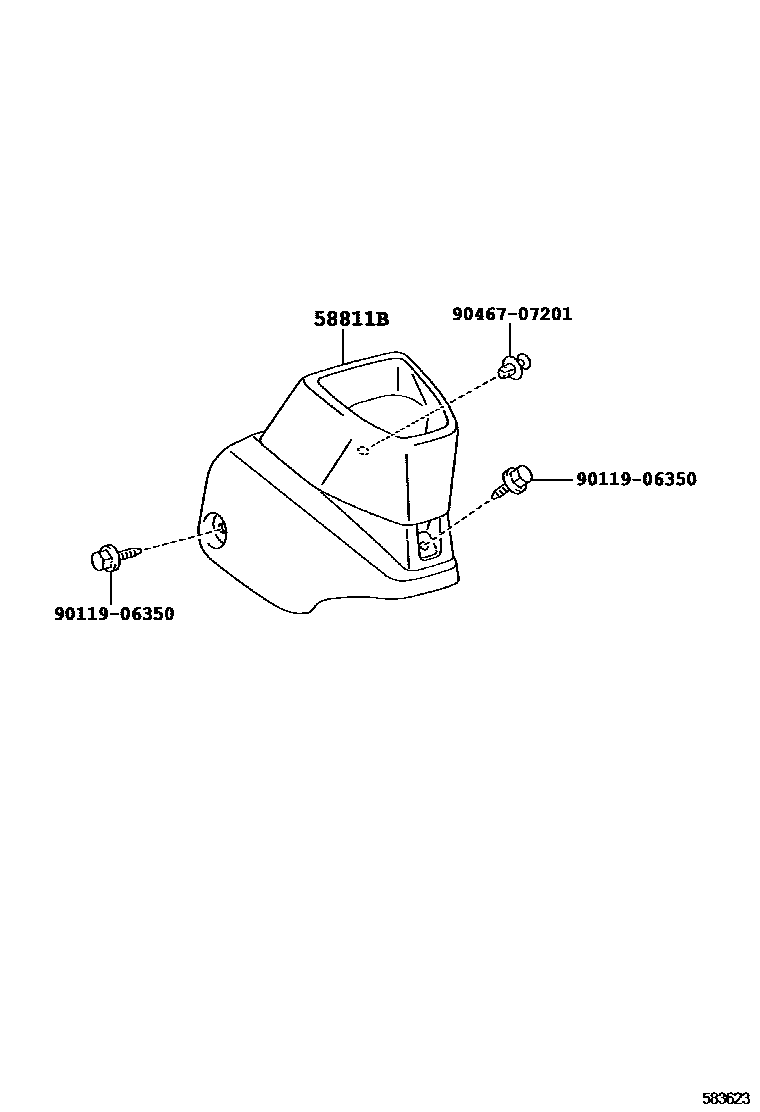

Toyota LAND CRUISER — CONSOLE BOX & BRACKET
58811BBOX, CONSOLE
BLUISH GRAY,TRIM1#; BOTTLE HOLDER-WITHOUT(FRONT(*DOP)) & WITH(REAR),BLUISH GRAY,TRIM1#; BOTTLE HOLDER-WITHOUT(FRONT(*DOP)),BLUISH GRAY,TRIM1#
main58802-60280-E0iGRJ71,76,HZJ76,78..HT..GCC; GRJ79,HZJ79..GCC; HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7#200907-201208
BOTTLE HOLDER-WITHOUT(FRONT(*DOP)) & WITH(REAR),OAK,TRIM4#; BOTTLE HOLDER-WITHOUT(FRONT(*DOP)),OAK,TRIM4#; OAK,TRIM4#
main58802-60290-C0iGRJ7#,VDJ7#..(DCB,HT)..GCC; GRJ71,HZJ71..SOT; GRJ79,VDJ79..PIC..GCC; HZJ76,79,VDJ79..RHD..CBU;HZJ79..LHD..PIC..GEN..CBU; HZJ79..IV;VDJ79..GCC;HZJ78..GEN;HZJ76,79..LHD..(DCB,HT)..GEN;GRJ7#,HZJ71,VDJ76,78..(DCB,HT,PIC)..(GCC,GEN)201608-202309
70TH PACKAGE(BLACK BUMPER),BLACK,TRIM1#,2#,4#; 70TH PACKAGE(BODY COLOR BUMPER) & PLATED,BLACK,TRIM1#,2#,4#; 70TH PACKAGE(BODY COLOR BUMPER),BLACK,TRIM1#,2#,4#; BLACK,TRIM1#; BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#; BOTTLE HOLDER-WITHOUT(FRONT(*DOP)) & WITH(REAR),BLACK,TRIM1#,4#; BOTTLE HOLDER-WITHOUT(FRONT(*DOP)),BLACK,TRIM1#,4#
BLACK,TRIM1#,2#
9011906350
main90119-06350
9046707201
main90467-07201
3 parts on this diagram · 8 diagrams in section
CONSOLE BOX & BRACKET for Toyota LAND CRUISER
This section contains 42 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota LAND CRUISER. Key components include: SHIFT LEVER & RETAINER, COVER, FLOOR CARPET, CENTER LH, BOX SUB-ASSY, CONSOLE, PANEL SUB-ASSY, CONSOLE, UPPER, COVER SUB-ASSY, SHIFTING HOLE.
