Toyota LAND CRUISER — CLUTCH & RELEASE FORK

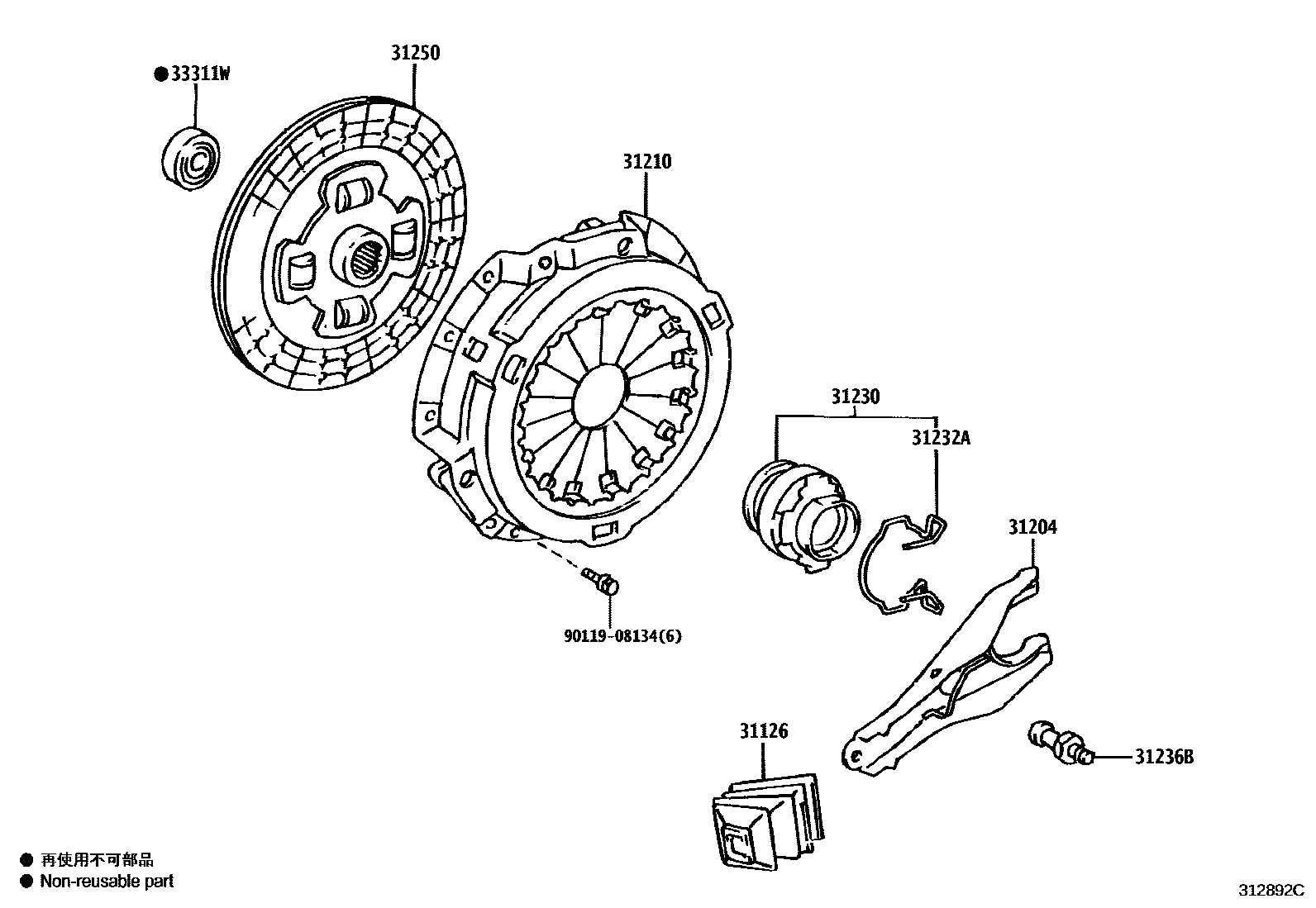

Parts diagram

31126BOOT, CLUTCH RELEASE FORK

main31126-60050i201608-202309

main31126-60090i200701-200907

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-35060i202309-202409

main31204-36110i200701-200907

main31204-60160i200907-201608

main31204-60180i202410

31210COVER ASSY, CLUTCH

main31210-36292i202309-202409

main31210-36330i202309

main31210-60260i200701-200907

main31210-60300i200701-201511

main31210-60340i202309

main31210-60360i202410

31230BEARING ASSY, CLUTCH RELEASE

main31230-60130i200701-200907

main31230-60190i200701-201608

main31230-60200i200701-201009

main31230-60201i201608-202309

31232ACLIP, RELEASE BEARING HUB

main31232-36020i200701-200907

main31232-60040i202309-202508

31236BSUPPORT, RELEASE FORK

main31236-35030i200701-200907

main31236-35050i202309-202409

main31236-60060i200701-201107

31250DISC ASSY, CLUTCH

main31250-60430i200701-201101

main31250-60431i201608-201612

main31250-60432i201802-202309

main31250-60440i200701-200907

main31250-60450i200701-201109

main31250-60451i201110-201608

main31250-60452i201808-202309

main31250-60490i202410

main31250-60530i200907-201608

main31250-60531i201802-202309

33311WBEARING (FOR INPUT SHAFT)

main90363-12002i201608-201807

main90363-12010i200701-201608

main90363-12024i201808-202309

main90363-15017i200701-200907

9011908134

main90119-08134

9 parts on this diagram · 4 diagrams in section

CLUTCH & RELEASE FORK for Toyota LAND CRUISER

This section contains 14 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota LAND CRUISER. Key components include: BOOT, CLUTCH RELEASE FORK, FORK SUB-ASSY, CLUTCH RELEASE, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE, RING, SNAP(FOR CLUTCH RELEASE HUB).
