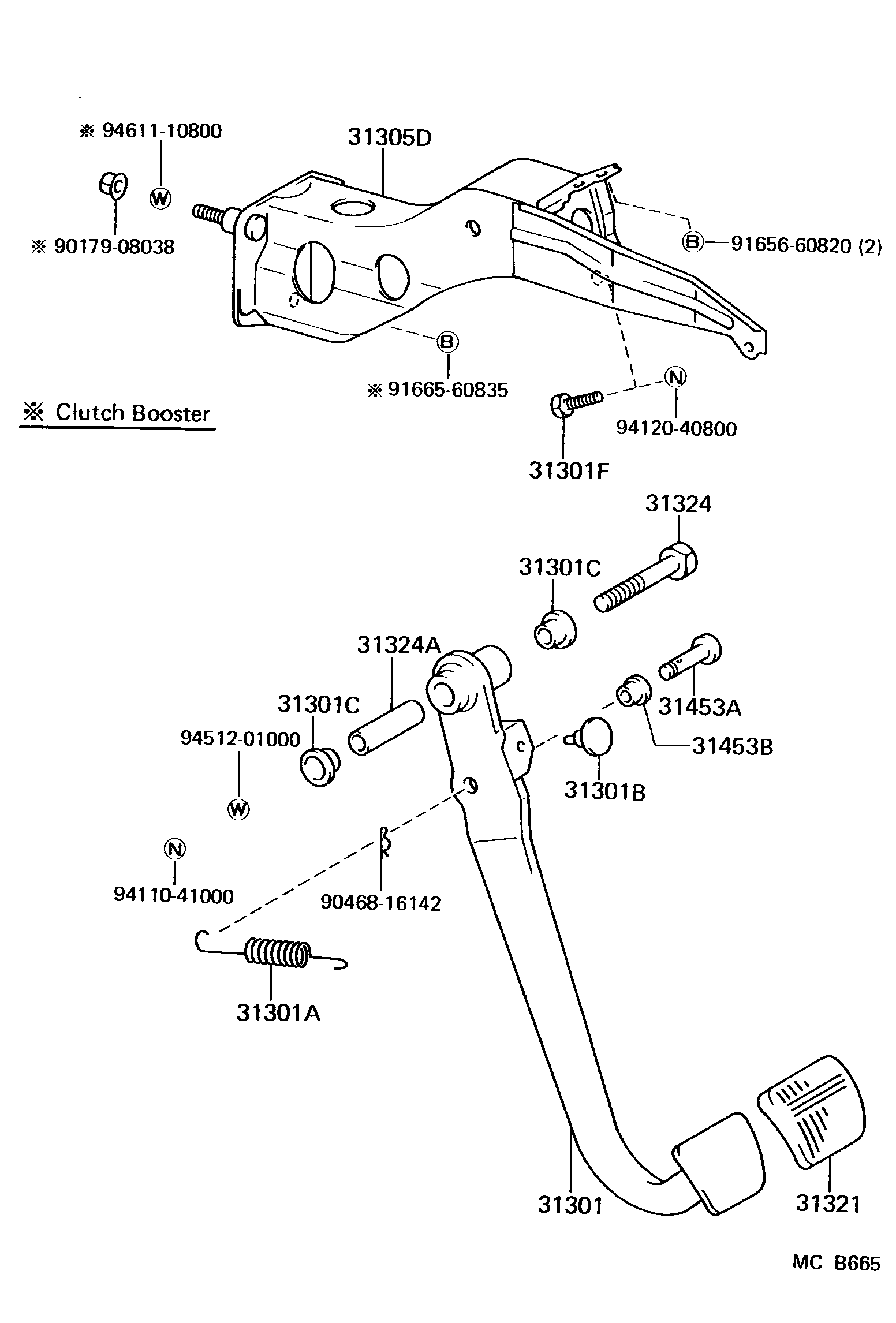

Toyota LAND CRUISER — CLUTCH PEDAL & FLEXIBLE HOSE

31301PEDAL SUB-ASSY, CLUTCH

main31301-60100i198411-198510

main31301-60101i198510-198707

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14015i198411-198707

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008i198411-198707

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13192×2i198411-198707

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main91131-50828i198411-198707

31305DSUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-90K01i198411-198707

31321PAD, CLUTCH PEDAL

main31321-14020i198411-198707

31324SHAFT, CLUTCH PEDAL

main91121-51070i198411-198707

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10004i198411-198707

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08018i198411-198707

L=29.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002i198411-198707

9017908038

main90179-08038

9046816142

main90468-16142

9165660820

main91656-60820

9166560835

main91665-60835

9411041000

main94110-41000

9412040800

main94120-40800

9451201000

main94512-01000

9461110800

main94611-10800

19 parts on this diagram · 2 diagrams in section

CLUTCH PEDAL & FLEXIBLE HOSE for Toyota LAND CRUISER

This section contains 25 genuine Toyota parts for the CLUTCH PEDAL & FLEXIBLE HOSE system of the Toyota LAND CRUISER. Key components include: PEDAL SUB-ASSY, CLUTCH, SPRING(FOR CLUTCH PEDAL), CUSHION, NO.1(FOR CLUTCH PEDAL), BUSH(FOR CLUTCH PEDAL), BOLT(FOR CLUTCH PEDAL STOPPER).
