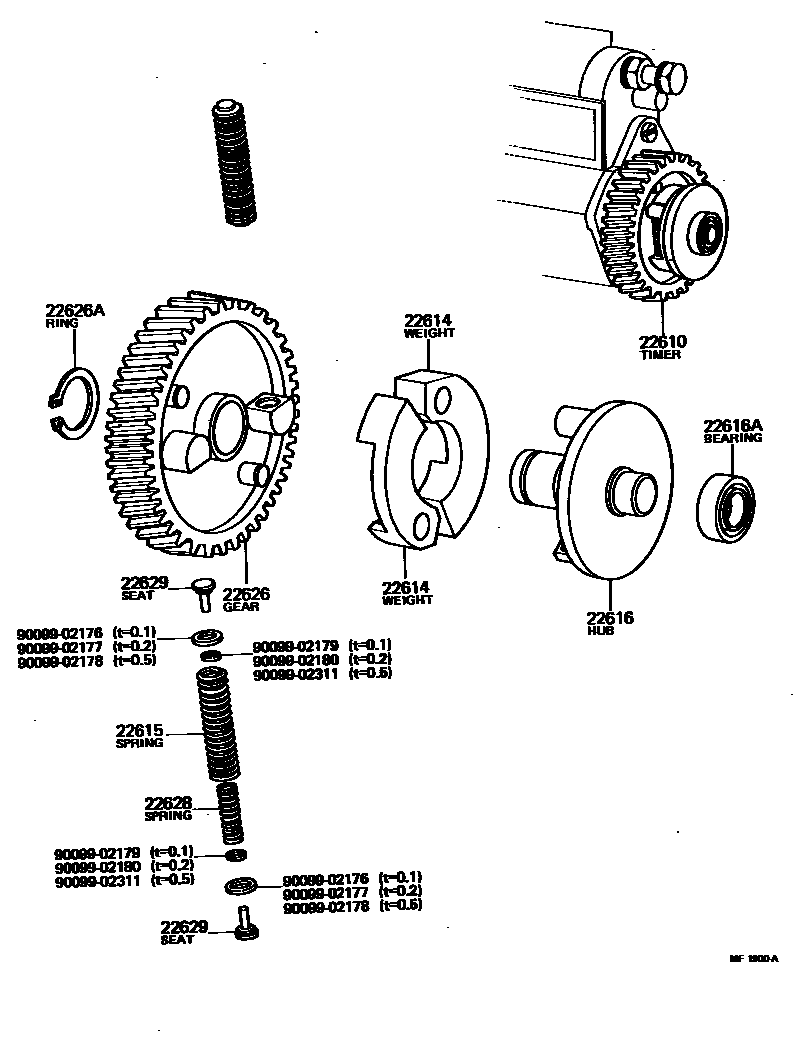

Toyota LAND CRUISER — AUTOMATIC TIMER

22610TIMER ASSY, AUTOMATIC

main22610-56020iB..BJ40197803-197907

main22610-56030iB..BJ40197907-198007

22614WEIGHT, TIMER

main22614-56020×2iB..BJ40197803-198007

22615SPRING, TIMER

main22615-56010×2iB..BJ40197803-198007

22616HUB, TIMER

main22616-56020iB..BJ40197803-198007

22616ABEARING(FOR TIMER HUB)

main90099-10018iB..BJ40197803-198007

22626GEAR, DRIVE

main22626-56020iB..BJ40197803-198007

22626ARING, CLAMP(FOR DRIVE GEAR)

main90096-90001iB..BJ40197803-198007

22628SPRING, TIMER SUB

main22628-56010×2iB..BJ40197803-198007

22629SEAT, SPRING(FOR TIMER SPRING)

main22629-47010×4iB..BJ40197803-198007

9009902176

main90099-02176

9009902177

main90099-02177

9009902178

main90099-02178

9009902179

main90099-02179

9009902180

main90099-02180

9009902311

main90099-02311

15 parts on this diagram · 1 diagram in section
