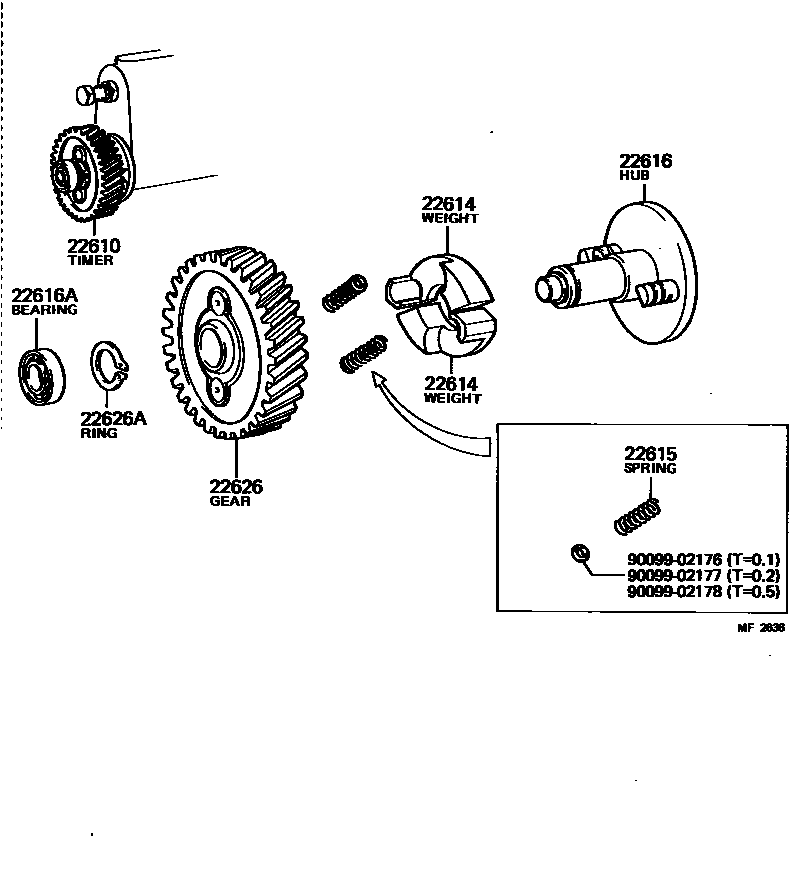

Toyota LAND CRUISER — AUTOMATIC TIMER

22610TIMER ASSY, AUTOMATIC

main22610-56040i3B..BJ42198008-198408

main22610-58010i3B..BJ42198408-198410

22614WEIGHT, TIMER

main22614-56020×2i3B..BJ42198008-198410

22615SPRING, TIMER

main22615-56040×2i3B..BJ42198008-198410

22616HUB, TIMER

main22616-56030i3B..BJ42198008-198410

22616ABEARING(FOR TIMER HUB)

main90099-10018i3B..BJ42198008-198410

22626GEAR, DRIVE

main22626-56030i3B..BJ42198008-198408

main22626-56050i3B..BJ42198408-198410

22626ARING, CLAMP(FOR DRIVE GEAR)

main90096-90001i3B..BJ42198008-198410

9009902176

main90099-02176

9009902177

main90099-02177

9009902178

main90099-02178

10 parts on this diagram · 1 diagram in section
