Toyota LAND CRUISER — ACCELERATOR LINK

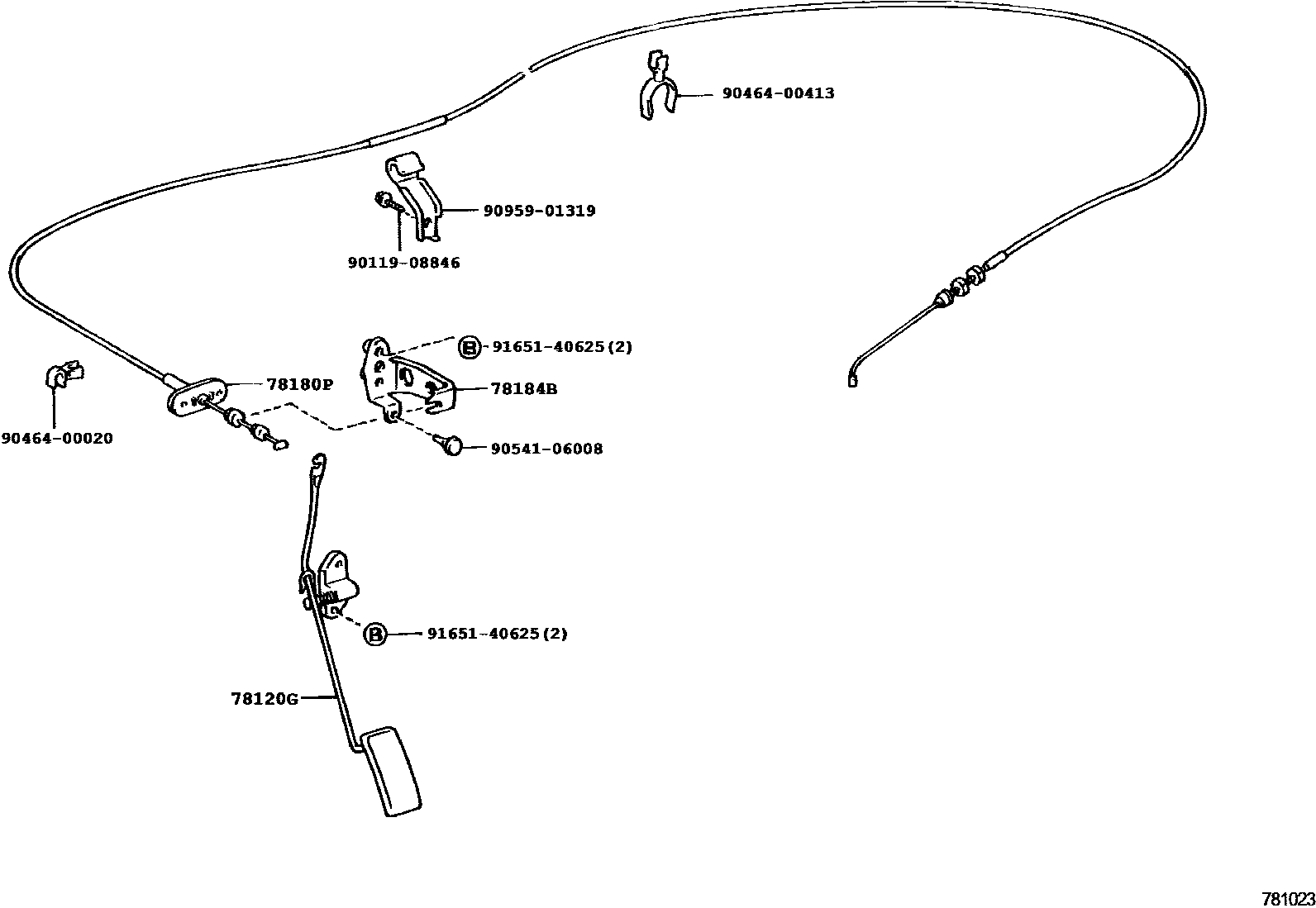

Parts diagram

78120GROD ASSY, ACCELERATOR PEDAL

main78120-60040i199001-199006

main78120-60080i199006-199208

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-60080i199001-199208

main78180-60090i199001-199208

W(*CRC)

main78180-60280i199208-199801

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-60030i199001-199208

9011908846

main90119-08846

9046400020

main90464-00020

9046400413

main90464-00413

9054106008

main90541-06008

9095901319

main90959-01319

9165140625

main91651-40625

9 parts on this diagram · 3 diagrams in section

ACCELERATOR LINK for Toyota LAND CRUISER

This section contains 30 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota LAND CRUISER. Key components include: LINK ASSY, ACCELERATOR, COVER, AUTO DRIVE ACCELERATOR LINK, BUSH (FOR ACCELERATOR LINK ROD), ROD ASSY, ACCELERATOR PEDAL, CABLE ASSY, ACCELERATOR AUTO DRIVE.
