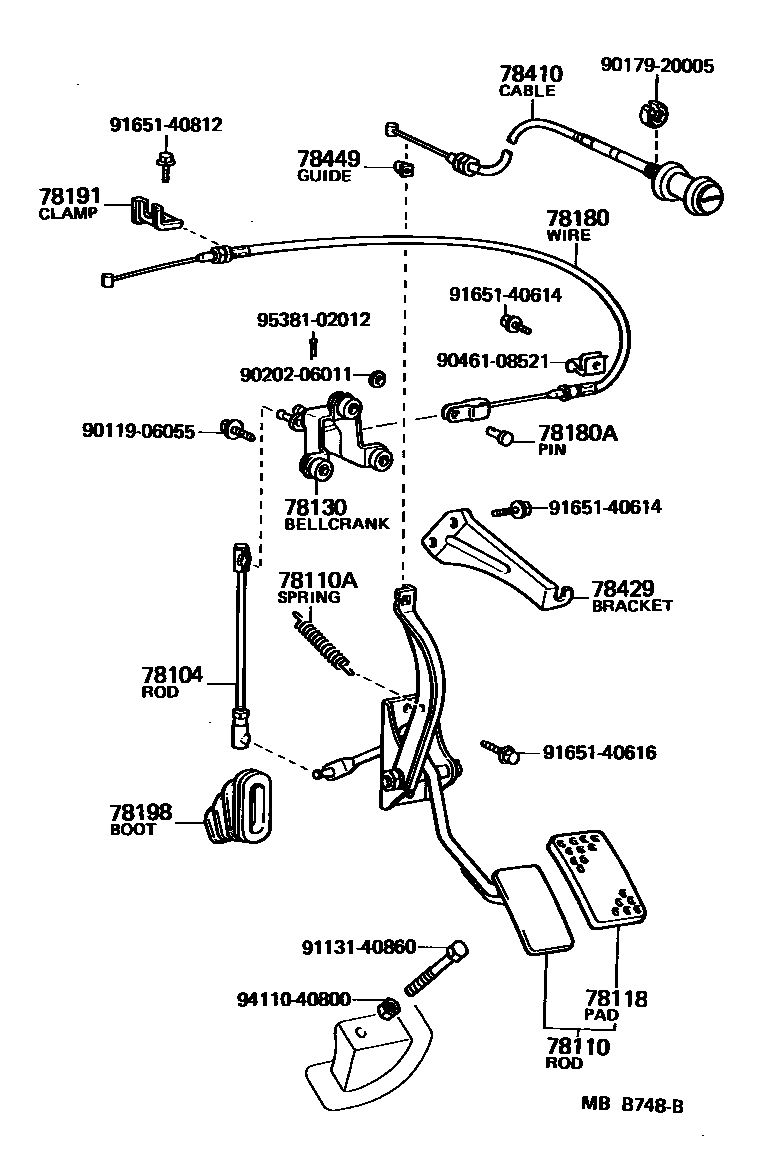

Toyota LAND CRUISER — ACCELERATOR LINK
78104ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78110ROD ASSY, ACCELERATOR PEDAL
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
78118PAD, ACCELERATOR PEDAL
78130BELLCRANK ASSY, ACCELERATOR
78180WIRE ASSY, ACCELERATOR
78180APIN, ACCELERATOR WIRE SET
78191BRACKET, ACCELERATOR WIRE SUPPORT
78198BOOT, ACCELERATOR CONNECTING ROD
78410CABLE ASSY, THROTTLE CONTROL
78429BRACKET, THROTTLE ROD
78449GUIDE, THROTTLE CABLE
9011906055
main90119-06055
9017920005
main90179-20005
9020206011
main90202-06011
9046108521
main90461-08521
9113140860
main91131-40860
9165140614
main91651-40614
9165140616
main91651-40616
9165140812
main91651-40812
9411040800
main94110-40800
9538102012
main95381-02012
22 parts on this diagram · 3 diagrams in section
ACCELERATOR LINK for Toyota LAND CRUISER
This section contains 37 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota LAND CRUISER. Key components include: ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1, SPRING (FOR ACCELERATOR CONNECTING ROD, NO.1), ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2, ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3, ROD ASSY, ACCELERATOR PEDAL.
