Toyota LAND CRUISER — ACCELERATOR LINK

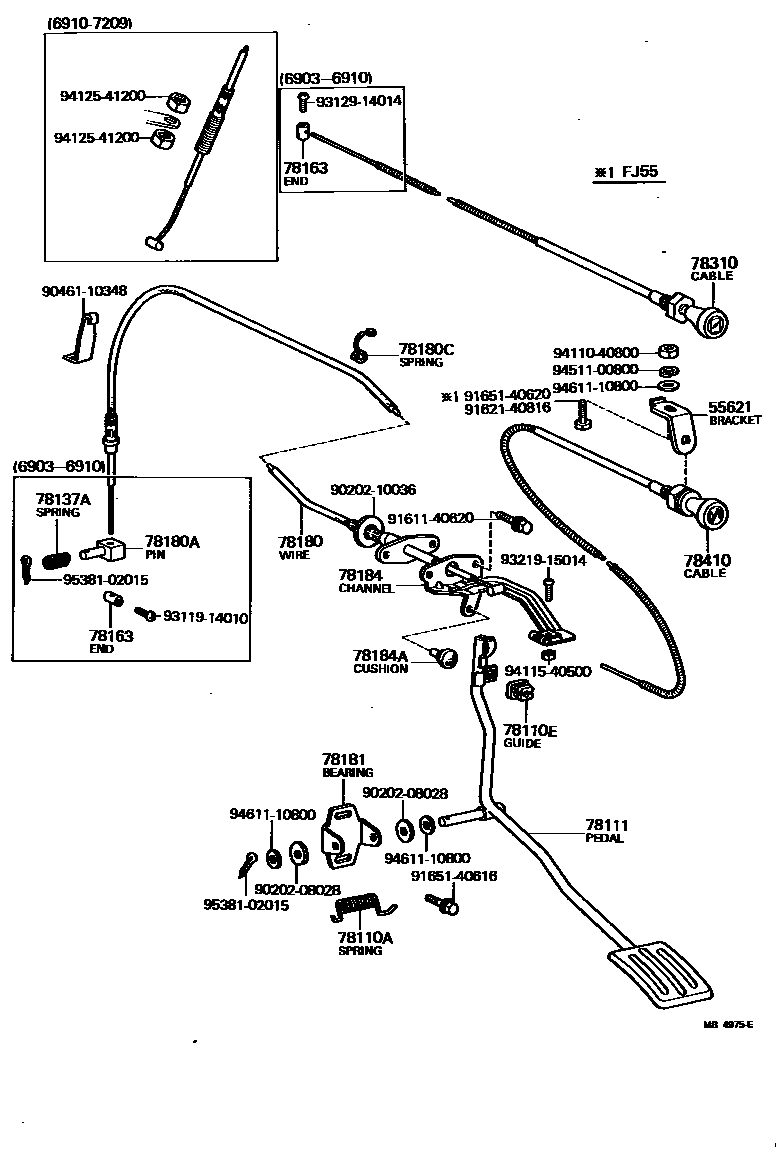

Parts diagram

55621BRACKET, THROTTLE ROD SUPPORT

main78442-90301i197110-198007

main78442-90302i197803-198007

main78442-90351i197110-198007

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-26125i197803-198007

main90508-26392i197309-198007

78110EGUIDE, THROTTLE WIRE

main78449-90300i197110-198007

W/THROTTLE ROD

78111PEDAL, ACCELERATOR

main78101-60030i196903-197309

main78101-90300i197110-197309

W/THROTTLE ROD

main78101-90301i197309-197501

main78101-90302i197309-197501

W/THROTTLE ROD

main78101-90303i197501-197601

W/THROTTLE ROD

main78101-90304i197501-197601

main78101-90305i197608-197806

main78101-90306i197608-197806

W/THROTTLE ROD

main78101-90307i197608-197806

CAL.

main78101-90308i197601-197608

W/THROTTLE ROD

main78101-90309i197608-197806

W/THROTTLE ROD,CAL.

main78101-90310i197806-198007

main78101-90311i197806-198007

W/THROTTLE ROD

main78101-90312i197806-197901

CAL.

main78101-90313i197806-197901

W/THROTTLE ROD,CAL.

main78101-90351i196903-197309

main78101-90352i197110-197309

W/THROTTLE ROD

main78101-90353i197309-197501

main78101-90354i197309-197501

W/THROTTLE ROD

main78101-90355i197501-197509

main78101-90356i197501-197509

W/THROTTLE ROD

main78101-90357i197509-197806

main78101-90358i197509-197806

W/THROTTLE ROD

main78101-90359i197509-197806

CAL.

main78101-90360i197509-197806

W/THROTTLE ROD,CAL.

main78101-90361i197806-198007

main78101-90362i197806-198007

W/THROTTLE ROD

main78101-90363i197806-197901

CAL.

main78101-90364i197806-197901

W/THROTTLE ROD,CAL.

78137ASPRING, ACCELERATOR LINK PIN

main90501-08086i196903-196910

78163END, FLEXIBLE WIRE

main78163-55020×2i196903-196910

78180WIRE ASSY, ACCELERATOR

main78180-60030i196903-196910

main78180-90312i197803-198007

main78180-90358i196910-197309

78180APIN, ACCELERATOR WIRE SET

main78154-55010i196903-196910

78180CSPRING, TENSION (FOR ACCELERATOR WIRE)

main90468-14080i197012-197109

main90468-14092i197109-197209

78181BEARING, ACCELERATOR PEDAL ROD SUPPORT

main78102-90352i196903-197309

main78102-90353i197309-197803

main78104-90300i197209-197309

main78104-90301i197309-197803

main78104-90302i197803-198007

main78181-60030i196903-197209

main78181-90303i197803-197806

main78181-90304i197806-198007

main78183-90352i197803-197806

main78183-90353i197806-198007

78184CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER

main78184-60010i196903-197309

main78441-90300i197110-197309

W/THROTTLE ROD

main78441-90303i197803-198007

main78441-90351i197309-198007

78184ACUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)

main90541-06008i196903-198007

78310CABLE ASSY, CHOKE

main78310-60011i196903-197209

main78310-60030i197109-197209

main78310-60050i196903-197109

main78310-90301i197209-197501

main78310-90302i197501-197608

main78310-90310i197608-198007

main78310-90352i197209-197501

main78310-90353i197501-197608

main78310-90359i197608-198007

78410CABLE ASSY, THROTTLE CONTROL

main78410-60040i196903-196910

main78410-60070i196903-196910

main78410-90300i197110-197209

main78410-90301i197803-198007

main78410-90302i197209-198007

main78410-90351i197110-197209

main78410-90353i197209-198007

9020208028

main90202-08028

9020210036

main90202-10036

9046110348

main90461-10348

9161140620

main91611-40620

9162140816

main91621-40816

9165140616

main91651-40616

9165140620

main91651-40620

9311914010

main93119-14010

9312914014

main93129-14014

9321915014

main93219-15014

9411040800

main94110-40800

9411540500

main94115-40500

9412541200

main94125-41200

9451100800

main94511-00800

9461110800

main94611-10800

9538102015

main95381-02015

30 parts on this diagram · 4 diagrams in section

ACCELERATOR LINK for Toyota LAND CRUISER

This section contains 70 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota LAND CRUISER. Key components include: BRACKET, THROTTLE ROD SUPPORT, ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1, ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2, ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3, BUSH (FOR ACCELERATOR TORQUE ROD).
