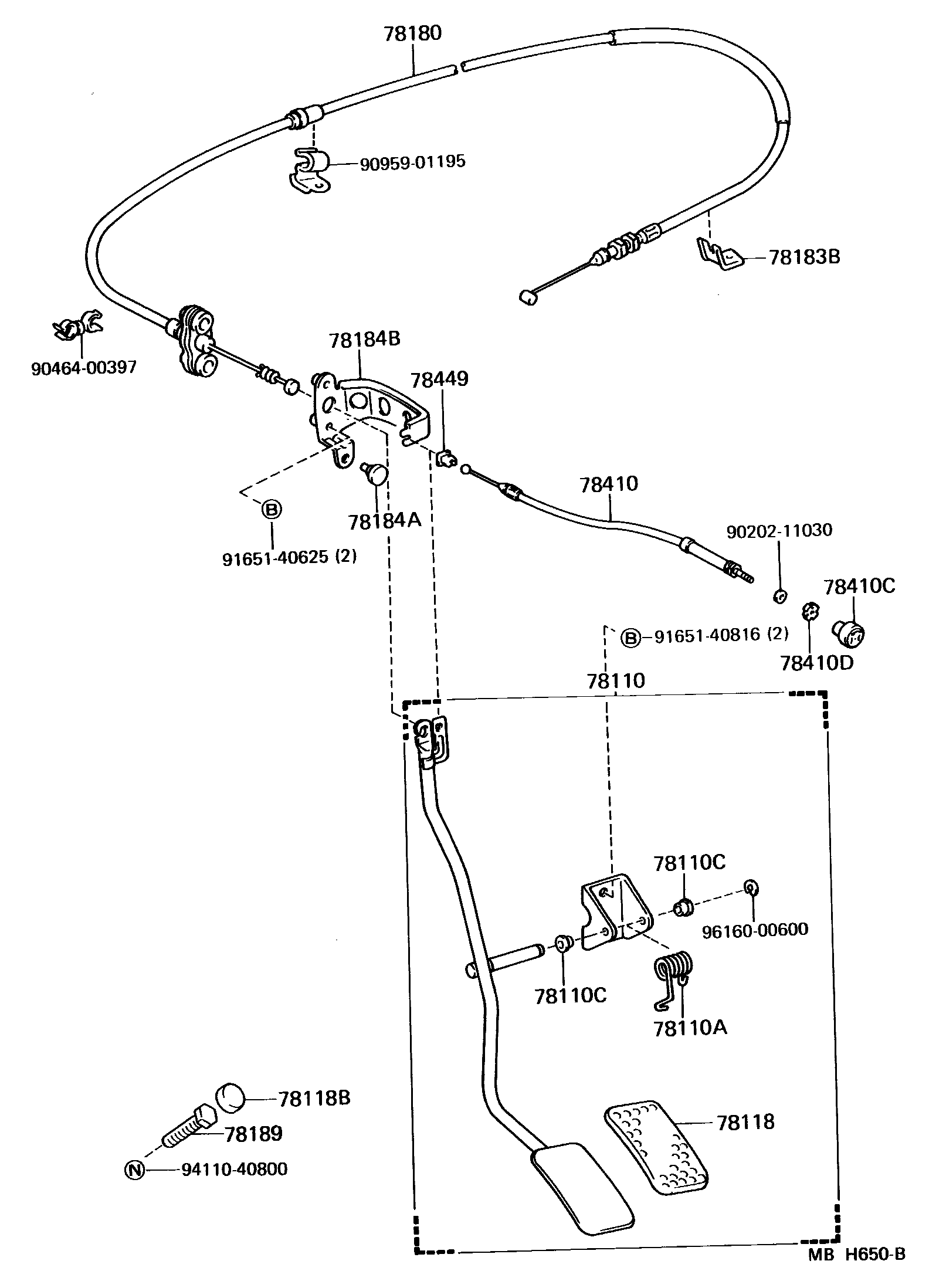

Toyota LAND CRUISER — ACCELERATOR LINK

78110ROD ASSY, ACCELERATOR PEDAL

main78120-90K02i198411-198707

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-29017i198411-198707

78110CBUSH (FOR ACCELERATOR PEDAL ROD)

main90386-08155×2i198411-198707

78118PAD, ACCELERATOR PEDAL

main78111-95110i198411-198707

78118BSTOPPER, ACCELERATOR PEDAL

main78118-90K00i198411-198707

78180WIRE ASSY, ACCELERATOR

main78180-90K10i198411-198707

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-90A00i198411-198707

78184ACUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)

main90541-06008i198411-198707

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-90K01i198411-198707

78189BOLT, ACCELERATOR PEDAL STOPPER

main91131-50835i198411-198707

78410CABLE ASSY, THROTTLE CONTROL

main78410-90K01i198411-198707

78410CKNOB, THROTTLE CABLE

main78411-90K00i198411-198707

78410DNUT, THROTTLE

main90179-11007i198411-198707

78449GUIDE, THROTTLE CABLE

main78449-90300i198411-198506

9020211030

main90202-11030

9046400397

main90464-00397

9095901195

main90959-01195

9165140625

main91651-40625

9165140816

main91651-40816

9411040800

main94110-40800

9616000600

main96160-00600

21 parts on this diagram · 1 diagram in section

ACCELERATOR LINK for Toyota LAND CRUISER

This section contains 21 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota LAND CRUISER. Key components include: ROD ASSY, ACCELERATOR PEDAL, SPRING (FOR ACCELERATOR PEDAL ROD), BUSH (FOR ACCELERATOR PEDAL ROD), PAD, ACCELERATOR PEDAL, STOPPER, ACCELERATOR PEDAL.
