Toyota LAND CRUISER — SWITCH & RELAY & COMPUTER

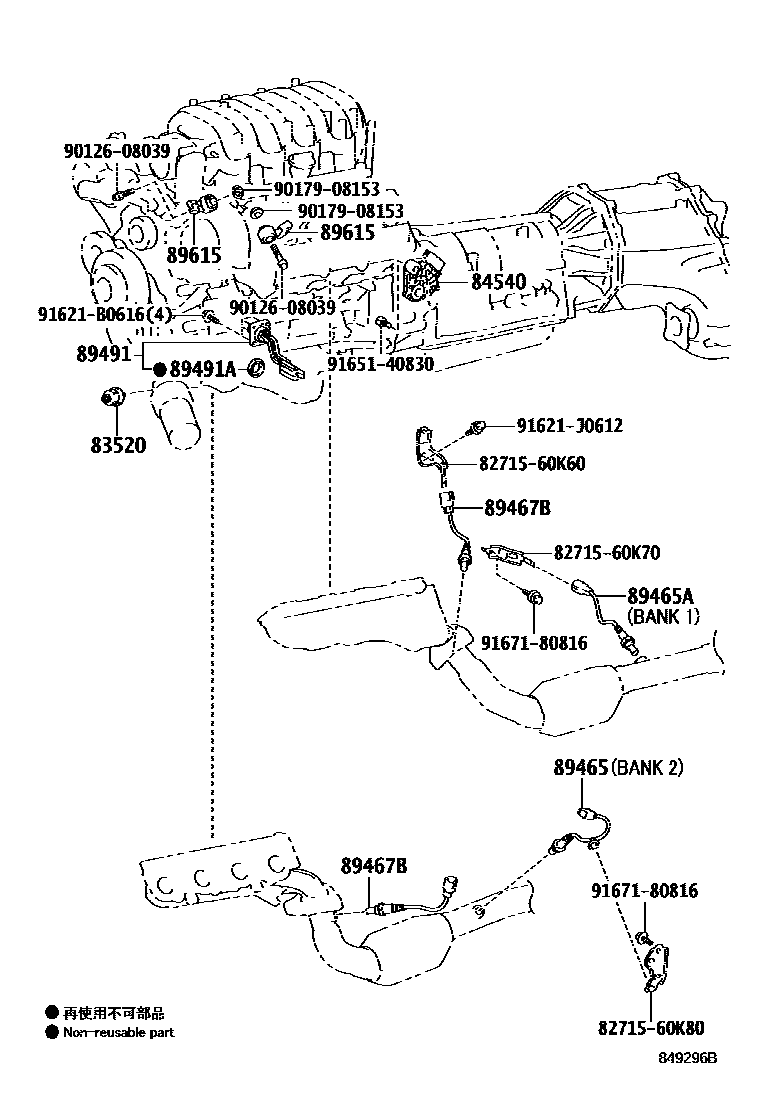

Parts diagram

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60050i200709-200905

main83520-60051i201508-202104

84540SWITCH ASSY, NEUTRAL START

main84540-60050i200905-201201

main84540-71010i200709-200905

89465SENSOR, OXYGEN

main89465-60370i201201-201508

89465ASENSOR, OXYGEN NO.2

main89465-36040i200709-200905

89467BSENSOR, AIR FUEL RATIO

main89467-22030×2i201508-202104

main89467-34030×2i201201-201508

main89467-35110×2i200709-201201

89491SENSOR, ENGINE OIL LEVEL

main89491-60110i200709-200905

main89491-60160i201201-201508

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010i200709-200905

89615SENSOR, KNOCK CONTROL

main89615-20090×4i201201-201508

8271560K60BRACKET,WIRING HARNESS CLAMP

main82715-60K60

8271560K70BRACKET,WIRING HARNESS CLAMP

main82715-60K70

8271560K80BRACKET,WIRING HARNESS CLAMP

main82715-60K80

9012608039

main90126-08039

9017908153

main90179-08153

91621B0616

main91621-B0616

91621J0612

main91621-J0612

9165140830

main91651-40830

9167180816

main91671-80816

17 parts on this diagram · 22 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota LAND CRUISER

This section contains 210 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota LAND CRUISER. Key components include: RELAY ASSY, STARTER, RELAY, STARTER CUT, RELAY, IGNITION, NO.1, STEERING WHEEL, INSIDE TRIM BOARD.
