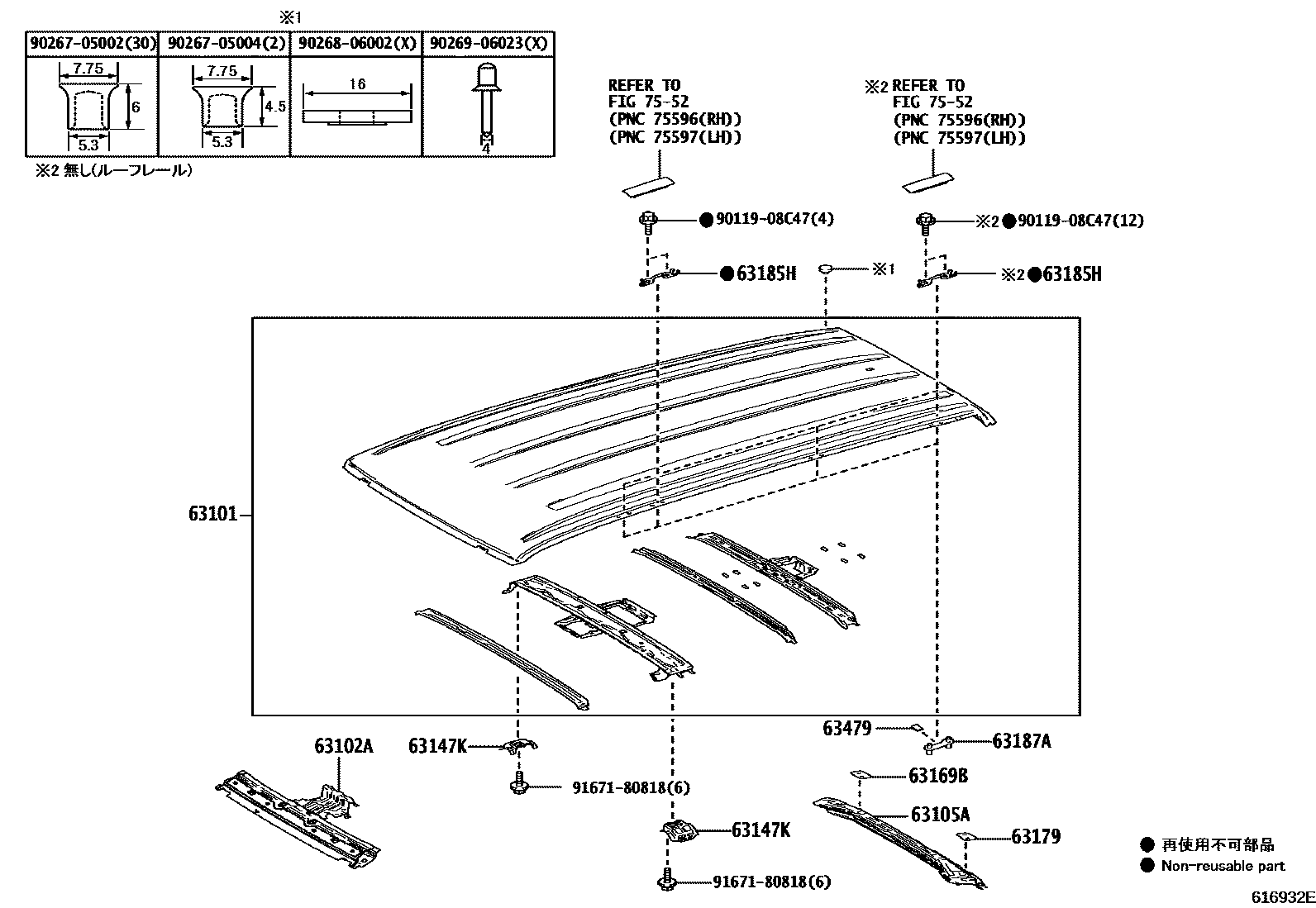

Toyota LAND CRUISER — ROOF PANEL & BACK PANEL
63101PANEL SUB-ASSY, ROOF
63102APANEL SUB-ASSY, WINDSHIELD HEADER
63105AFRAME SUB-ASSY, BACK DOOR OPENING
63147KREINFORCEMENT, BACK DOOR OPENING FRAME
63169BPLATE, ROOF PANEL REINFORCEMENT, RH
63179PLATE, ROOF PANEL REINFORCEMENT, LH
63185HBRACKET, ROOF RACK
63187ABRACKET, ROOF RACK, REAR
63479RETAINER, ROOF INNER RACK
7552MOULDING
9011908C47
main90119-08C47
9026705002
main90267-05002
9026705004
main90267-05004
9026806002
main90268-06002
9026906023
main90269-06023
9167180818
main91671-80818
16 parts on this diagram · 4 diagrams in section
ROOF PANEL & BACK PANEL for Toyota LAND CRUISER
This section contains 62 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota LAND CRUISER. Key components include: PANEL SUB-ASSY, ROOF, PANEL SUB-ASSY, WINDSHIELD HEADER, FRAME SUB-ASSY, BACK DOOR OPENING, REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6, PROTECTOR, WINDSHIELD HEADER.
