Toyota LAND CRUISER — PACKAGE TRAY PANEL

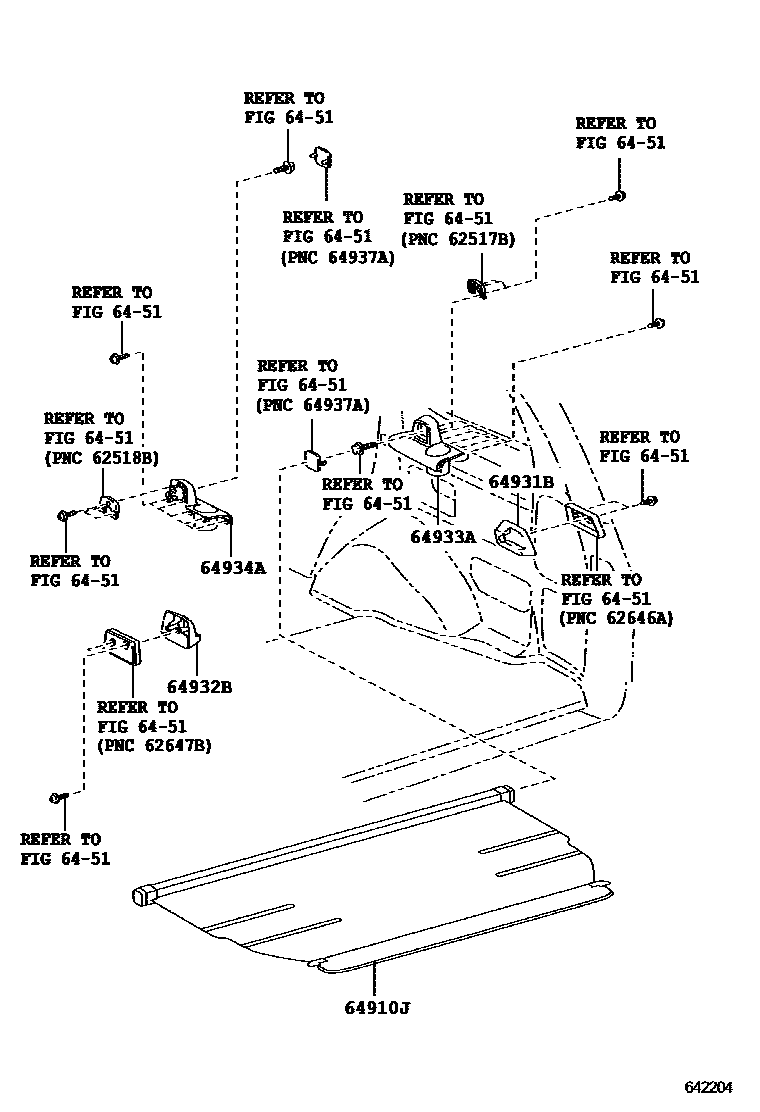

Parts diagram

6451INSIDE TRIM BOARD

→ Go to FIG 64-51

64910JCOVER ASSY, TONNEAU

main64910-60090i201008-201201

main64910-60090-A0i201201-201508

main64910-60090-A2i201508-201512

main64910-60090-C0i201508-201512

main64910-60210-A1i201601-201707

main64910-60210-C0i201601-201707

main64910-60240-C0i201708-202104

main64910-60240-E0i201708-202104

64931BHANGER, TONNEAU COVER, RH

main64931-60070-A0i201201-201508

main64931-60070-A2i201508-201708

main64931-60070-C0i201201-201508

main64931-60070-E0i201008-201201

main64931-60070-E1i201708-202104

64932BHANGER, TONNEAU COVER, LH

main64932-60050-A0i201201-201508

main64932-60050-A2i201508-201708

main64932-60050-C0i201008-201201

main64932-60050-E0i201008-201201

main64932-60050-E1i201708-202104

64933ABRACKET, TONNEAU COVER HOLDER, RH

main64933-60010-A0i201201-201508

main64933-60010-A2i201508-201708

main64933-60010-C0i201508-202104

main64933-60010-E0i201008-201201

main64933-60010-E1i201708-202104

64934ABRACKET, TONNEAU COVER HOLDER, LH

main64934-60010-A0i201201-201508

main64934-60010-A2i201508-201708

main64934-60010-C0i201008-201201

main64934-60010-E0i201008-201201

main64934-60010-E1i201708-202104

6 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL for Toyota LAND CRUISER

This section contains 6 genuine Toyota parts for the PACKAGE TRAY PANEL system of the Toyota LAND CRUISER. Key components include: INSIDE TRIM BOARD, COVER ASSY, TONNEAU, HANGER, TONNEAU COVER, RH, HANGER, TONNEAU COVER, LH, BRACKET, TONNEAU COVER HOLDER, RH.
