Toyota LAND CRUISER — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

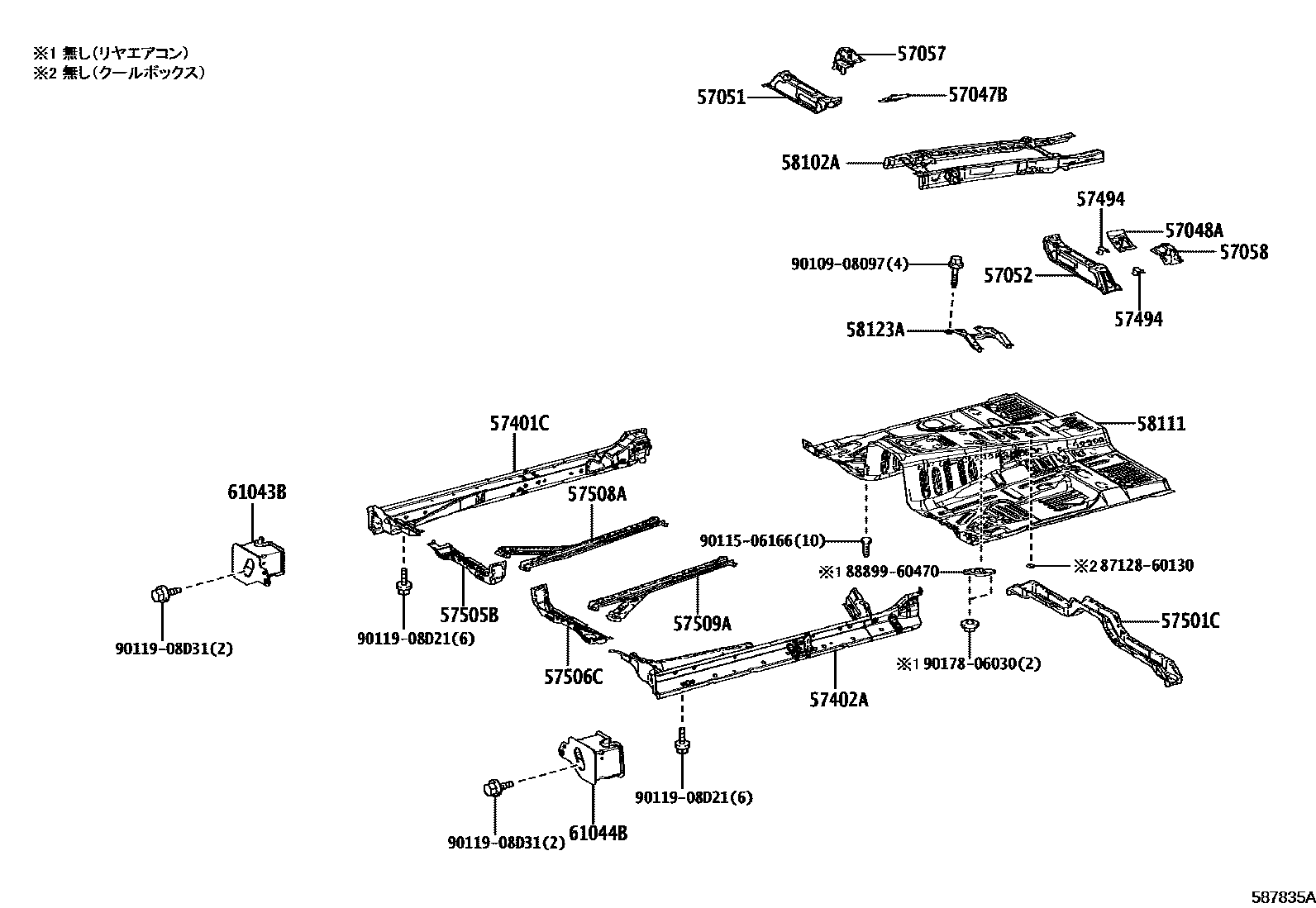

Parts diagram
57047BBRACKET SUB-ASSY, FLOOR HOUSING SEAT ANCHOR, RH
main57047-60010i202107-202411
57048ABRACKET SUB-ASSY, FLOOR HOUSING SEAT ANCHOR, LH
main57048-60010i202107-202411
57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
main57051-60080i202107-202411
57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
main57052-60080i202107-202411
57057REINFORCEMENT SUB-ASSY, CROSSMEMBER FLOOR, NO.7 RH
main57057-60010i202107-202411
57058REINFORCEMENT SUB-ASSY, CROSSMEMBER FLOOR, NO.7 LH
main57058-60010i202107-202411
57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
main57401-60140i202107-202411
57402AMEMBER SUB-ASSY, FLOOR SIDE, INNER LH
main57402-60150i202107-202411
57494BRACE, FRONT FLOOR CROSS, NO.2 LH
main57494-60010×2i202107-202411
57501CBRACE SUB-ASSY, FRONT FLOOR, CENTER
main57501-60010i202107-202411
57505BREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER, RH
main57505-60080i202107-202411
57506CREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER, LH
main57506-60050i202107-202411
57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
main57508-60030i202107-202411
57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
main57509-60140i202107-202411
58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR
main58102-60120i202107-202411
58111PAN, FRONT FLOOR
main58111-60G10i202107-202411
58123ASUPPORT, SHIFT & SELECT LEVER
main58123-60110i202107-202304
main58123-60111i202305-202411
61043BEXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER RH
main61043-60010i202107-202303
main61043-60011i202304-202411
61044BEXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER LH
main61044-60010i202107-202303
main61044-60011i202304-202411
8712860130GROMMET, HEATER
main87128-60130
8889960470COVER, EVAPORATOR
main88899-60470
9010908097
main90109-08097
9011506166
main90115-06166
9011908D21
main90119-08D21
9011908D31
main90119-08D31
9017806030
main90178-06030

26 parts on this diagram · 3 diagrams in section

FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota LAND CRUISER

This section contains 61 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota LAND CRUISER. Key components include: STAY SUB-ASSY, SIDE STEP, NO.1 RH, STAY SUB-ASSY, SIDE STEP, NO.1 LH, STEP SUB-ASSY, RH, STEP SUB-ASSY, LH, COVER, SIDE DOOR STEP PLATE, REAR LH.
