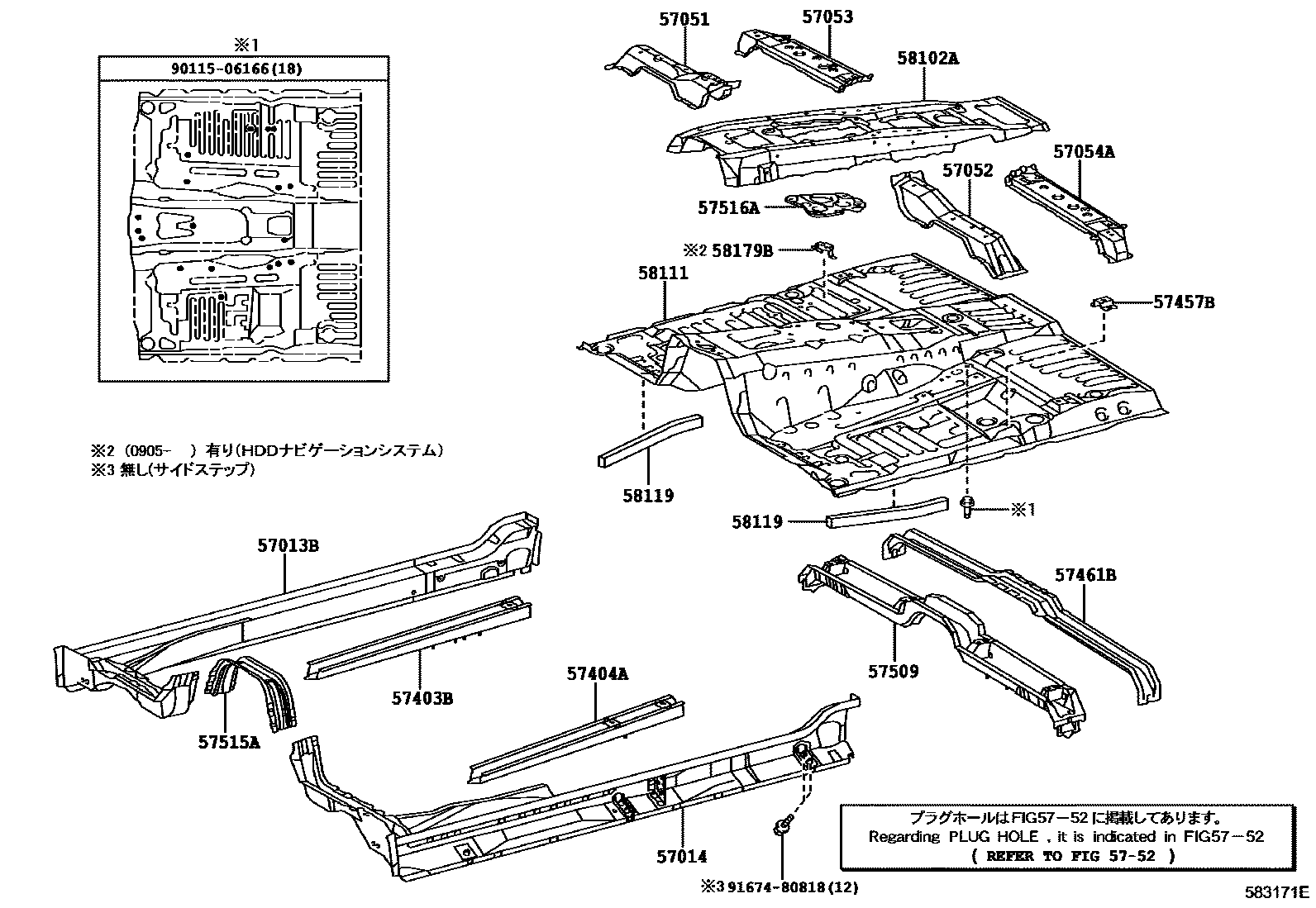

Toyota LAND CRUISER — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
57013BMEMBER SUB-ASSY, FLOOR, FRONT RH
57014MEMBER SUB-ASSY, FLOOR, FRONT LH
57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57403BREINFORCE SUB-ASSY, FLOOR SIDE, INNER RH
57404AREINFORCE SUB-ASSY, FLOOR SIDE, INNER LH
57457BBRACKET, FRONT SEAT, FRONT
57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
57515AREINFORCEMENT, FRONT FLOOR, CENTER
57516ARETAINER, FRONT FLOOR REINFORCEMENT, FRONT
5752HOLE PLUG
58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR
58111PAN, FRONT FLOOR
58119PLATE, FRONT FLOOR SIDE, FRONT
58179BBRACKET, ACCELERATOR CABLE CLAMP
9011506166
main90115-06166
9167480818
main91674-80818
20 parts on this diagram · 3 diagrams in section
FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota LAND CRUISER
This section contains 55 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota LAND CRUISER. Key components include: PROTECTOR, STEP COVER, RH, PROTECTOR, STEP COVER, LH, COVER, SIDE DOOR STEP PLATE, REAR LH, PLATE, STEP, RH, PLATE, STEP, LH.
