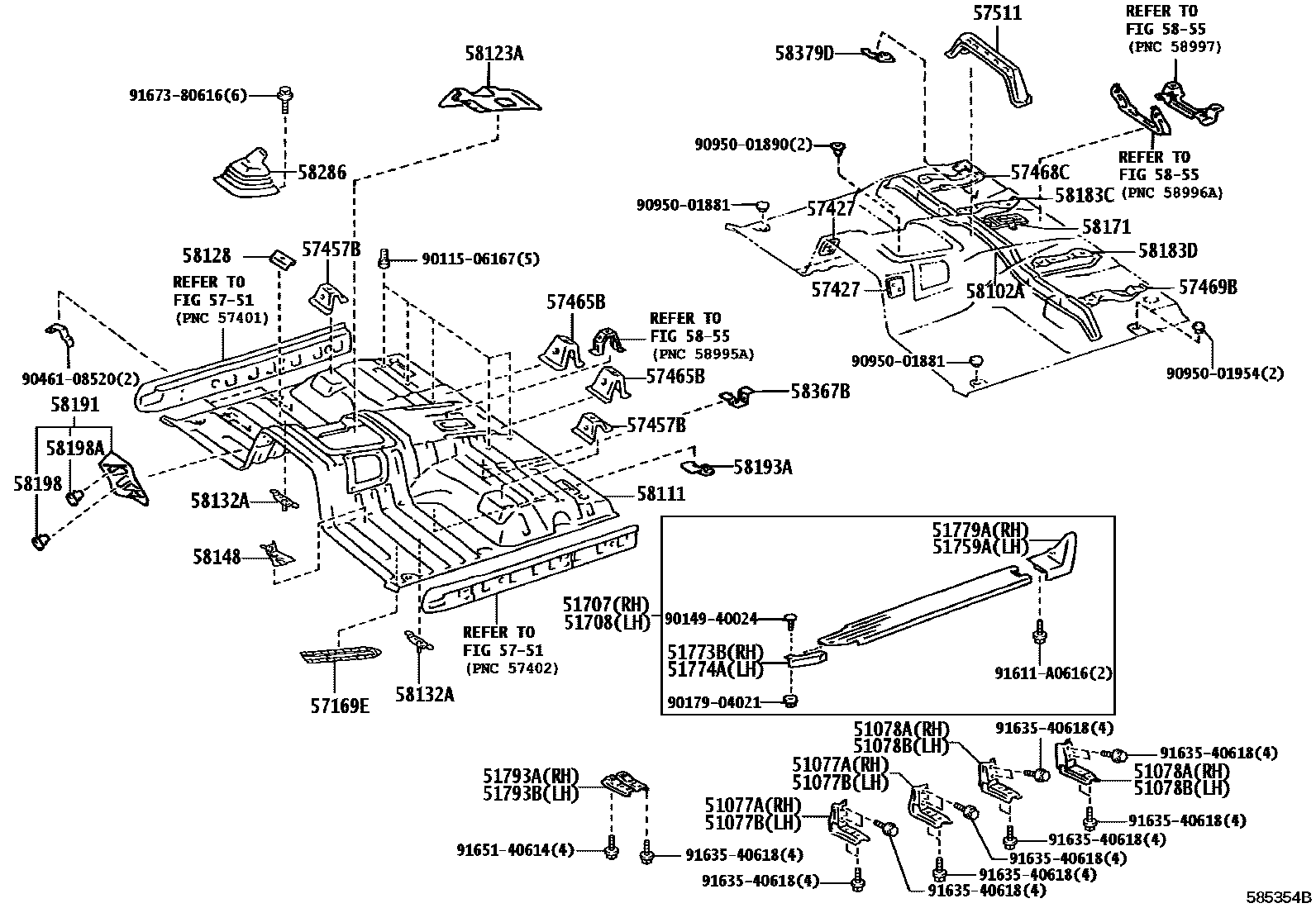

Toyota LAND CRUISER — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
51077ABRACKET SUB-ASSY, SIDE STEP, NO.2, RH
51077BBRACKET SUB-ASSY, SIDE STEP, NO.2, LH
51078ABRACKET SUB-ASSY, SIDE STEP, NO.3, RH
51078BBRACKET SUB-ASSY, SIDE STEP, NO.3, LH
51707STEP SUB-ASSY, RH
51708STEP SUB-ASSY, LH
51759ACOVER, SIDE DOOR STEP PLATE, REAR LH
51773BCOVER, SIDE DOOR STEP PLATE, FRONT RH
51774ACOVER, SIDE DOOR STEP PLATE, FRONT LH
51779ACOVER, SIDE DOOR STEP PLATE, REAR RH
51793ABRACKET, SIDE STEP, NO.1 RH
51793BBRACKET, SIDE STEP, NO.1, LH
57169EREINFORCEMENT, FRONT CROSSMEMBER, NO.4
57427REINFORCEMENT, FRONT FLOOR TO BRACE
57457BBRACKET, FRONT SEAT, FRONT
57465BBRACKET, FRONT SEAT, INNER
57468CBRACKET, FRONT SEAT, OUTSIDE, RH
57469BBRACKET, FRONT SEAT, OUTSIDE LH
5751FLOOR MEMBER
57511REINFORCEMENT, FRONT FLOOR, CENTER
58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR
58132ABRACKET, FRONT FLOOR HEAT INSULATOR, NO.2
58148BRACKET, FRONT FLOOR HOUSING, REAR LH
58183CBRACKET, FRONT SEAT MOUNTING, INSIDE RH
58183DBRACKET, FRONT SEAT MOUNTING, INSIDE LH
58191FOOTREST, FRONT FLOOR
58193ABRACKET, FUEL PIPE
58198ACLIP, FOOTREST, NO.1
58367BBRACKET, FUEL TUBE
58379DBRACKET, HEATER HOSE CLAMP
5855CONSOLE BOX & BRACKET
9011506167
main90115-06167
9014940024
main90149-40024
9017904021
main90179-04021
9046108520
main90461-08520
9095001881
main90950-01881
9095001890
main90950-01890
9095001954
main90950-01954
91611A0616
main91611-A0616
9163540618
main91635-40618
9165140614
main91651-40614
9167380616
main91673-80616
48 parts on this diagram · 4 diagrams in section
FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota LAND CRUISER
This section contains 53 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota LAND CRUISER. Key components include: BRACKET SUB-ASSY, SIDE STEP, NO.2, RH, BRACKET SUB-ASSY, SIDE STEP, NO.2, LH, BRACKET SUB-ASSY, SIDE STEP, NO.3, RH, BRACKET SUB-ASSY, SIDE STEP, NO.3, LH, STEP SUB-ASSY, RH.
