Toyota LAND CRUISER — FRONT DOOR LOCK & HANDLE

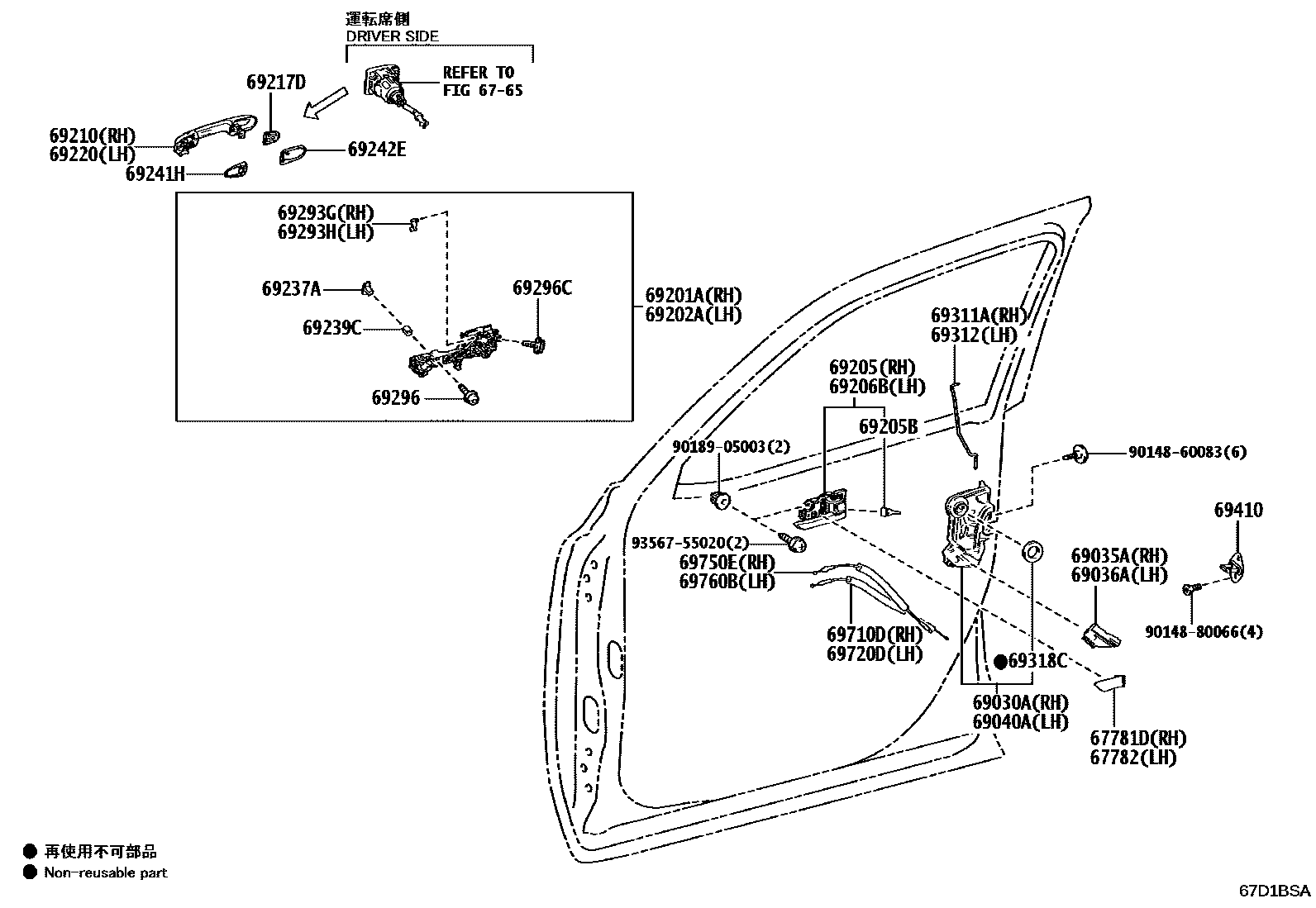

Parts diagram
6765LOCK CYLINDER SET
→ Go to FIG 67-65
67781DCOVER, FRONT DOOR TRIM, UPPER RH
main67781-60570-C0i202404
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#
67782COVER, FRONT DOOR TRIM, UPPER LH
main67782-60600-C0i202404
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
main69030-28190i202404
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
main69035-28010i202404
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
main69036-28010i202404
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
main69040-28220i202404
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-60140i202404
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-60060i202404
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-15010-C1i202404
BLACK,TRIM1#,2#,4#
main69205-33140-C0i202404
BLACK,TRIM1#,2#; BLACK,TRIM2#,4#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
main90541-04014×2i202404
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-15010-C1i202404
BLACK,TRIM1#,2#,4#
main69206-33150-C0i202404
BLACK,TRIM1#,2#; BLACK,TRIM2#,4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-60410-A0supersedes 69210-60220-A1i202404
main69210-60410-A2supersedes 69210-60220-A0i202404
main69210-60410-B3supersedes 69210-60220-B0i202404
main69210-60410-C0supersedes 69210-60220-C0i202404
main69210-60410-C1supersedes 69210-60220-C1i202404
main69210-60410-E0supersedes 69210-60220-E0i202404
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
main69217-60280i202404
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69210-60420-A0supersedes 69210-60230-A1i202404
main69210-60420-A2supersedes 69210-60230-A0i202404
main69210-60420-B3supersedes 69210-60230-B0i202404
main69210-60420-C0supersedes 69210-60230-C0i202404
main69210-60420-C1supersedes 69210-60230-C1i202404
main69210-60420-E0supersedes 69210-60230-E0i202404
69237ANUT, FRONT DOOR HANDLE
main69237-60010×2i202404
69239CBUSH, FRONT DOOR HANDLE
main69239-60020×2i202404
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
main69241-60080×2i202404
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
main69242-60090×2i202404
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
main69293-33030i202404
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
main69293-33040i202404
69296SCREW, DOOR INSIDE HANDLE
main90148-50006×2i202404
69296CSCREW, DOOR INSIDE HANDLE
main90148-50003i202404
main90148-50008i202404
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-60100i202404
69312ROD, FRONT DOOR LOCK OPEN, LH
main69312-60100i202404
69318CSEAL, DOOR LOCK WIRING HARNESS
main69318-51010×2i202404
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-20110×2i202404
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
main69710-60080i202404
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
main69710-60080i202404
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
main69750-60090i202404
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
main69750-60090i202404
9014860083
main90148-60083
9014880066
main90148-80066
9018905003
main90189-05003
9356755020
main93567-55020

35 parts on this diagram · 1 diagram in section

FRONT DOOR LOCK & HANDLE for Toyota LAND CRUISER

This section contains 35 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota LAND CRUISER. Key components include: LOCK CYLINDER SET, COVER, FRONT DOOR TRIM, UPPER RH, COVER, FRONT DOOR TRIM, UPPER LH, LOCK ASSY, FRONT DOOR W/MOTOR, RH, COVER SUB-ASSY, FRONT DOOR LOCK, RH.
