Toyota LAND CRUISER — FRONT AXLE HUB

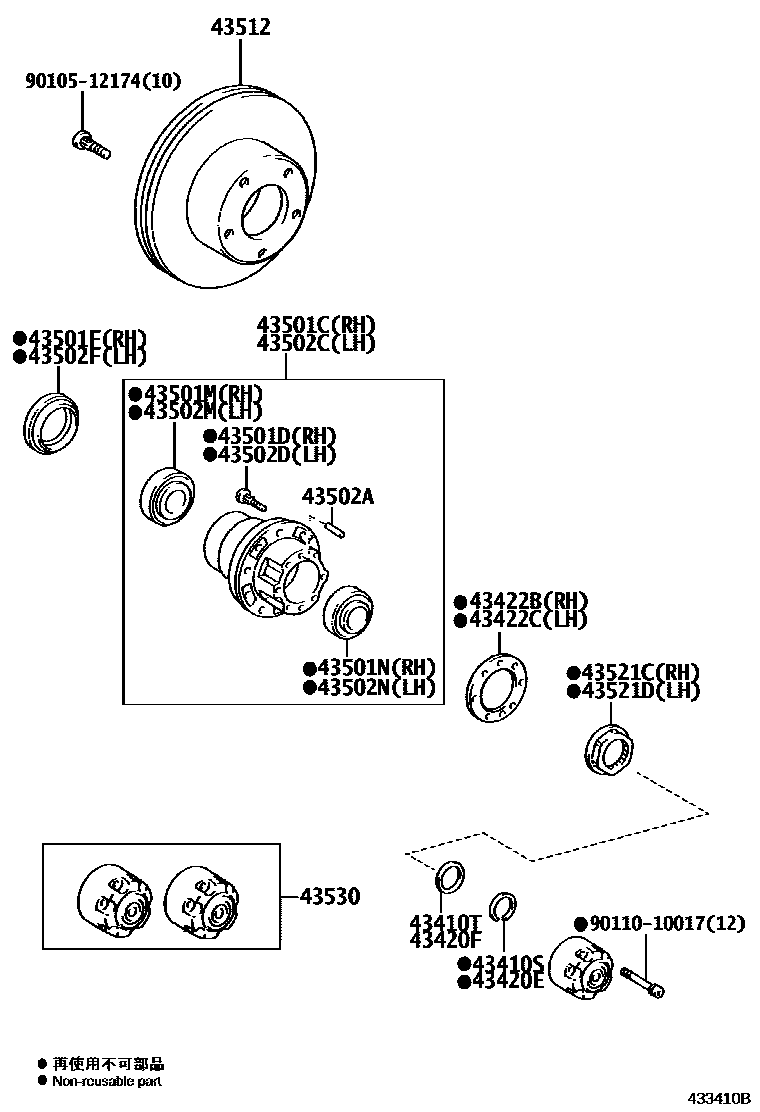

Parts diagram
43410SRING, SNAP (FOR FRONT DRIVE SHAFT RH)
main90520-31005i202311
main90520-31006i201408-201507
main90520-31007i201408-201507
main90520-31008i201408-201507
main90520-31009i201408-201507
main90520-31010i201408-201507
43410TSPACER (FOR FRONT DRIVE SHAFT RH)
main90560-33008i201408-201507
43420ERING, SNAP (FOR FRONT DRIVE SHAFT LH)
main90520-31005i202311
main90520-31006i201408-201507
main90520-31007i201408-201507
main90520-31008i201408-201507
main90520-31009i202311
main90520-31010i201408-201507
43420FSPACER (FOR FRONT DRIVE SHAFT LH)
main90560-33008i201408-201507
43422BGASKET, FRONT AXLE OUTER SHAFT FLANGE, RH
main43422-60070i201408-201507
43422CGASKET, FRONT AXLE OUTER SHAFT FLANGE, LH
main43422-60070i201408-201507
43501CHUB SUB-ASSY, FRONT AXLE, RH
main43503-69045i201408-201507
43501DBOLT, HUB (FOR FRONT AXLE RH)
main90942-02083×5i201408-201507
43501FSEAL, OIL (FOR FRONT AXLE HUB RH)
main90311-62007i201408-201507
43501MBEARING (FOR FRONT AXLE HUB INNER RH)
main90368-49084i201408-201507
43501NBEARING (FOR FRONT AXLE HUB OUTER RH)
main90368-45087i201408-201507
43502APIN, STRAIGHT (FOR FRONT AXLE HUB)
main90250-10032i201408-201507
43502CHUB SUB-ASSY, FRONT AXLE, LH
main43503-69045i201408-201507
43502DBOLT, HUB (FOR FRONT AXLE LH)
main90942-02083×5i201408-201507
43502FSEAL, OIL (FOR FRONT AXLE HUB LH)
main90311-62007i201408-201507
43502MBEARING (FOR FRONT AXLE HUB INNER LH)
main90368-49084i201408-201507
43502NBEARING (FOR FRONT AXLE HUB OUTER LH)
main90368-45087i201408-201507
43512DISC, FRONT
main43512-60141×2i201408-201507
main43512-60220i202311
43521CNUT, FRONT WHEEL ADJUSTING, RH
main43521-60020i201408-201507
43521DNUT, FRONT WHEEL ADJUSTING, LH
main43521-60020i201408-201507
43530HUB ASSY, FREE WHEEL
main43530-69065i201408-201507
9010512174
main90105-12174
9011010017
main90110-10017

23 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota LAND CRUISER

This section contains 23 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota LAND CRUISER. Key components include: RING, SNAP (FOR FRONT DRIVE SHAFT RH), SPACER (FOR FRONT DRIVE SHAFT RH), RING, SNAP (FOR FRONT DRIVE SHAFT LH), SPACER (FOR FRONT DRIVE SHAFT LH), GASKET, FRONT AXLE OUTER SHAFT FLANGE, RH.
