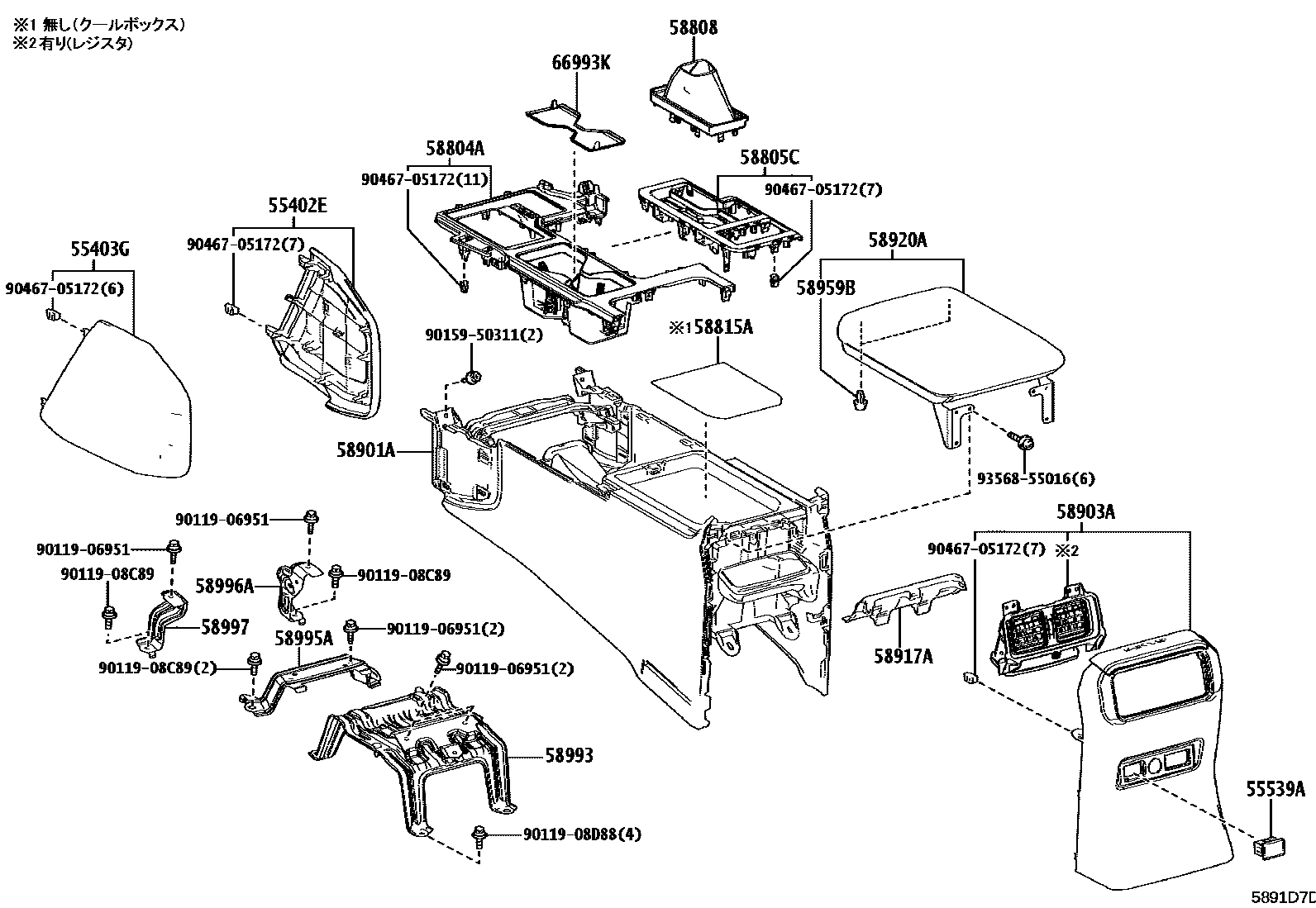

Toyota LAND CRUISER — CONSOLE BOX & BRACKET
55402EPAD SUB-ASSY, INSTRUMENT PANEL, LOWER NO.1
BLACK,TRIM1#,2#
CHATEAU,TRIM1#
BLACK,TRIM2#; BLACK,TRIM2#,4#
55403GPAD SUB-ASSY, INSTRUMENT PANEL, LOWER NO.2
BLACK,TRIM1#,2#
CHATEAU,TRIM1#
BLACK,TRIM2#; BLACK,TRIM2#,4#
55539ACOVER, SPARE SWITCH HOLE
BLACK,TRIM1#,2#; BLACK,TRIM2#,4#
58804APANEL SUB-ASSY, CONSOLE, UPPER
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#; BLACK,TRIM2#,4#
58815ACARPET, CONSOLE BOX
58901ABOX SUB-ASSY, CONSOLE, REAR
BLACK,TRIM1#,2#; BLACK,TRIM2#,4#
58903APANEL SUB-ASSY, CONSOLE REAR END
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#
58917ACOVER, CONSOLE BOX, REAR
58920AARMREST ASSY, REAR CONSOLE
CHATEAU/IVORY,TRIM1#
BLACK/LT.GRAY,TRIM2#
DK.CHESTNUT/LT.GRAY,TRIM4#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58993BRACKET, CONSOLE BOX MOUNTING, REAR
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
66993KTRAY, CUP HOLDER
9011906951
main90119-06951
9011908C89
main90119-08C89
9011908D88
main90119-08D88
9015950311
main90159-50311
9046705172
main90467-05172
9356855016
main93568-55016
23 parts on this diagram · 1 diagram in section
CONSOLE BOX & BRACKET for Toyota LAND CRUISER
This section contains 23 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota LAND CRUISER. Key components include: PAD SUB-ASSY, INSTRUMENT PANEL, LOWER NO.1, PAD SUB-ASSY, INSTRUMENT PANEL, LOWER NO.2, COVER, SPARE SWITCH HOLE, PANEL SUB-ASSY, CONSOLE, UPPER, PANEL SUB-ASSY, CONSOLE, UPPER REAR.
