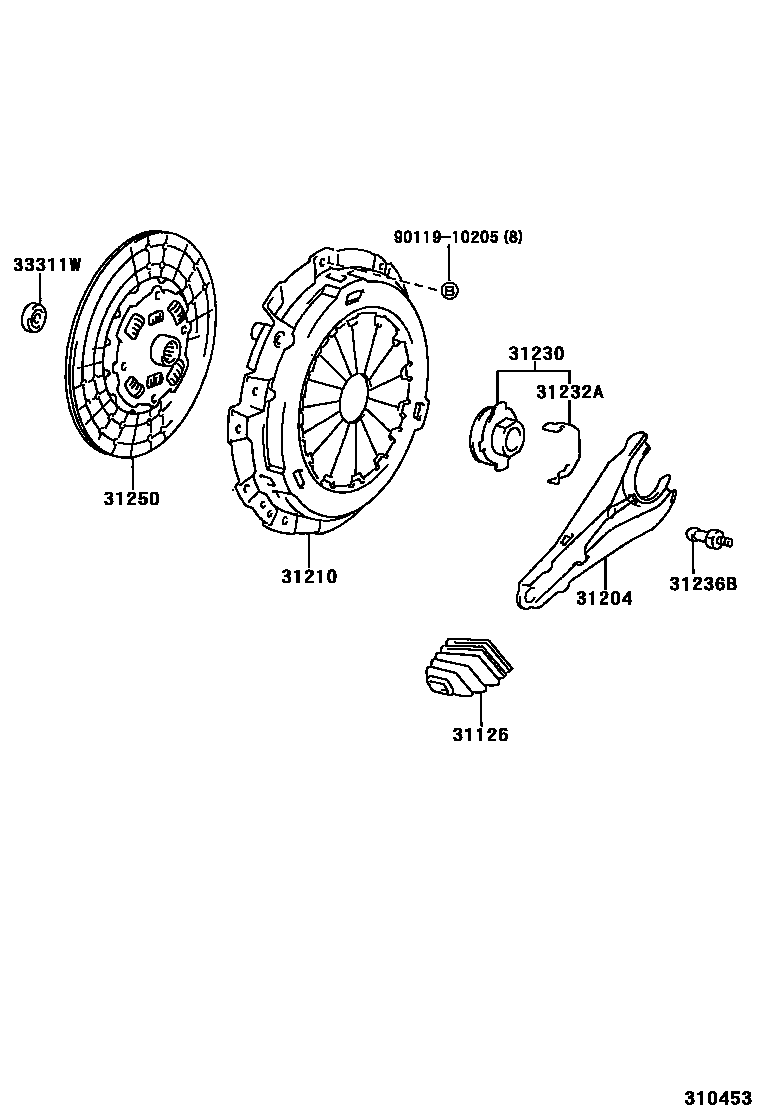

Toyota LAND CRUISER — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-36090i199801-200208

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-36142i199801-200208

31210COVER ASSY, CLUTCH

main31210-36240i199801-200111

main31210-60210i200111-200208

31230BEARING ASSY, CLUTCH RELEASE

main31230-36210i199801-200208

31232ACLIP, RELEASE BEARING HUB

main31232-36030i199801-200208

31236BSUPPORT, RELEASE FORK

main31236-36060i199801-200208

31250DISC ASSY, CLUTCH

main31250-60340i199801-200012

main31250-60341i200012-200108

main31250-60342i200108-200109

main31250-60343i200109-200208

33311WBEARING (FOR INPUT SHAFT)

main90363-15017i199801-200208

9011910205

main90119-10205

9 parts on this diagram · 1 diagram in section

CLUTCH & RELEASE FORK for Toyota LAND CRUISER

This section contains 9 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota LAND CRUISER. Key components include: BOOT, CLUTCH RELEASE FORK, FORK SUB-ASSY, CLUTCH RELEASE, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE, CLIP, RELEASE BEARING HUB.
