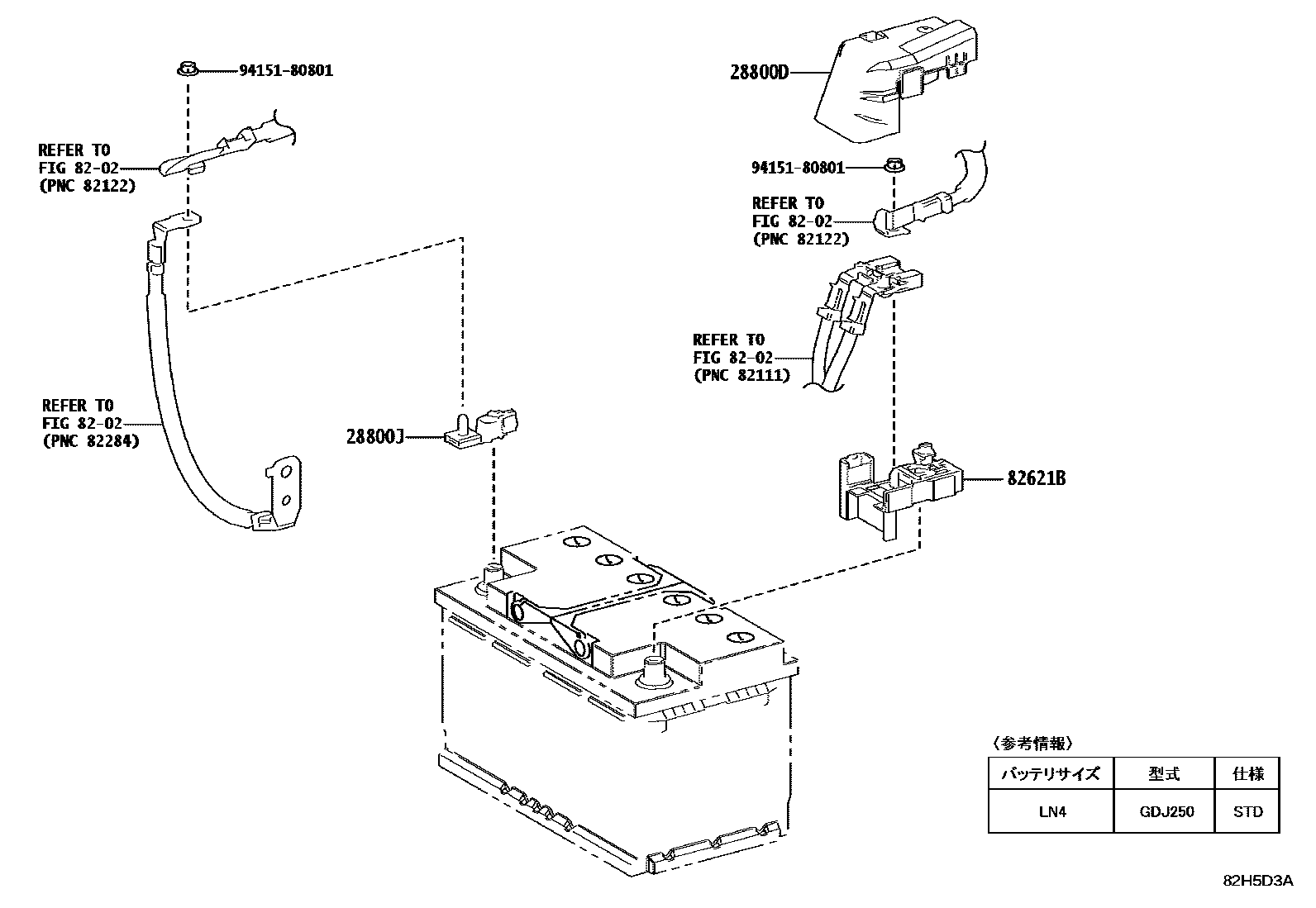

Toyota LAND CRUISER — BATTERY & BATTERY CABLE

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82621-60100i202404

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i202404

8202WIRING & CLAMP

→ Go to FIG 82-02

82621BCOVER, FUSIBLE LINK

main82621-60050i202404

9415180801

main94151-80801

5 parts on this diagram · 2 diagrams in section

BATTERY & BATTERY CABLE for Toyota LAND CRUISER

This section contains 5 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota LAND CRUISER. Key components include: COVER, CONNECTOR(FOR BATTERY TERMINAL), TERMINAL, BATTERY NEGATIVE, WIRING & CLAMP, COVER, FUSIBLE LINK.
