Toyota LAND CRUISER — WINDSHIELD WASHER

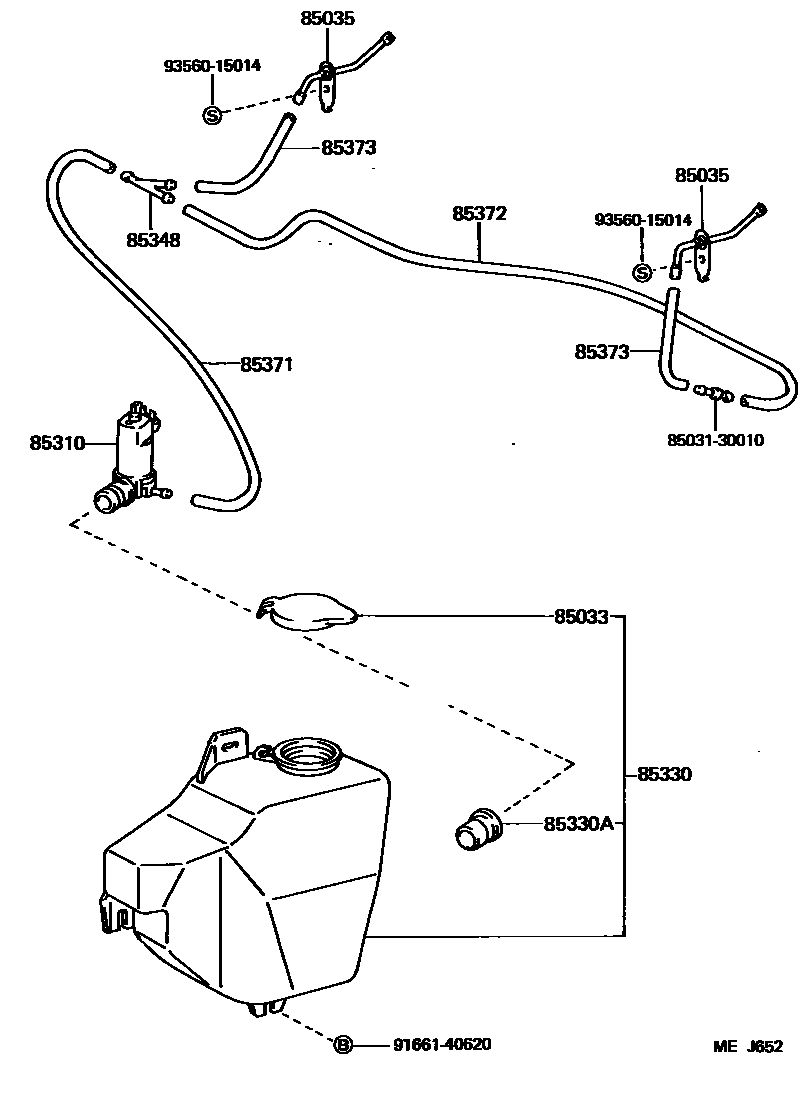

Parts diagram
85033CAP ASSY, WINDSHIELD WASHER
main85332-90A00i198708-199203
85035NOZZLE SUB-ASSY, WASHER
main85341-90A03i198708-199203
LH
main85341-90A04i198708-199203
COLD SPEC,LH; LH
main85341-90A06i198708-199203
RH
main85341-90A07i198708-199203
COLD SPEC,RH; RH
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85310-22080i198708-199203
85330JAR ASSY, WINDSHIELD WASHER
main85330-90A06i198708-199203
85330ABUSH, WINDSHIELD WASHER JAR
main90099-32089i198708-199203
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85348-12250i198708-199203
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90099-33299i198708-199203
L=1000; L=1000,COLD SPEC
main90446-06013i198708-199203
L=1000
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90099-33299i198708-199203
L=1000; L=1000,COLD SPEC
main90446-06013i198708-199203
L=1000
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90099-33299×2i198708-199203
L=1000; L=1000,COLD SPEC
main90446-06013×2i198708-199203
L=1000
8503130010VALVE, HEADLAMP CLEANER WASHER HOSE
main85031-30010
9166140620
main91661-40620
9356015014
main93560-15014

12 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota LAND CRUISER

This section contains 12 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota LAND CRUISER. Key components include: CAP ASSY, WINDSHIELD WASHER, NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
