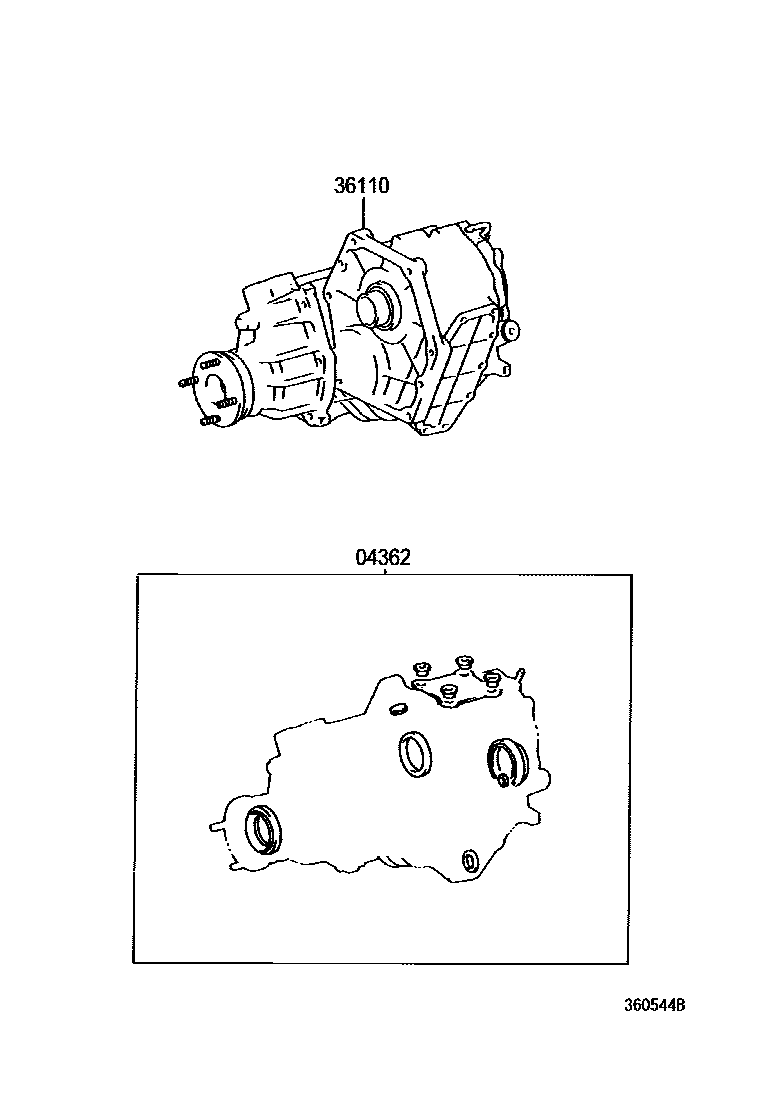

Toyota LAND CRUISER — TRANSFER ASSEMBLY & GASKET KIT
04362GASKET KIT, TRANSFER OVERHAUL
36110TRANSFER ASSY
W(6J DISC WHEEL)
main36120-60030iFJ80,HZJ80..STD..GEN; FJ80..5F..GCC;FJ80..MTM..GX..GEN;FJ80,HZJ80..STD..ARL;HZJ80..MTM..GX..(GCC,GEN); FJ80..LHD..5F..LUB..GX..GEN199001-199201
W(*FGR=41:11 & P235/75R15 TIRE); W(7.50-16 TIRE)
main36120-60031iFZJ80..GX..CBR;FZJ80..SOB..STD..GEN;HZJ80..5F..(GX,STD)..(GCC,GEN);FZJ80,HZJ80..5F..(STD,VX)..(ARL,GCC)199208-199801
W(*FGR=41:11) OR W(235/95R15 TIRE OR 9.00-15 TIRE)
main36120-60041iFZJ80..GX..CBR;FZJ80..SOB..STD..GEN;FZJ80,HZJ80..5F..(STD,VX)..GCC;HZJ80..5F..(GX,STD)..(GCC,GEN)199208-199801
W(9.00-15 OR 235/95R15 OR 245/85R16 TIRE)
W(*FGR=41:11 & 9.00-15 TIRE)
W(PTO DRIVE GEAR & P225/75R15 TIRE); W(PTO DRIVE GEAR & P235/75R15 TIRE)
W(PTO DRIVE GEAR)
main36120-60070iFJ80,HZJ80..STD..GEN; FJ80..5F..GCC;FJ80..MTM..GX..GEN;FJ80,HZJ80..STD..ARL;HZJ80..MTM..GX..(GCC,GEN)199001-199108
W(PTO DRIVE GEAR &7.50-16 TIRE); W(PTO DRIVE GEAR)
main36120-60071iFZJ80..LHD..GX..CBR;FZJ80..LHD..SOB..STD..GEN;HZJ80..5F..(GX,STD)..(GCC,GEN);FZJ80,HZJ80..5F..(STD,VX)..(ARL,GCC)199208-199801
W(PTO DRIVE GEAR)
main36120-60080iFZJ80..GX;FJ80..5F..GCC;FZJ80..SOB..STD..GEN;FZJ80,HZJ80..(STD,VX)..GCC;HZJ80..MTM..(GX,STD)..(GCC,GEN)199001-199208
W(PTO DRIVE GEAR & 9.00-15 OR 235/95R15 OR 245/85R16 TIRE)
W(PTO DRIVE GEAR & 9.00-15 OR 235/95R15 OR 245/85R16 TIRE)
W(PTO DRIVE GEAR & *FGR=41:11 & 235/95R15 OR 9.00-15 TIRE)
main36120-60100iFJ80..5F..GCC;FJ80..4F..LUB;FJ80..SOB..GEN;HZJ80..STD..GEN;HZJ80..LHD..MTM..GX; FJ80..LHD..5F..LUB..GX..GEN199001-199008
W(*MW & *FGR=41:11 & 6J DISC WHEEL); W(*MW)
W(*MW)
main36120-60110iFJ80,HZJ80..STD..GEN; FJ80..5F..GCC;FJ80..4F..LUB;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;HZJ80..MTM..GX..(GCC,GEN); FJ80..LHD..5F..LUB..GX..GEN199008-199201
W(*MW & 7.5-16 OR 9.00-15-6 OR 235/95R15 OR 245/85R/16 TIRE); W(*MW & FGR=41:11 & 7.5-16 OR9.00-15-6 OR 235/95R15 OR 245/85R/16 TIRE); W(*MW)
W(PTO DRIVE GEAR & *MW)
W(*MW & *FGR=41:11)
main36120-60121iHZJ80..LHD..SOB;FZJ80..LHD..GX..CBR;HZJ80..LHD..LUB..GX;FZJ80..5F..(STD,VX)..GCC;FZJ80..LHD..SOB..STD..GEN; HZJ80..RHD..5F..GEN199208-199801
W(*MW & 9.00-15 OR 235/95R15 OR 245/85R16 TIRE); W(PTO DRIVE GEAR & *MW & 9.00-15-6 OR 235/95R15 OR 245/85R16 TIRE)
W(*MW & FGR=41:11 & 235/95 OR 9.00-15 TIRE)
W(*ELC & 215/80R16 TIRE)
main36130-60040iFJ80,FZJ80,HDJ80,HZJ80..5F..VX..GEN; FJ80..STD..ARL;FZJ80..VX..GCC;FJ80..MTM..GX..GEN;FJ80..5F..(GX,VX)..GCC;HZJ80..(STD,VX)..(ARL,GCC);FZJ80,HZJ80..MTM..GX..(GCC,GEN)199001-199208
W(*ELC)
main36130-60041iFZJ80,HDJ80,HZJ80..5F..VX..GEN; FZJ80..GX..CBR;FZJ80..STD..ARL;FZJ80..5F..VX..GCC;HZJ80..RHD..5F..GEN;HZJ80..LHD..GX..GEN;HZJ80..SOB..(ARL,GCC)199208-199801
W(*ELC)
main36130-60050iFZJ80,HDJ80,HZJ80..5F..VX..GEN; FZJ80,HZJ80..VX..GCC;FJ80..5F..(GX,VX)..GCC;FZJ80,HZJ80..MTM..GX..(GCC,GEN)199001-199208
W(*ELC & 9.00-15 OR 235/95R15 OR 245/85R16 TIRE); W(9.00-15 OR 235/95R15 OR 245/85R16 TIRE)
main36130-60051iFZJ80,HDJ80,HZJ80..5F..VX..GEN..(CBR,DSL,TD2); HZJ80..GCC;FZJ80..GX..CBR;HZJ80..RHD..5F..GEN;FZJ80..VX..GCC..CBR;HZJ80..LHD..LUB..GX199208-199801
W(9.00-15 OR 235/95R15 OR 245/85R16 TIRE); W(PART TIME 4WD & 9.00-15 OR 235/95R15 OR 245/85R16 TIRE)
W(*ELC & *FGR=41:11 & 235/95R15 OR 9.00-15 TIRE); W(*FGR=41:11 & 235/95 OR 9-00-15 TIRE)
W(*ELC & PTO DRIVE GEAR & 235/75R15 TIRE)
main36130-60080iHDJ80..LHD..5F;FJ80,HZJ80..STD..ARL;FJ80,FZJ80,HZJ80..MTM..(GX,VX)..(GCC,GEN)199001-199208
W(*ELC & PTO DRIVE GEAR)
main36130-60081iFZJ80..RHD..VX..CBR;FZJ80,HZJ80..STD..ARL;FZJ80..LHD..5F..(GX,VX);HDJ80,HZJ80..5F..(GX,VX)..(GCC,GEN)199208-199801
W(*ELC & PTO DRIVE GEAR)
main36130-60090iHDJ80..LHD..5F;FJ80..5F..(GX,VX)..GCC;FZJ80,HZJ80..MTM..(GX,VX)..(GCC,GEN)199001-199208
W(*ELC & PTO DRIVE GEAR & 9.00-15 OR 235/95R15 OR 245/85R16 TIRE)
W(*ELC & PTO DRIVE GEAR & 9.00-15 OR 235/95R15 OR 245/85R16 TIRE)
W(*ELC & PTO DRIVE GEAR & *FGR=41:11 & 235/75R15 TIRE)
W(*ELC & *MW & 235/75R15 TIRE)
main36130-60120iFJ80..4F..LUB;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FJ80..5F..(GX,VX)..GCC;FJ80,HDJ80..LHD..5F..VX..GEN;FZJ80,HZJ80..MTM..(GX,VX)..(GCC,GEN); HDJ80..RHD..GEN;FJ80..LHD..5F..LUB..GX..GEN199001-199208
W(PTO DRIVE GEAR & *MW); W(PTO DRIVE GEAR OR 9.00-15-6 OR 235/95R15 OR 245/85R16 TIRE)
W(*ELC & *MW)
W(*ELC & *MW & *FGR=41:11)
main36130-60131iFZJ80..RHD..VX..CBR;FZJ80..5F..GCC..EFI;FZJ80..LHD..(GX,VX)..CBR;HDJ80,HZJ80..5F..(GX,VX)..(GCC,GEN)199208-199801
W(*ELC & *MW & 9.00-15 OR 235/95R15 OR 245/85R16 TIRE)
W(*ELC & *MW & *FGR=41:11 & 235/75R15 TIRE)
W(*66)
W(FULL TIME 4WD & 9.00-15-6 OR 235/95R15C-6 OR 245/85R16 TIRE)
W(FULL TIME 4WD)
main36130-60251iFZJ80..5F..GCC..EFI;HDJ80..5F..LUB..TD2;FZJ80,HZJ80..5F..(GX,VX)..(GCC,GEN)..(CBR,DSL)199501-199801
W(FULL TIME 4WD)
main36130-60261iFZJ80..5F..GCC..EFI;HDJ80..5F..LUB..TD2;FZJ80,HZJ80..5F..(GX,VX)..(GCC,GEN)..(CBR,DSL)199501-199801
W(FULLTIME4WD&CENTER DIFFERENTIAL LOCK SWITCH &9.00-15-6 OR 235/95R15C-6 OR245/85R16TIRE)
W(*CDL & PTO DRIVE GEAR)
W(FULL TIME 4WD & PTO DRIVE GEAR)
main36130-60291iFZJ80..5F..GCC..EFI;HDJ80..5F..LUB..TD2;FZJ80..LHD..(GX,VX)..CBR;HZJ80..5F..(GX,VX)..(GCC,GEN)199501-199801
W(*CDL & PTO DRIVE GEAR)
main36130-60341iFZJ80..5F..GCC..EFI;HDJ80..5F..LUB..TD2;FZJ80,HZJ80..5F..(GX,VX)..(GCC,GEN)..(CBR,DSL)199501-199801
W(FULL TIME 4WD & PTO DRIVE GEAR & *MW)
main36130-60351iFZJ80..5F..GCC..EFI;HDJ80..5F..LUB..TD2;FZJ80..LHD..(GX,VX)..CBR;HZJ80..5F..(GX,VX)..(GCC,GEN)199501-199801
W(*MW)
W(235/75R15 TIRE)
W(5.50FX15 DISC WHEEL)
W(9.00-15 OR 235/95R15 OR 245/85R16 TIRE)
W(*ELC & PTO DRIVE GEAR & 235/75R15 TIRE)
W(*ELC & PTO DRIVE GEAR)
W(*ELC & PTO DRIVE GEAR)
W(*ELC & PTO DRIVE GEAR & 9.00-15 OR 235/95R15 OR 245/85R16 TIRE)
W(*ELC & PTO DRIVE GEAR & 9.00-15 OR 235/95R15 OR 245/85R16 TIRE)
W(*ELC & *MW & 235/75R15 TIRE)
W(*ELC & *MW)
W(*ELC & *MW)
W(*ELC & *MW & 9.00-15 OR 235/95R15 OR 245/85R16 TIRE)
W(*ELC & *MW & 9.00-15 OR 235/95R15 OR 245/85R16 TIRE)
W(*CDL & PTO DRIVE GEAR)
W(*CDL & PTO DRIVE GEAR)
W(*66 & PTO DRIVE GEAR)
W(PTO DRIVE GEAR & *MW)
W(*66 & PTO DRIVE GEAR)
W(FULL TIME 4WD & PTO DRIVE GEAR & 9.00-15-6 OR 235/95R15C-6 OR 245/85R16 TIRE)
W(FULL TIME 4WD)
W(ABS)
W(FULL TIME 4WD & PTO DRIVE GEAR)
W(*66 & PTO DRIVE GEAR)
W(FULL TIME 4WD & 9.00-15-6 OR 235/95R15C-6 OR 245/85R16 TIRE)
W(PTO DRIVE GEAR & *MW & 9.00-15-6 OR 235/95R15 OR 245/85R16 TIRE)
W(FULL TIME 4WD & PTO DRIVE GEAR & 9.00-15-6 OR 235/95R15C-6 OR 245/85R16 TIRE)
W(FULL TIME 4WD)
W(FULL TIME 4WD & PTO DRIVE GEAR)
2 parts on this diagram · 1 diagram in section
TRANSFER ASSEMBLY & GASKET KIT for Toyota LAND CRUISER
This section contains 2 genuine Toyota parts for the TRANSFER ASSEMBLY & GASKET KIT system of the Toyota LAND CRUISER. Key components include: GASKET KIT, TRANSFER OVERHAUL, TRANSFER ASSY.
