Toyota LAND CRUISER — SWITCH & RELAY & COMPUTER

0001 1ENGINE & ENGINE ROOM 0002 1ENGINE & ENGINE ROOM 0004 1ENGINE & TRANSMISSION 0005 1ENGINE & TRANSMISSION 0006 1ENGINE & TRANSMISSION 0007 1ENGINE ROOM 0008 1ENGINE ROOM 0009 1FOR PAKISTAN GOVERNMENT 0012 1INSTRUMENT PANEL SW 0013 1INSTRUMENT PANEL SW 0014 1COWL RELAY 0015 1COWL RELAY 0016 1FOR PAKISTAN GOVERNMENT 0019 1COMBINATION SWITCH 0020 1DOOR,FLOOR SW 0021 1AMBIENT SENSOR & COVER

28300RELAY ASSY, STARTER

main28300-17030i22R..RJ70..ARL;1HZ,2H,2LT,3L,1PZ..HJ75,HZJ7#,LJ7#,PZJ7#199001-199305

main28300-54110i1PZ..PZJ70,73;1PZ..PZJ75..4F199305-199401

main28300-56020i1HZ..HZJ70,75..RHD..(PIC,SOT)..GEN..CBU199305-200007

BANGLADESH SPEC

3802

82600FFUSE, FUSE BLOCK

main90080-82012iFZJ79..RHD..CBU200207-200701

10A,RED,(L)

main90080-82013iFZJ75,HZJ75..SA199305-199911

15A,BLUE,(L)

main90080-82014iHZJ79..RHD..CBU200108-200701

20A,YELLOW,(L)

main90080-82015iFZJ79..RHD..CBU200207-200701

7.5A,BROWN,(L)

main90982-09002iFZJ78,79..ARL200108-200207

10A

main90982-09003iFZJ78,79..ARL199908-200108

15A

main90982-09004iFZJ71,74,78,79..STD..GCC199908-200007

20A,YELLOW

main90982-09005iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU199305-200007

7.5A

main90982-10001iFZJ70,HZJ70..ARL;FZJ75..RHD..IV..CBR;FZJ70,PZJ75..(PIC,SOT)..5F199305-199501

30A,PINK

82610ABLOCK ASSY, FUSE

main82610-60060iFJ7#,FZJ70,75,78,79,HDJ7#,HZJ70,73,75,78,79,LJ70,PZJ70,73,RJ70..ARL199001-199305

82611COVER, FUSE BLOCK

main82611-90K00iFJ7#,FZJ70,75,78,79,HDJ7#,HZJ70,73,75,78,79,LJ70,PZJ70,73,RJ70..ARL199001-199305

83391SWITCH, VACUUM

main83391-27060iFJ7#,RJ70..ARL199001-199208

83399BRACKET, VACUUM SWITCH

main83399-60020iFJ7#,RJ70..ARL199001-199208

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iFZJ73,75..(PIC,SOT)..GEN..EFI199305-200405

main83420-20020iFJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#199001-199201

main83420-20030iLJ72..LHD;FZJ7#,HZJ7#,LJ77,79,PZJ7#,RJ7#199208-199305

YAZAKI

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-35020iFZJ74,79..LX..GCC;FZJ71,74,78,79..ARL,GEN199908-200409

main83520-35030iHZJ78..LX;HZJ79..ARL..CBU199908-200108

main83520-35031iHDJ7#,HZJ78,79..ARL,GEN200409-200701

sub83520-35032

main83520-60010iFJ70,PZJ70..ARL;FJ70,75,PZJ70,RJ7#..LX;FJ75,HZJ75,LJ72..ARL,GEN;FJ73,HZJ70,73,LJ70,77,79,PZJ73,75..HT,PIC199001-199005

main83520-60011iHZJ75..ARL,GEN;HZJ75,PZJ70..LHD..LX;FZJ7#,HZJ70,LJ7#..ARL,GCC,GEN199305-199401

main83520-60030iRJ7#199208-199305

main83520-60050iFZJ78,79..ARL200409-200605

sub83520-60051

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iRJ7#..STD199001-199208

sub83530-28030

main83530-14070iRJ7#..STD199208-199305

sub83530-28010

main83530-30060iFZJ75..RHD..IV..CBR;FZJ70,PZJ75..(PIC,SOT)..5F199305-199501

main83530-60020iFZJ71,78..GCC;FZJ71,78..RHD..GEN;FZJ74,79..(PIC,SOT)..CBU199908-200701

main83530-60030iHZJ78..LX;HZJ79..ARL..CBU199908-200108

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040×2iFZJ7#..GCC199305-199908

sub84210-52050

main84210-60021iHZJ70..ARL199305-199501

main84210-60030iFZJ70..SOT;FZJ70..EFI;FZJ75..RHD..IV..CBR199305-199501

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-12010iFZJ70,75..GEN..CBU..EFI199305-200106

TYPE A:REFER TO ILLUSTRATION

main84222-60022iHZJ78..LX;HZJ79..ARL..CBU199908-200108

TYPE B:REFER TO ILLUSTRATION

84222CSWITCH, TRANSFER INDICATOR, NO.3

main84222-12010iFZJ7#..ARL,GCC,GEN199305-199501

main84222-60041iLJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..GEN199501-199604

85440ASOLENOID ASSY, FOUR WHEEL DRIVE CONTROL

main85440-60140iHZJ75..ARL;HZJ75..GEN..IV;HZJ70,KZJ77,LJ72,PZJ73,75..RHD;HZJ75,LJ79,PZJ70..RHD..HT..STD..GEN199305-199401

W(ONE TOUCH 2-4 SELECTOR)

main85440-60150iLJ7#..LHD199305-199604

W(ONE TOUCH 2-4 SELECTOR)

main85440-60160iPZJ70..SOT;HZJ75..RHD..PIC..5F..GEN..CBU199108-199305

24V,W(ONE TOUCH 2-4 SELECTOR)

main85440-60170iPZJ70,75..LHD199305-199401

main85440-60190iLJ79..LHD;LJ72..LHD..HT..STD199108-199305

12V,W(ONE TOUCH 2-4 SELECTOR)

main85440-60200iRJ77..RHD199305-199604

85931RELAY, EMISSION CONTROL

main85931-16010iRJ70..ARL199001-199108

89426ABRACKET, VACUUM SENSOR

main89426-60010iPZJ70,73;PZJ75..4F;RJ70..SOT199305-199401

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-20050iRJ70..ARL199001-199108

main89428-60070iFJ7#..5F..GCC199001-199108

ENGINE

main89428-60080iFZJ7#..GCC199201-199305

89593SENSOR, AIR CLEANER WARNING

main89593-26010iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU199305-200007

main89593-60010iFZJ75..IV199909-200401

main89593-60030iHZJ78..STD;HDJ7#,HZJ71;HZJ79..GCC,GEN;HZJ79..ARL..IV199908-200701

main89593-60040iFZJ71,74,78,79199908-200207

89620IGNITER ASSY

main89620-60090iRJ70..ARL199001-199108

main89621-16020iFZJ70,75..EFI199305-199406

main89621-26010iFZJ73,75..(PIC,SOT)..GEN..EFI199406-200405

main89621-60010iFZJ7#..CBR199201-199305

8271160010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60010

9011906157

main90119-06157

9017908066

main90179-08066

9017908204

main90179-08204

9043018008

main90430-18008

9046108312

main90461-08312

9046400073

main90464-00073

9046400154

main90464-00154

9161160616

main91611-60616

9165140614

main91651-40614

9165140616

main91651-40616

9165640816

main91656-40816

9165640820

main91656-40820

9331616016

main93316-16016

9338515020

main93385-15020

9461110800

main94611-10800

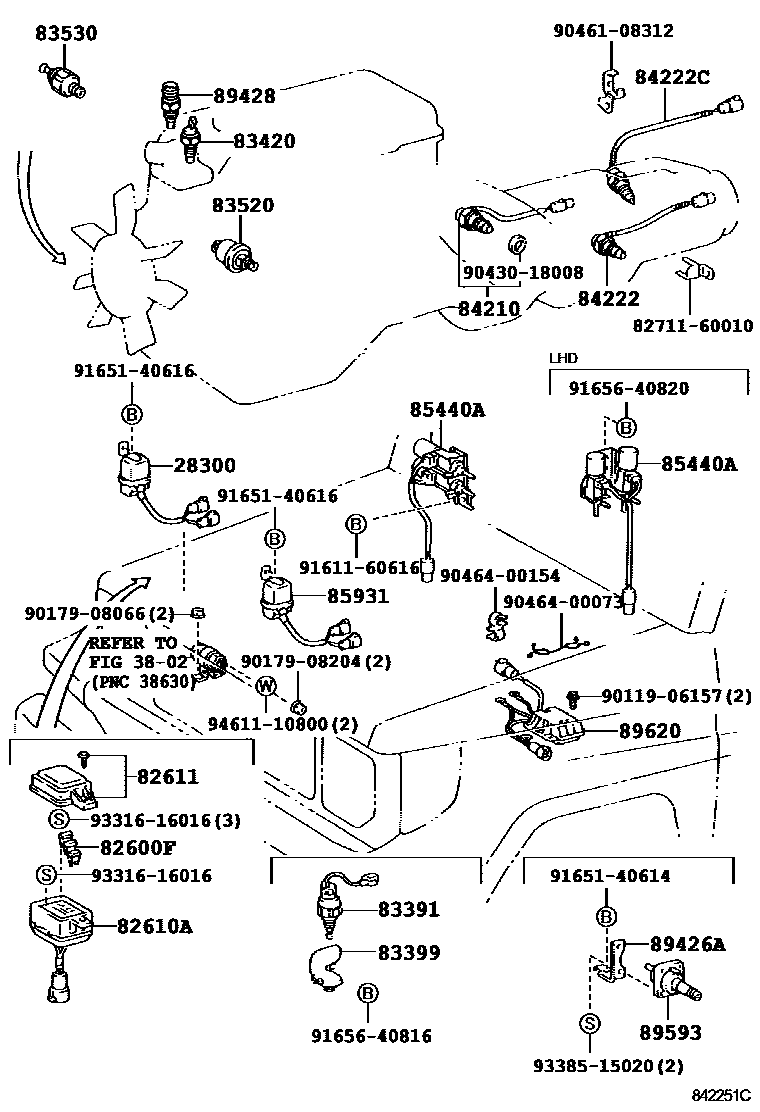

35 parts on this diagram · 16 diagrams in section
