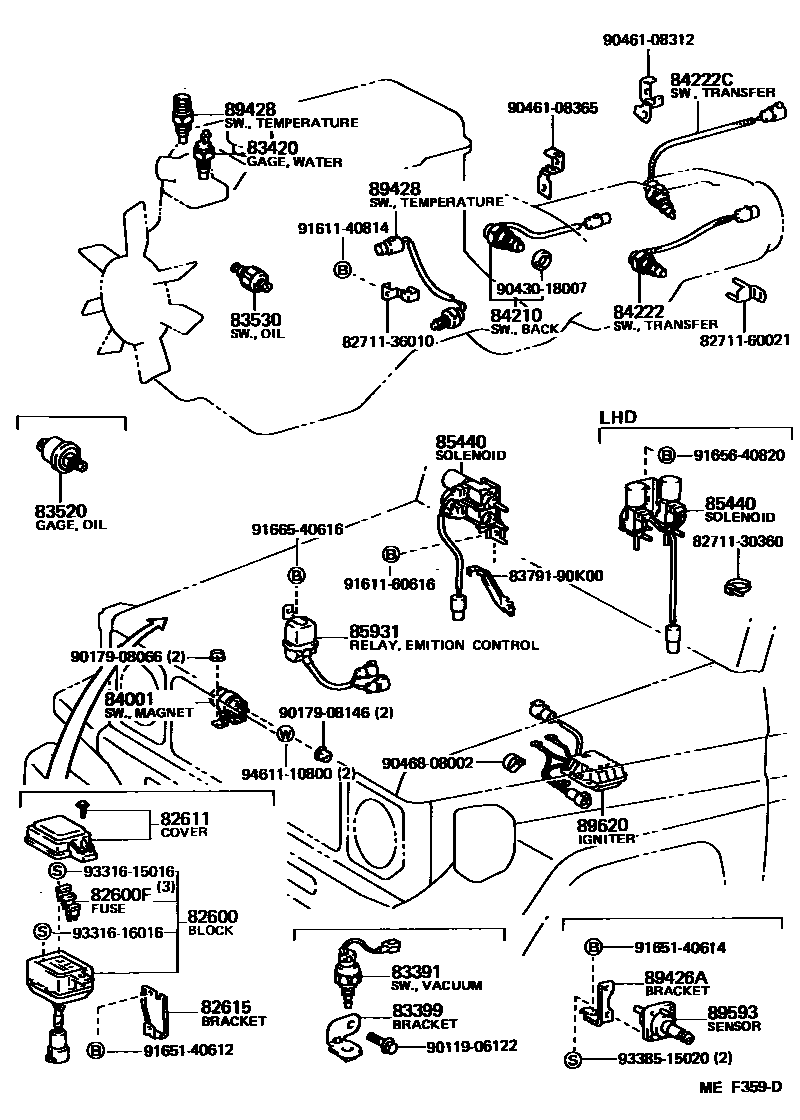

Toyota LAND CRUISER — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

82600BLOCK ASSY, FUSE

main82610-90K02iBJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL198608-199001

82600FFUSE, FUSE BLOCK

main90080-82012×4iFJ75,HJ75..SA198909-199001

10A,RED,10A

main90080-82013×3iFJ75,HJ75..SA198909-199001

15A,BLUE,15A

main90080-82014×3iFJ75,HJ75..SA198909-199001

20A,YELLOW,20A

main90080-82015×2iFJ75,HJ75..SA198909-199001

7.5A,BROWN,7.5A

main90982-09002×5iFJ75,HJ75..ARL,GEN,ME198909-199001

10A,10A

main90982-09003×4iFJ75,HJ75..ARL,GEN,ME198909-199001

15A,15A

main90982-09004×4iFJ75,HJ75..ARL,GEN,ME198909-199001

20A,YELLOW,20A

main90982-09005×2iFJ75,HJ75..ARL,GEN,ME198909-199001

7.5A,7.5A

82611COVER, FUSE BLOCK

main82611-90K00iBJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL198608-199001

82615BRACKET, FUSE

main82615-90K00iBJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL198608-199001

83391SWITCH, VACUUM

main83391-12091iFJ7#..ARL198411-198510

main83391-60010iFJ7#,RJ70..ARL198510-199001

sub83391-27050

83399BRACKET, VACUUM SWITCH

main83399-20070iFJ7#..ARL198411-198510

sub83399-27040

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60010iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-198510

sub83520-60011

main83520-60020iBJ70..RHD..SOT;BJ70..RHD..5F..GEN198411-198608

24V

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14010iRJ70..GEN,ME198411-198503

main83530-14030iRJ70..GEN,ME198503-198608

sub83530-28030

main83530-30060iFJ70,75..ME;FJ73..SOT..ME198503-198608

sub83530-60030

main83530-36011iBJ70,75,FJ7#,HJ75,LJ70..GEN198411-198503

84001SWITCH ASSY, MAGNET

main38630-60080iBJ70,73,75,FJ7#,HJ75..GEN,ME198411-199001

main38630-60100iLJ70..GEN198411-199001

main38630-60110iRJ70..GEN,ME198411-199001

84210SWITCH ASSY, BACK-UP LAMP

main84210-60021iBJ7#,FJ7#,HJ75,LJ70,RJ70..MTM198411-199001

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-60021iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

84222CSWITCH, TRANSFER INDICATOR, NO.3

main84222-60040iFJ73..LX,STD;FJ73..4FC..VX;FJ73..5F..VX..ME;BJ7#,FJ70,75,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

sub84222-60041

85440SOLENOID ASSY, FRONT DRIVE

main85440-60030iBJ7#,HJ75,LJ70..RHD..(ARL,GEN)198411-198708

main85440-60040iLJ70,RJ70..LHD198411-198708

main85440-60050iBJ70..RHD..SOT198608-198708

24V

main85440-60060iBJ70,75,FJ7#,HJ75..LHD198411-198708

main85440-60110iFJ7#,RJ70..RHD..(ARL,GEN)198411-198708

main85440-60140iBJ7#,HJ75,LJ70..RHD..(ARL,GEN)198708-199001

main85440-60150iLJ70,RJ70..LHD198708-199001

main85440-60160iBJ70..RHD..SOT198708-199001

24V

main85440-60170iBJ70,75,FJ7#,HJ75..LHD198708-199001

main85440-60200iFJ7#,RJ70..RHD..(ARL,GEN)198708-199001

85931RELAY, EMISSION CONTROL

main85931-16010iRJ70..ARL198411-199001

89426ABRACKET, VACUUM SENSOR

main89426-60010iLJ70..DSL;LJ70..ARL;LJ70..LHD..TD;BJ7#,FJ7#,HJ75,RJ70198510-198608

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-14040iFJ7#..5F..ME198411-198608

ENGINE

main89428-20050iRJ70..ARL198411-199001

ENGINE

main89428-36010iBJ74,FJ70,73..4FC198411-199001

TRANSMISSION

main89428-60050iFJ7#..5F..ME198608-199001

ENGINE

89593SENSOR, AIR CLEANER WARNING

main89421-36020iBJ7#,HJ75198411-198502

main89421-60010iFJ7#198411-198502

main89593-26010iBJ7#,HJ75198502-198510

main89593-60010iFJ7#..ARL,GEN,ME198608-199001

89620IGNITER ASSY

main89620-60080iRJ70..ARL198411-198510

main89620-60090iRJ70..ARL198510-199001

8271130360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-30360

8271136010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-36010

8271160021WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60021

8379190K00

main83791-90K00

9011906122

main90119-06122

9017908066

main90179-08066

9017908146

main90179-08146

9043018007

main90430-18007

9046108312

main90461-08312

9046108365

main90461-08365

9046808002

main90468-08002

9161140814

main91611-40814

9161160616

main91611-60616

9165140612

main91651-40612

9165140614

main91651-40614

9165640820

main91656-40820

9166540616

main91665-40616

9331615016

main93316-15016

9331616016

main93316-16016

9338515020

main93385-15020

9461110800

main94611-10800

40 parts on this diagram · 10 diagrams in section
