Toyota LAND CRUISER — ROOF PANEL & BACK PANEL

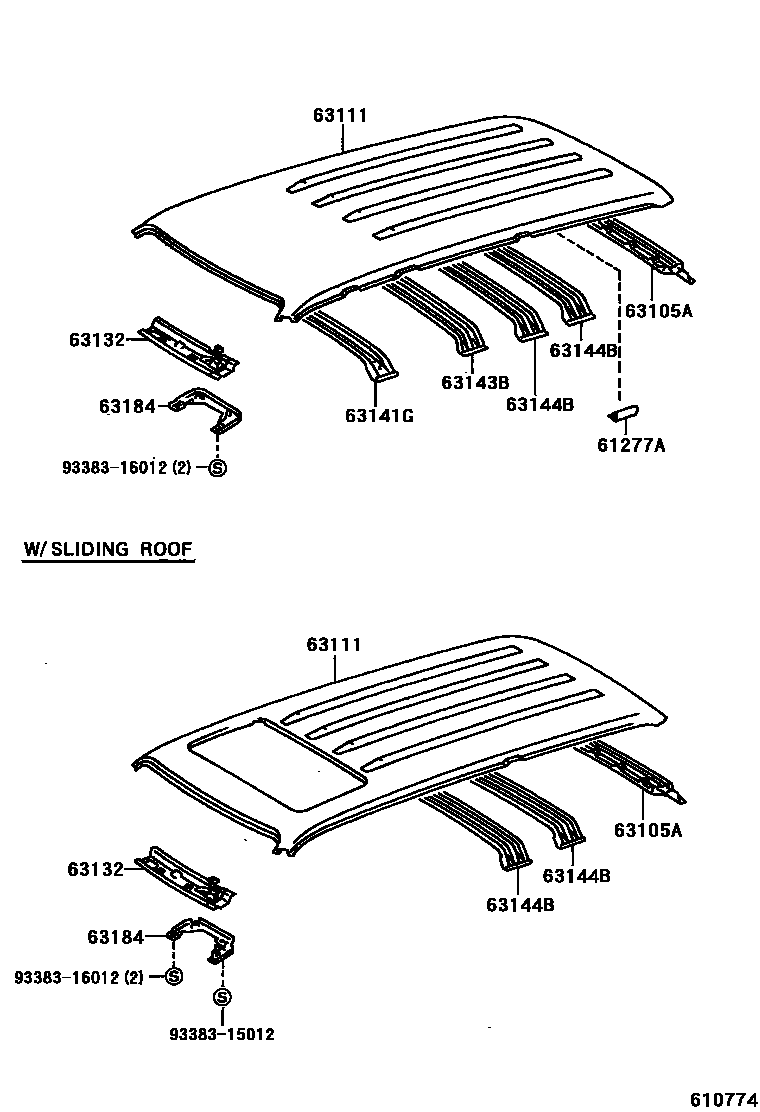

Parts diagram
61277AJOINT, ROOF DRIP CHANNEL
main61277-60010×2i199001-199103
main61277-90K00×2i199103-199208
63105AFRAME SUB-ASSY, BACK DOOR OPENING
main63105-60040i199001-199208
W/O(3RD SEAT) & W(*RWD) OR W/O(3RD SEAT) & W(*MR); W/O(3RD SEAT) & W(*RWD) OR W/O(3RD SEAT) & W(*MR) OR W/O(3RD SEAT) & W(ACCESSORY METER)
main63105-60060i199001-199201
W(3RD SEAT & ACCESSORY METER)
main63105-60081i199603-199608
MALAYSIA SPEC OR INDONESIA SPEC
main63105-60090i199208-199501
W(3RD SEAT)
main63105-60100i199001-199208
W(*MR & ACCESSORY METER); W(ACCESSORY METER & DUAL *AIC); W/O(3RD SEAT) & W(*RWD & *MR); W/O(3RD SEAT) & W(*RWD & MOON ROOF); W/O(3RD SEAT) & W(BODY RUST PROTECTING) OR W/O(3RD SEAT) & W(*RWD & *MR)
main63105-60130i199501-199801
W(3RD SEAT)
main63105-60140i199501-199603
main63105-60141i199603-199801
main63105-60160i199603-199901
63111PANEL, ROOF
main63014-60010i199208-199501
W(*MR)
main63014-60020i199208-199501
W(*MR & *RWD); W(*MR)
main63014-60030i199001-199208
W(*MR & ROOF CARRIER)
main63014-60040i199208-199801
W(*MR & ROOF CARRIER)
main63014-60050i199001-199201
W(*MR & ACCESSORY METER & *AIC(DUAL) & 3RD TRANSVERSE SEAT)
main63014-60060i199208-199603
W(*MR & ROOF CARRIER)
main63014-60080i199208-199501
W(*MR & GPS)
main63014-60090i199208-199501
W(*MR & *RWD & GPS); W(*MR & GPS)
main63014-60100i199603-199801
W(*MR)
main63014-60110i199603-199801
W(*MR & ROOF CARRIER)
main63111-60040i199001-199208
W(ROOF CARRIER)
main63111-60050i199208-199501
W(*RWD & ROOF CARRIER); W(ROOF CARRIER & *RWD)
main63111-60110i199001-199208
W(ROOF CARRIER)
main63111-60180i199501-199801
main63111-60190i199208-199501
W(*RWD); W(ACCESSORY METER & *AIC(DUAL))
main63111-60200i199001-199208
W(ACCESSORY METER & *AIC(DUAL))
main63111-60250i199208-199501
W(*RWD & GPS); W(GPS & SUB FUEL)
main63111-60260i199208-199501
W(GPS & SUB FUEL)
main63111-60310i199603-199801
W(ROOF CARRIER)
main63111-60340i199603-199801
63132PANEL, WINDSHIELD HEADER, INNER
main63102-60020i199001-199106
main63102-60021i199106-199208
main63102-60022i199801-199909
main63102-60030i199003-199106
W(ACCESSORY METER)
main63102-60031i199106-199208
W(*MR OR ACCESSORY METER); W(ACCESSORY METER)
main63102-60032i199501-199608
W(*MR) OR W(ACCESSORY METER); W(*MR) OR W(ACCESSORY METER) OR W(GPS); W(ACCESSORY METER)
63141GREINFORCEMENT, ROOF PANEL, NO.1
main63141-60010i199001-199208
63143BREINFORCEMENT, ROOF PANEL, NO.3
main63143-60010i199608-199801
W(ACCESSORY METER),FR
main63144-60010i199608-199801
W(ACCESSORY METER),RR
63144BREINFORCEMENT, ROOF PANEL, NO.4
main63106-60030i199001-199208
W(ACCESSORY METER)
main63106-60031i199608-199801
W(*MR & ACCESSORY METER),RR; W(ACCESSORY METER),RR
main63144-60010×2i199208-199501
W(ACCESSORY METER & DUAL *AIC); W(ACCESSORY METER &DUAL *AIC); W(ROOF CARRIER)
63184BRACKET, ROOF CONSOLE, REAR
main63184-60010i199501-199608
W(ACCESSORY METER); W(ACCESSORY METER) OR W(GPS)
main63184-60020i199208-199801
W(*MR)
9338315012
main93383-15012
9338316012
main93383-16012

10 parts on this diagram · 3 diagrams in section

ROOF PANEL & BACK PANEL for Toyota LAND CRUISER

This section contains 98 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota LAND CRUISER. Key components include: JOINT, ROOF DRIP CHANNEL, FRAME SUB-ASSY, ROOF RACK, UPPER END, FRAME SUB-ASSY, ROOF RACK, LOWER FRONT RH, FRAME SUB-ASSY, ROOF RACK, LOWER FRONT LH, FRAME SUB-ASSY, BACK DOOR OPENING.
