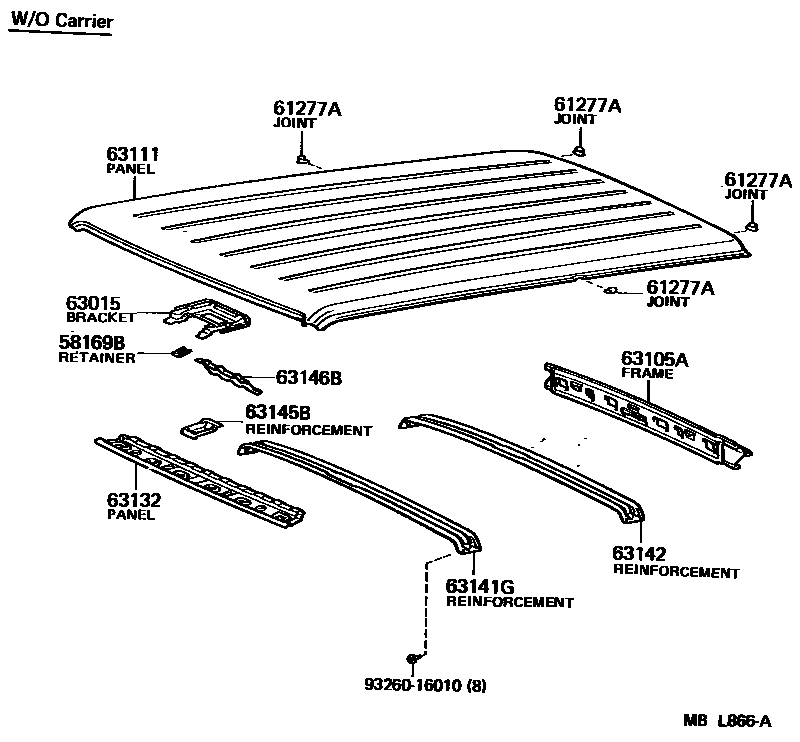

Toyota LAND CRUISER — ROOF PANEL & BACK PANEL
58169BRETAINER, REAR HEATER MOUNTING
main58169-90A00×2iHJ6#..LUB;FJ62..SOB..VX;FJ62..4F..SOB..GX;FJ62..(4F,4FC)..LUB;FJ62..5F..LUB..VX..ME;FJ62..5F..(GX,VX)..(ARL,GEN)198708-199203
61277AJOINT, ROOF DRIP CHANNEL
63015BRACKET SUB-ASSY, ROOF CONSOLE
main63015-90A00iHJ6#..SRF..LUB;FJ62..5F..SRF..VX;FJ62..4F..SRF..SOB..GX;FJ62..(4F,4FC)..SRF..LUB;FJ62..5F..SRF..GX..(ARL,GEN)198708-199203
63105AFRAME SUB-ASSY, BACK DOOR OPENING
W(MAGNET LOCK)
63111PANEL, ROOF
W(ROOF CARRIER)
W(SUN ROOF)
63132PANEL, WINDSHIELD HEADER, INNER
63141GREINFORCEMENT, ROOF PANEL, NO.1
63142REINFORCEMENT, ROOF PANEL, NO.2
W(SUN ROOF)
63145BREINFORCEMENT, WINDSHIELD HEADER PANEL
63146BREINFORCEMENT, WINDSHIELD HEADER PANEL, NO.2
9326016010
main93260-16010
11 parts on this diagram · 6 diagrams in section
ROOF PANEL & BACK PANEL for Toyota LAND CRUISER
This section contains 104 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota LAND CRUISER. Key components include: RETAINER, REAR HEATER MOUNTING, JOINT, ROOF DRIP CHANNEL, BRACKET SUB-ASSY, ROOF CONSOLE, REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4 A, FRAME SUB-ASSY, ROOF RACK, UPPER END.
