Toyota LAND CRUISER — PARTIAL ENGINE ASSEMBLY

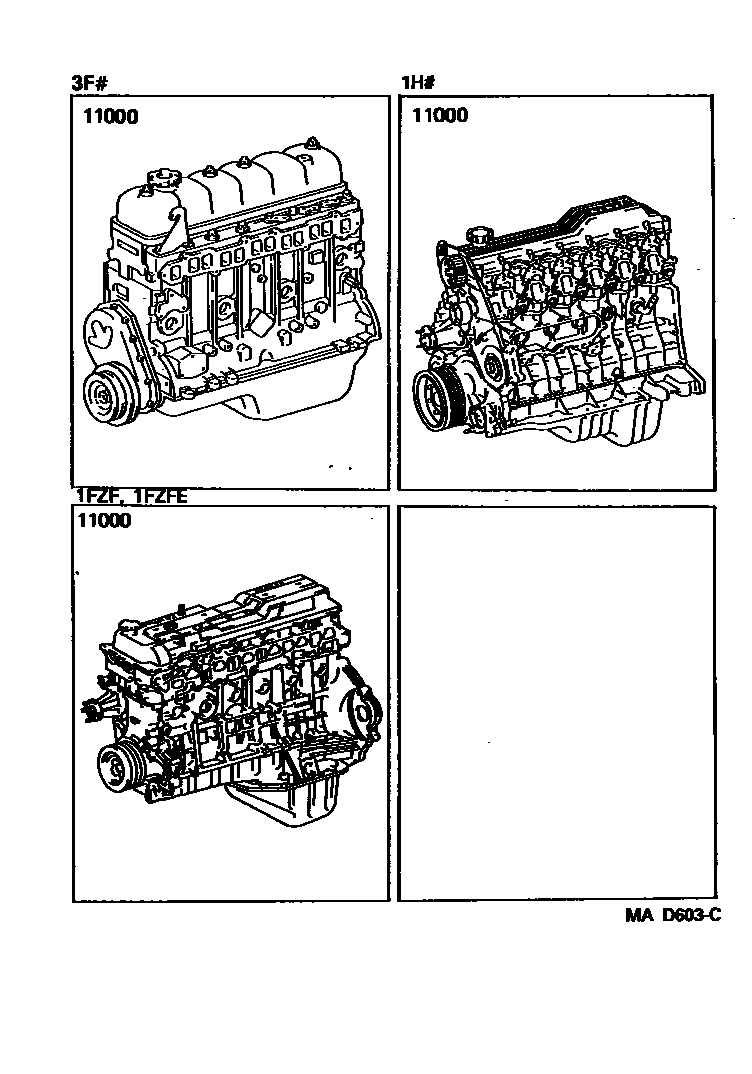

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-17010i199001-199208
W(POWER STEERING & HEATER)
main19000-17011i199208-199411
W(POWER STEERING & HEATER)
sub91622-G1014
main19000-17012i199411-199501
W(POWER STEERING & HEATER)
sub19000-17013
sub90345-52003
main19000-17020i199001-199208
W(HEATER)
main19000-17021i199208-199411
W(HEATER)
sub91622-G1014
main19000-17022i199411-199501
W(HEATER)
sub19000-17023
sub90345-52003
main19000-17030i199001-199208
W(POWER STEEING)
main19000-17031i199208-199411
W(POWER STEERING)
sub91622-G1014
main19000-17032i199411-199501
W(POWER STEEING)
sub19000-17033
sub90345-52003
main19000-17040i199001-199208
main19000-17041i199208-199411
sub91622-G1014
main19000-17042i199411-199501
sub19000-17043
sub90345-52003
main19000-17060i199108-199208
main19000-17061i199208-199307
main19000-17062i199307-199411
sub91622-G1014
main19000-17063i199411-199501
sub19000-17064
sub90345-52003
main19000-17130i199001-199208
sub19000-17134
sub19000-17350
sub91622-G1014
main19000-17131i199208-199210
main19000-17132i199210-199411
sub91622-G1014
main19000-17133i199501-199705
sub90345-52003
main19000-17135i199411-199501
sub19000-17137
sub90345-52003
main19000-17138i199705-199801
sub15407-17020
main19000-17139i199801-200103
main19000-17220i199208-199210
main19000-17221i199210-199411
sub91622-G1014
main19000-17222i199411-199501
sub19000-17223
sub90345-52003
main19000-17390i199501-199705
sub90345-52003
main19000-17391i199705-199801
main19000-17392i199801-200103
main19000-17400i199501-199608
W(POWER STEERING & HEATER)
sub90345-52003
main19000-17401i199705-199801
W(POWER STEERING & FR HEATER)
main19000-17402i199801-200103
W(POWER STEERING & FR HEATER)
main19000-17410i199501-199705
sub90345-52003
main19000-17411i199705-199801
main19000-17420i199501-199705
sub90345-52003
main19000-17421i199705-199801
main19000-17450i199501-199705
W(POWER STEEING)
sub90345-52003
main19000-17451i199705-199801
W(POWER STEEING)
main19000-17452i199801-200103
W(POWER STEEING)
main19000-17460i199505-199705
COLD AREA SPEC
sub90345-52003
main19000-17461i199705-199801
COLD AREA SPEC
main19000-17470i199501-199705
W(HEATER)
sub90345-52003
main19000-17471i199705-199801
W(FR HEATER)
main19000-17472i199801-200103
W(FR HEATER)
main19000-17490i199501-199605
main19000-17491i199605-199705
sub90345-52003
main19000-17492i199705-199801
sub19000-17493
sub15407-17020
main19000-17530i199501-199505
COLD AREA SPEC
sub19000-17531
sub90345-52003
main19000-61390i199001-199208
main19000-61400i199001-199201
W/O(EX.EMISSION CONTROL)
main19000-61410i199001-199201
EXHAUST EMISSION CONTROL(LOW OCTANE)
main19000-61420i199001-199208
main19000-66020i199208-199510
LOW OCTANE SPEC
sub12315-66022
sub82123-60111
sub90910-09075
main19000-66021i199711-199801
LOW OCTANE OR CHINESE SPEC
sub11409-66030
sub15301-66020
sub16210-66020
main19000-66022i199801-200109
LOW OCTANE OR CHINESE SPEC
main19000-66030i199208-199711
sub12315-66022
sub82123-60111
sub90910-09075
main19000-66031i199711-199801
sub11409-66030
sub15301-66020
sub16210-66020
main19000-66032i199801-199901
main19000-66070i199208-199711
sub12315-66022
sub82123-60111
sub90910-09075
main19000-66071i199711-199801
sub19000-66072
sub11409-66030
sub15301-66020
sub16210-66020
main19000-66080i199208-199711
sub90910-09075
main19000-66081i199711-199801
sub11409-66030
sub15301-66020
sub16210-66020
main19000-66082i199801-199901
main19000-66092i199901

1 parts on this diagram · 1 diagram in section
