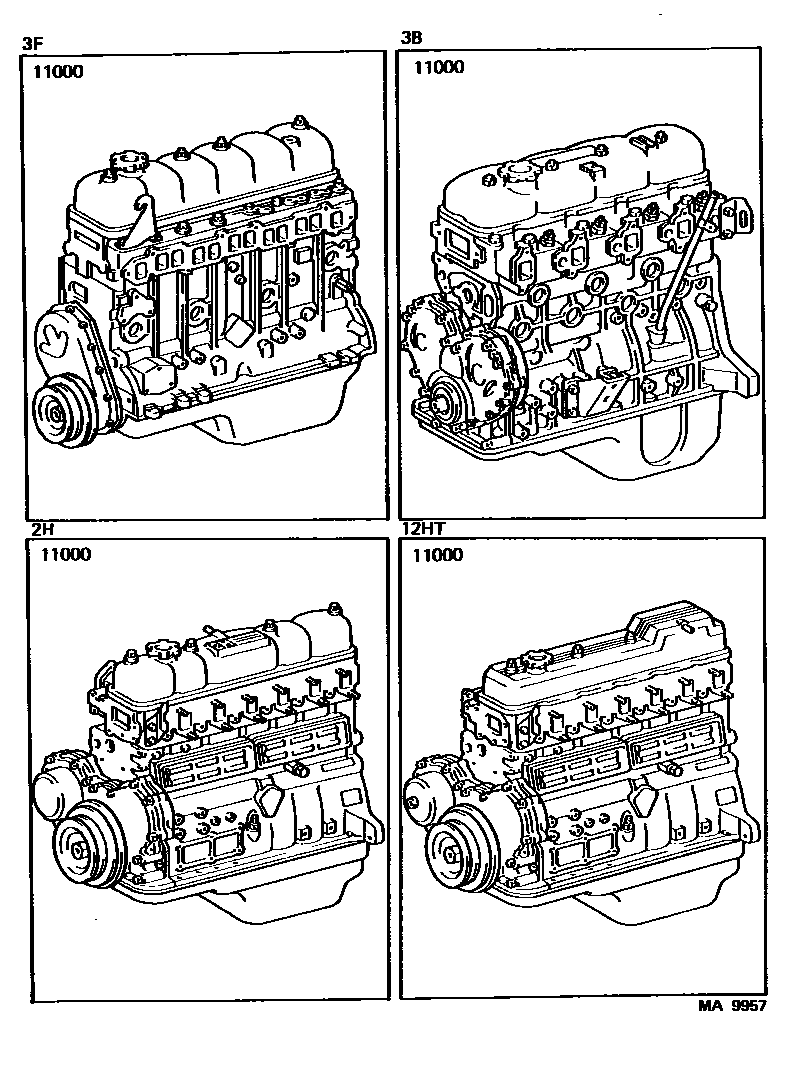

Toyota LAND CRUISER — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-58500i3B..BJ60198808-198910

sub12129-56010

sub93385-16014

main19000-58501i3B..BJ60198910-199001

sub19000-58511

main19000-61320i3F..FJ62..GEN198708-198910

main19000-61321i3F..FJ62..GEN198910-199001

main19000-61322i3F..FJ62199001-199203

main19000-61330i3F..FJ62..LHD..GEN198708-198910

LOW OCTANE SPEC

main19000-61331i3F..FJ62..LHD..GEN198910-199001

LOW OCTANE SPEC

main19000-61332i3F..FJ62199001-199203

LOW OCTANE SPEC

main19000-61340i3F..FJ62..GEN198708-198910

PLENTIFULLY LEADED FUEL SPEC

main19000-61341i3F..FJ62..ARL,ME198910-199001

PLENTIFULLY LEADED FUEL SPEC

main19000-61342i3F..FJ62199001-199203

PLENTIFULLY LEADED FUEL SPEC

main19000-68120i2H..HJ60..GEN,ME198708-199001

sub19000-68121

main19000-68130i2H..HJ60..ARL198708-199001

sub19000-68131

main19000-68170i12HT..HJ61198708-199001

main19000-68240i2H..HJ60..STD..GEN198708-198808

AIR CONDITIONER(DUAL,LOW ROOF)

1 parts on this diagram · 1 diagram in section
