Toyota LAND CRUISER — PARTIAL ENGINE ASSEMBLY

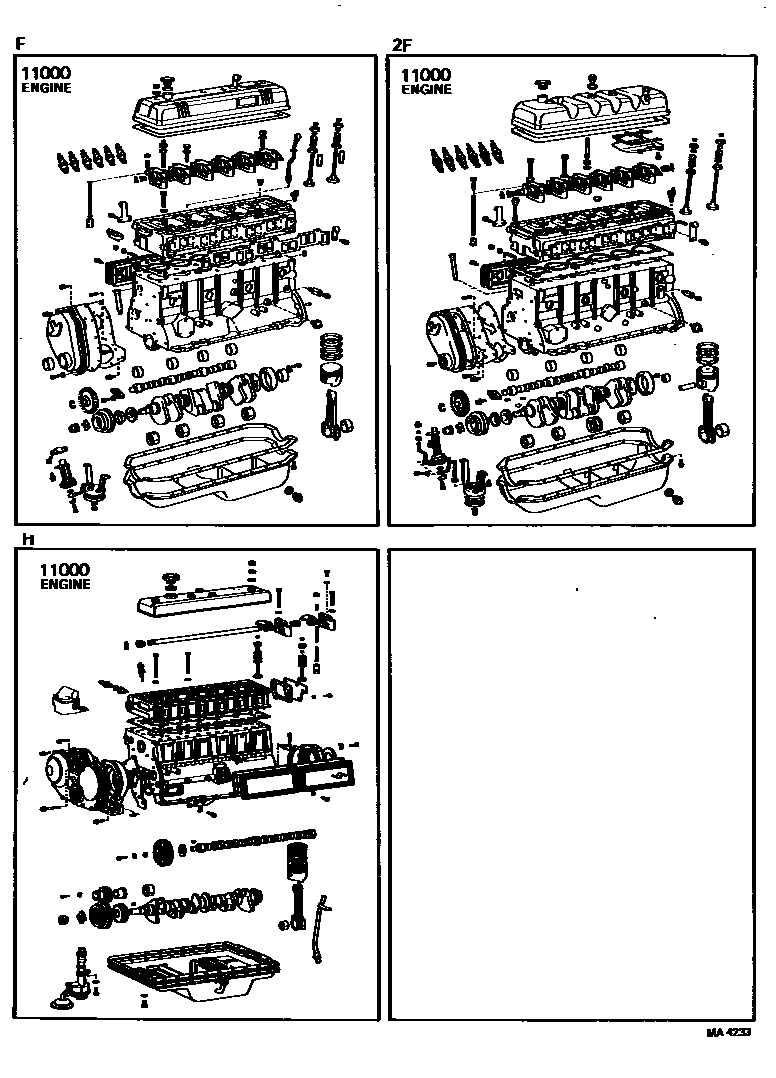

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-47020i197204-197306

main19000-47021i197306-197709

main19000-47022i197709-198007

main19000-47040i197604-197709

main19000-47041i197709-198007

main19000-56020i197402-197709

main19000-56021i197709-197811

24V

main19000-56022i197811-197901

24V

main19000-56041i197709-197811

12V

main19000-56042i197811-197901

12V

main19000-56070i197901-198004

main19000-56071i198004-198007

main19000-60012i196909-197209

main19000-60021i196903-196909

main19000-60051i196909-197209

main19000-60052i197209-197309

main19000-60054i197309-197501

main19000-60060i196903-196909

main19000-61010i197501-197601

main19000-61011i197601-197608

main19000-61012i197608-197901

main19000-61022i197901-198007

HONG KONG SPEC.

main19000-61032i197901-198007

main19000-61060i197501-197601

FOR LOW-OCTANE

main19000-61061i197601-197608

FOR LOW-OCTANE

main19000-61062i197608-197901

FOR LOW-OCTANE

main19000-61080i197608-197901

main19000-61090i197608-197804

NEW SOUTH WALES

1 parts on this diagram · 2 diagrams in section

PARTIAL ENGINE ASSEMBLY for Toyota LAND CRUISER

This section contains 1 genuine Toyota parts for the PARTIAL ENGINE ASSEMBLY system of the Toyota LAND CRUISER. Key components include: ENGINE ASSY, PARTIAL.
