Toyota LAND CRUISER — PARTIAL ENGINE ASSEMBLY

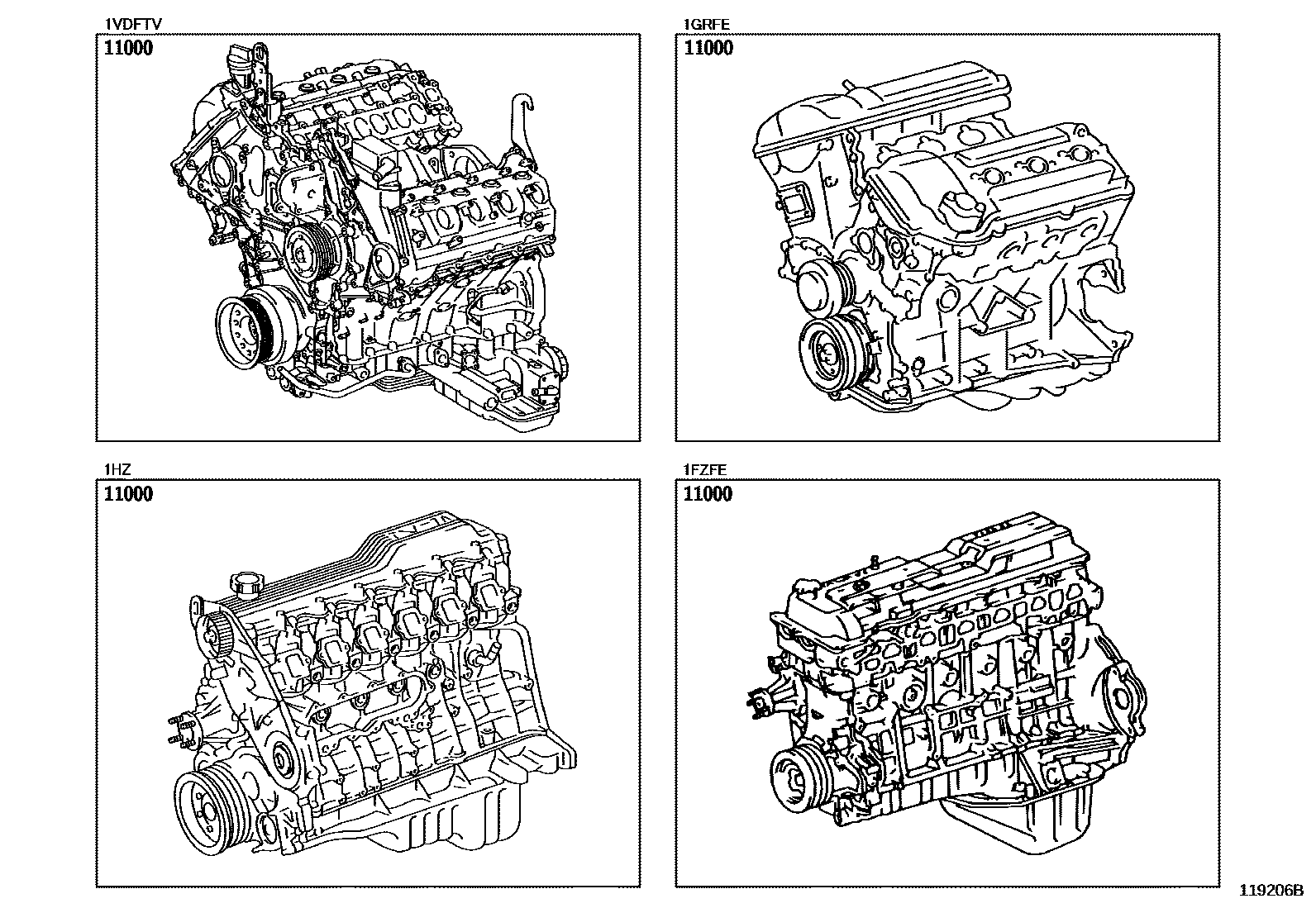

11000ENGINE ASSY, PARTIAL
main19000-11F00i1GDFTV..GDJ7#..6FC..GCC; 1GDFTV..GDJ71..GCC; 1GDFTV..GDJ76,79,L7#..6FC..ARL; 1GDFTV..GDJ78,79..6FC..STD..GCC; 1GDFTV..GDJ79..6FC..STD..GCC;1GDFTV..GDJ71,76,78..6FC..GCC; 1GDFTV..GDJ79..DCB..6FC..LX..CBU;1GDFTV..GDJ7#..(HT,PIC)..6FC..GCC202309
BAHRAIN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS); IRAQ SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS); JORDAN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS); KUWAIT SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS); OMAN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS); QATAR SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS); SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS); YEMEN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
main19000-11F60×2i1GDFTV..GDJ76,78,79..RHD..5F..CBU; 1GDFTV..GDJ79..5F..STD..GCC; 1GDFTV..GDJL7#..5F202410-202509
FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS); FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS); KENYA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS); UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
main19000-51230supersedes 19000-51240i1VDFTV..VDJ79..DCB..STD..GCC;1VDFTV..VDJ78,79..(HT,PIC)..GCC; 1VDFTV..VDJL78202309-202409
EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
main19000-51250supersedes 19000-51220i1VDFTV..VDJ76,79..(DCB,HT)..GEN; 1VDFTV..VDJ79..LX..GEN201608-202308
FUEL TANK-90L, WITH(FUEL TANK CAP KEY)
main19000-17760supersedes 19000-17720i1HZ..HZJ7#; 1HZ..HZJ76,78,79..GEN..CBU; 1HZ..HZJ76..GCC; 1HZ..HZJ78,79..GEN..CBU; 1HZ..HZJ79..GEN..CBU200801-200907
FUEL TANK-90L, WITH(SUB TANK & FUEL TANK CAP KEY)&HEATER-W(FRONT)&SPEED METER-KM/H; FUEL TANK-90L, WITH(SUB TANK)&HEATER-W(FRONT)&SPEED METER-KM/H; HEATER-W(FRONT)&SPEED METER-KM/H; HEATER-W(FRONT)&SPEED METER-KM/H W/O(TACHOMETER); HIGH ALTITUDE COMPENSATOR-WITH&FUEL TANK-90L, WITH(SUB TANK & FUEL TANK CAP KEY)&HEATER-W(FRONT)&SPEED METER-KM/H; HIGH ALTITUDE COMPENSATOR-WITH&FUEL TANK-90L, WITH(SUB TANK)&HEATER-W(FRONT)&SPEEDMETER-KM/H; HIGH ALTITUDE COMPENSATOR-WITH&HEATER-W(FRONT); HIGH ALTITUDE COMPENSATOR-WITH&HEATER-W(FRONT)&SPEED METER-KM/H; HIGH ALTITUDE COMPENSATOR-WITH&HEATER-W(FRONT)&SPEED METER-KM/H W/O(TACHOMETER)
BANGLADESH SPEC&BATTERY-85D26R X 2(55AH X 2)&SPEED METER-KM/H 24V; BANGLADESH SPEC&FUEL TANK-90L, WITH(FUEL TANK CAP KEY)&BATTERY-85D26R X 2(55AH X 2)&SPEED METER-KM/H 24V
FUEL TANK-90L, WITH(SUB TANK)&HEATER-W(FRONT & REAR)&SPEED METER-KM/H; HEATER-W(FRONT & REAR)&SPEED METER-KM/H; HIGH ALTITUDE COMPENSATOR-WITH&FUEL TANK-90L, WITH(SUB TANK)&HEATER-W(FRONT & REAR)&SPEED METER-KM/H; HIGH ALTITUDE COMPENSATOR-WITH&HEATER-W(FRONT & REAR); HIGH ALTITUDE COMPENSATOR-WITH&HEATER-W(FRONT & REAR)&SPEED METER-KM/H
FUEL TANK-90L, WITH(SUB TANK)&HEATER-WITH(FRONT & REAR & ALUMI CORE)&SPEED METER-KM/H; HEATER-WITH(FRONT & REAR & ALUMI CORE); HEATER-WITH(FRONT & REAR & ALUMI CORE)&SPEED METER-KM/H; HIGH ALTITUDE COMPENSATOR-WITH&FUEL TANK-90L, WITH(SUB TANK)&HEATER-WITH(FRONT & REAR & ALUMI CORE)&SPEED METER-KM/H; HIGH ALTITUDE COMPENSATOR-WITH&HEATER-WITH(FRONT & REAR & ALUMI CORE); HIGH ALTITUDE COMPENSATOR-WITH&HEATER-WITH(FRONT & REAR & ALUMI CORE)&SPEED METER-KM/H
main19000-17B20i1HZ..HZJ76,78,79..GEN..CBU; 1HZ..HZJ76..GCC; 1HZ..HZJ78,79..GEN..CBU; 1HZ..HZJ79..GEN..CBU200801-200907
HIGH ALTITUDE COMPENSATOR-WITH&FUEL TANK-90L, WITH(SUB TANK & FUEL TANK CAP KEY)&SPEED METER-KM/H; HIGH ALTITUDE COMPENSATOR-WITH&FUEL TANK-90L, WITH(SUB TANK)&SPEED METER-KM/H; HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H; HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H W/O(TACHOMETER)
main19000-17B21i1HZ..HZJ7#; 1HZ..HZJ76,78,79..GEN..CBU; 1HZ..HZJ76..GCC; 1HZ..HZJ78,79..GEN..CBU; 1HZ..HZJ79..GEN..CBU200907-201008
HIGH ALTITUDE COMPENSATOR-WITH; HIGH ALTITUDE COMPENSATOR-WITH&FUEL TANK-90L, WITH(SUB TANK & FUEL TANK CAP KEY)&SPEED METER-KM/H; HIGH ALTITUDE COMPENSATOR-WITH&FUEL TANK-90L, WITH(SUB TANK)&SPEED METER-KM/H; HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H; HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H W/O(TACHOMETER)
main19000-17C90i1HZ..HZJ76,78,79..LHD..GEN..CBU; 1HZ..HZJ78,79..LHD..GEN..CBU; 1HZ..HZJ79..LHD..GEN..CBU200801-200907
COLD AREA SPEC.&FUEL TANK-90L, WITH(SUB TANK & FUEL TANK CAP KEY)&HEATER-W(FRONT)&SPEED METER-KM/H; COLD AREA SPEC.&FUEL TANK-90L, WITH(SUB TANK)&HEATER-W(FRONT)&SPEED METER-KM/H; COLD AREA SPEC.&HIGH ALTITUDE COMPENSATOR-WITH&FUEL TANK-90L, WITH(SUB TANK & FUELTANK CAP KEY)&HEATER-W(FRONT)&SPEED METER-KM/H; COLD AREA SPEC.&HIGH ALTITUDE COMPENSATOR-WITH&FUEL TANK-90L, WITH(SUB TANK)&HEATER-W(FRONT)&SPEED METER-KM/H; COLD AREA SPEC.&HIGH ALTITUDE COMPENSATOR-WITH&HEATER-W(FRONT)
COLD AREA SPEC.&FUEL TANK-90L, WITH(SUB TANK & FUEL TANK CAP KEY)&HEATER-W(FRONT)&SPEED METER-KM/H; COLD AREA SPEC.&FUEL TANK-90L, WITH(SUB TANK)&HEATER-W(FRONT)&SPEED METER-KM/H; COLD AREA SPEC.&HIGH ALTITUDE COMPENSATOR-WITH&FUEL TANK-90L, WITH(SUB TANK & FUELTANK CAP KEY)&HEATER-W(FRONT)&SPEED METER-KM/H; COLD AREA SPEC.&HIGH ALTITUDE COMPENSATOR-WITH&FUEL TANK-90L, WITH(SUB TANK)&HEATER-W(FRONT)&SPEED METER-KM/H
COLD AREA SPEC.&FUEL TANK-90L, WITH(SUB TANK)&HEATER-W(FRONT & REAR)&SPEED METER-KM/H; COLD AREA SPEC.&HIGH ALTITUDE COMPENSATOR-WITH&FUEL TANK-90L, WITH(SUB TANK)&HEATER-W(FRONT & REAR)&SPEED METER-KM/H; COLD AREA SPEC.&HIGH ALTITUDE COMPENSATOR-WITH&HEATER-W(FRONT & REAR)
COLD AREA SPEC&HEATER-WITH(FRONT & REAR & ALUMI CORE); COLD AREA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&HEATER-WITH(FRONT & REAR & ALUMI CORE)
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&HEATER-W(FRONT)
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&FUEL TANK-90L, WITH(SUB TANK & FUEL TANKCAP KEY)&HEATER-WITH(FRONT & ALUMI CORE); GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&FUEL TANK-90L, WITH(SUB TANK & FUEL TANKCAP KEY)&HEATER-WITH(FRONT & ALUMI CORE)&SPEED METER-KM/H; GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&FUEL TANK-90L, WITH(SUB TANK)&HEATER-WITH(FRONT & ALUMI CORE); GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&FUEL TANK-90L, WITH(SUB TANK)&HEATER-WITH(FRONT & ALUMI CORE)&SPEED METER-KM/H; GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&HEATER-WITH(FRONT & ALUMI CORE); GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&HEATER-WITH(FRONT & ALUMI CORE)&SPEED METER-KM/H
EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS)&SPEED METER-KM/H; SPEED METER-KM/H
1 parts on this diagram · 2 diagrams in section
PARTIAL ENGINE ASSEMBLY for Toyota LAND CRUISER
This section contains 1 genuine Toyota parts for the PARTIAL ENGINE ASSEMBLY system of the Toyota LAND CRUISER. Key components include: ENGINE ASSY, PARTIAL.
