Toyota LAND CRUISER — PARTIAL ENGINE ASSEMBLY

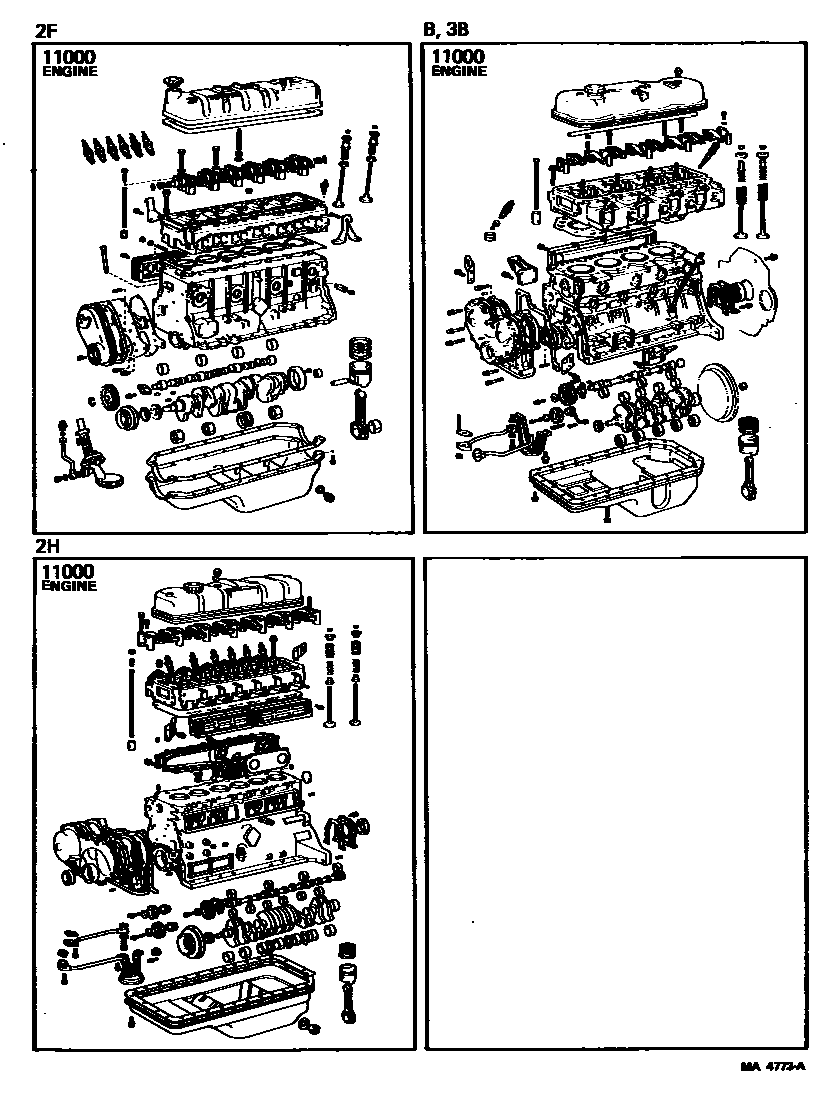

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-56090i198008-198201
sub22177-56042
sub22811-56011
sub90179-08161
sub91611-41014
main19000-56091i198201-198209
main19000-56092i198209-198408
sub19000-56120
main19000-56270i198408-198410
main19000-58010i198008-198201
sub22177-56042
sub22811-56011
sub90179-08161
sub91611-41014
main19000-58011i198201-198209
main19000-58012i198209-198408
sub19000-58080
main19000-58020i198008-198201
sub22177-56042
sub22811-56011
sub90179-08161
sub91611-41014
main19000-58021i198201-198209
main19000-58022i198209-198408
sub19000-58080
main19000-58340i198408-198410
sub19000-58370
main19000-58360i198408-198410
main19000-61170i198008-198502
sub90101-10133
sub91612-61040
main19000-61171i198502-198604
main19000-61180i198008-198410
sub19000-61181
sub90101-10133
sub91612-61040
main19000-61190i198008-198502
LOW-OCTANE SPEC
sub90101-10133
sub91612-61040
main19000-61191i198502-198604
LOW-OCTANE SPEC
main19000-61200i198104-198502
HIGH-OCTANE SPEC
sub90101-10132
sub90101-10133
sub91612-61040
sub92112-61028
main19000-61201i198502-198506
HIGH-OCTANE SPEC
main19000-61220i198401-198410
VICTORIA SPEC
sub19000-61221
sub90101-10132
sub90101-10133
sub91612-61040
sub92112-61028
main19000-68010i198008-198110
sub11293-68010
main19000-68020i198008-198110
sub11293-68010
main19000-68030i198110-198210
sub19000-68032
main19000-68031i198210-198506
sub19000-68033
main19000-68040i198110-198210
sub19000-68042
main19000-68041i198210-198410
sub19000-68043

1 parts on this diagram · 1 diagram in section
