Toyota LAND CRUISER — PACKAGE TRAY PANEL
64901ARETRACTOR SUB-ASSY, TONNEAU COVER
main64901-60040-03iHZJ80..5F..GX;HDJ80..LHD..LUB;FZJ80,HDJ80..GX;HDJ80..RHD..5F..GEN;FZJ80..4FC..VX..GEN;FZJ80,HZJ80..VX..GEN..(CBR,DSL)199208-199801
BLUISH GRAY,TRIM1#
SABLE,TRIM4#
main64901-60040-E0iHZJ80..5F..GX;FZJ80,HDJ80..GX;HDJ80..RHD..5F..TD2;FZJ80..4FC..VX..GEN;FZJ80,HDJ80,HZJ80..LHD..LUB..VX..GEN..(CBR,DSL,TD2)199501-199801
OAK,TRIM4#
64931BHANGER, TONNEAU COVER, RH
main64931-60010-03iHDJ80..GEN;HZJ80..GX,VX;FJ80..GX..GCC;FJ80,HDJ80..GX..(EFI,TD2);FJ80..(GX,VX)..(ARL,GEN)..CBR199001-199011
BLUISH GRAY,TRIM1#
main64931-60010-06iHDJ80..GEN;HZJ80..GX,VX;FJ80..GX..GCC;FJ80,HDJ80..GX..(EFI,TD2);FJ80..(GX,VX)..(ARL,GEN)..CBR199001-199011
SABLE,TRIM4#
main64931-60011-03iFZJ80..GX;FJ80..GX..GCC;FZJ80,HDJ80,HZJ80..VX..GEN;FJ80..(GX,VX)..(ARL,GEN)..CBR;FJ80,HDJ80,HZJ80..GX..(DSL,EFI,TD2)199011-199208
BLUISH GRAY,TRIM1#
SABLE,TRIM4#
main64931-60011-E0iHZJ80..5F..GX;FZJ80,HDJ80..GX;HDJ80..RHD..5F..TD2;FZJ80..4FC..VX..GEN;FZJ80,HDJ80,HZJ80..LHD..LUB..VX..GEN..(CBR,DSL,TD2)199501-199801
OAK,TRIM4#
64932BHANGER, TONNEAU COVER, LH
main64932-60010-03iHDJ80..GEN;HZJ80..GX,VX;FJ80..GX..GCC;FJ80,HDJ80..GX..(EFI,TD2);FJ80..(GX,VX)..(ARL,GEN)..CBR199001-199011
BLUISH GRAY,TRIM1#
main64932-60010-06iHDJ80..GEN;HZJ80..GX,VX;FJ80..GX..GCC;FJ80,HDJ80..GX..(EFI,TD2);FJ80..(GX,VX)..(ARL,GEN)..CBR199001-199011
SABLE,TRIM4#
main64932-60011-03iFZJ80..GX;FJ80..GX..GCC;FZJ80,HDJ80,HZJ80..VX..GEN;FJ80..(GX,VX)..(ARL,GEN)..CBR;FJ80,HDJ80,HZJ80..GX..(DSL,EFI,TD2)199011-199208
BLUISH GRAY,TRIM1#
SABLE,TRIM4#
main64932-60011-E0iHZJ80..5F..GX;FZJ80,HDJ80..GX;HDJ80..RHD..5F..TD2;FZJ80..4FC..VX..GEN;FZJ80,HDJ80,HZJ80..LHD..LUB..VX..GEN..(CBR,DSL,TD2)199501-199801
OAK,TRIM4#
64935HOLDER, TONNEAU COVER, RH
main64935-60010-03iFZJ80..GX;FJ80..GX..GCC;FZJ80,HDJ80,HZJ80..VX..GEN;FJ80..(GX,VX)..(ARL,GEN)..CBR;FJ80,HDJ80,HZJ80..GX..(DSL,EFI,TD2)199001-199208
BLUISH GRAY,TRIM1#
main64935-60010-06iFZJ80..GX;FJ80..GX..GCC;FZJ80,HDJ80,HZJ80..VX..GEN;FJ80..(GX,VX)..(ARL,GEN)..CBR;FJ80,HDJ80,HZJ80..GX..(DSL,EFI,TD2)199001-199208
SABLE,TRIM4#
main64935-60010-E0iHZJ80..5F..GX;FZJ80,HDJ80..GX;HDJ80..RHD..5F..TD2;FZJ80..4FC..VX..GEN;FZJ80,HDJ80,HZJ80..LHD..LUB..VX..GEN..(CBR,DSL,TD2)199501-199801
OAK,TRIM4#
64936HOLDER, TONNEAU COVER, LH
main64936-60020-03iFZJ80..GX;FJ80..GX..GCC;FZJ80,HDJ80,HZJ80..VX..GEN;FJ80..(GX,VX)..(ARL,GEN)..CBR;FJ80,HDJ80,HZJ80..GX..(DSL,EFI,TD2)199001-199208
BLUISH GRAY,TRIM1#
main64936-60020-06iFZJ80..GX;FJ80..GX..GCC;FZJ80,HDJ80,HZJ80..VX..GEN;FJ80..(GX,VX)..(ARL,GEN)..CBR;FJ80,HDJ80,HZJ80..GX..(DSL,EFI,TD2)199001-199208
SABLE,TRIM4#
main64936-60020-E0iHZJ80..5F..GX;FZJ80,HDJ80..GX;HDJ80..RHD..5F..TD2;FZJ80..4FC..VX..GEN;FZJ80,HDJ80,HZJ80..LHD..LUB..VX..GEN..(CBR,DSL,TD2)199501-199801
OAK,TRIM4#
9321058016
main93210-58016
9323056035
main93230-56035
9353055040
main93530-55040
8 parts on this diagram · 1 diagram in section

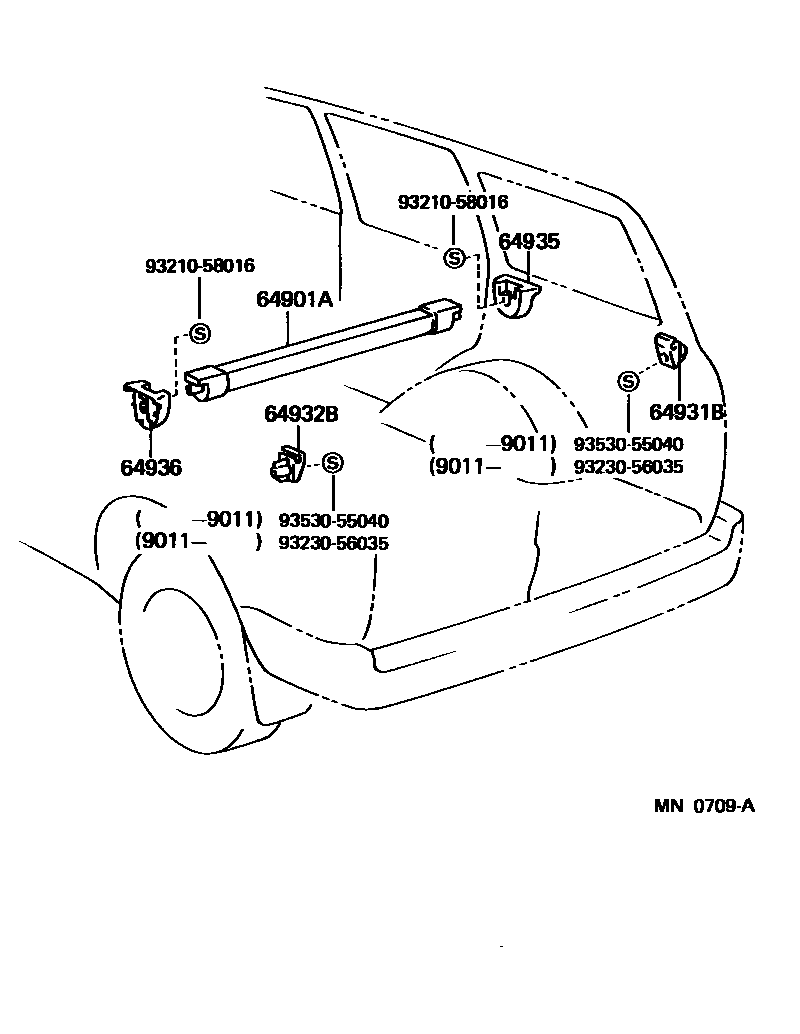

PACKAGE TRAY PANEL for Toyota LAND CRUISER
This section contains 8 genuine Toyota parts for the PACKAGE TRAY PANEL system of the Toyota LAND CRUISER. Key components include: RETRACTOR SUB-ASSY, TONNEAU COVER, HANGER, TONNEAU COVER, RH, HANGER, TONNEAU COVER, LH, HOLDER, TONNEAU COVER, RH, HOLDER, TONNEAU COVER, LH.
