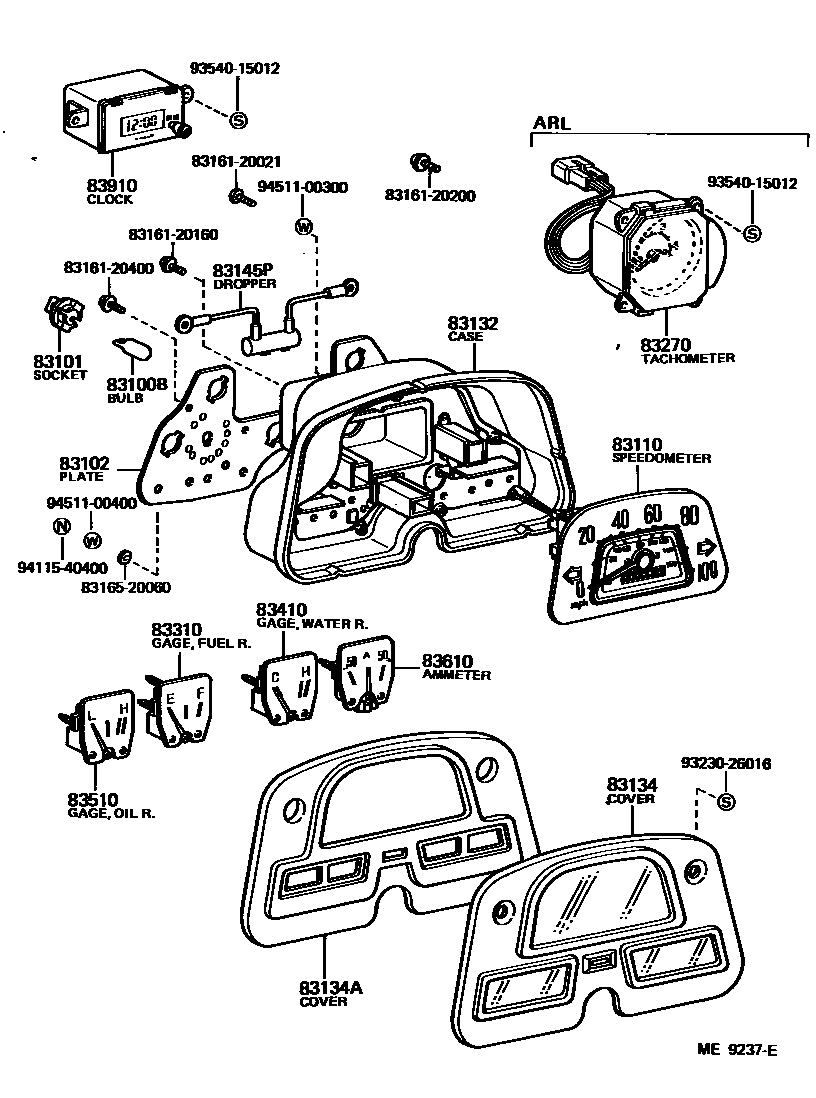

Toyota LAND CRUISER — METER
83100BBULB, COMBINATION METER, NO.1
12V 3.4W,12V 3.4W
24V 3W,24V 3W
83101SOCKET SUB-ASSY, COMBINATION METER BULB
83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
12V
24V
83110SPEEDOMETER ASSY
12V & 24V,KM
12V & 24V,MILE; MILE
MILE,W/LEAD,SW
KM,W/LEAD,SW
12V,KM,SAUDI ARABIA SPEC
83132CASE, COMBINATION METER
12V
24V
12V
24V
83134COVER, COMBINATION METER, NO.1
83134ACOVER, COMBINATION GAGE
83145PDROPPER, METER
24V
83270TACHOMETER ASSY, ENGINE
83310GAGE ASSY, FUEL RECEIVER
83410GAGE ASSY, WATER TEMPERATURE RECEIVER
SAUDI ARABIA SPEC
83510GAGE ASSY, OIL PRESSURE RECEIVER
12V
24V
83610AMMETER ASSY
83910CLOCK ASSY
12V
24V
8316120021CASE, COMBINATION METER MIRROR, NO.1
main83161-20021
8316120160CASE, COMBINATION METER MIRROR, NO.1
main83161-20160
8316120200CASE, COMBINATION METER MIRROR, NO.1
main83161-20200
8316120400CASE, COMBINATION METER MIRROR, NO.1
main83161-20400
8316520060MIRROR, COMBINATION METER, NO.2
main83165-20060
9323026016
main93230-26016
9354015012
main93540-15012
9411540400
main94115-40400
9451100300
main94511-00300
9451100400
main94511-00400
24 parts on this diagram · 2 diagrams in section
METER for Toyota LAND CRUISER
This section contains 40 genuine Toyota parts for the METER system of the Toyota LAND CRUISER. Key components include: BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1, SPEEDOMETER ASSY, CASE, COMBINATION METER.
