Toyota LAND CRUISER — HEATING & AIR CONDITIONING - SET

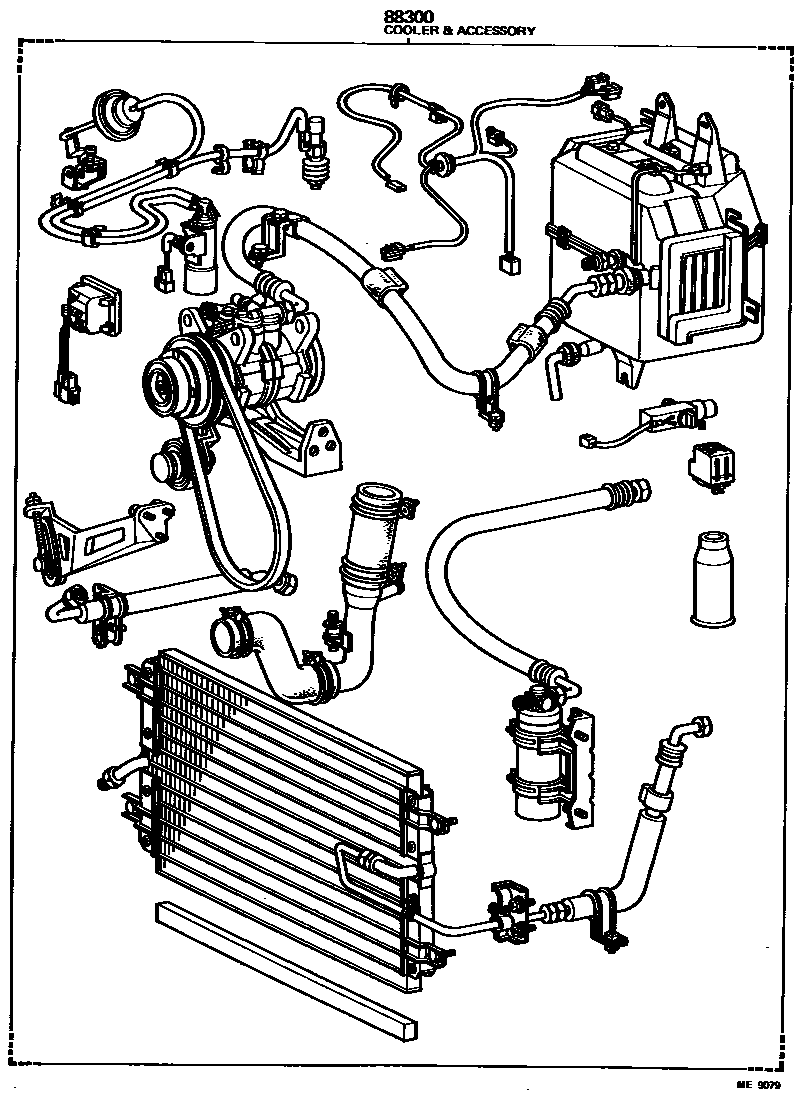

Parts diagram

88300COOLER & ACCESSORY ASSY

main88300-60280i199001-199208

main88300-60290i199001-199208

main88300-60300i199001-199208

main88300-60450i199208-199305

main88300-60460i199001-199208

main88300-60461i199208-199305

main88300-60650i199208-199305

main88300-6A020i199305-199501

main88300-6A090i199305-199501

main88300-6A140i199305-199501

main88300-6A141i199501-199801

main88300-6A190i199305-199501

main88300-6A241i199501-199801

main88300-6A251i199501-199801

main88300-6A311i199501-199801

1 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - SET for Toyota LAND CRUISER

This section contains 1 genuine Toyota parts for the HEATING & AIR CONDITIONING - SET system of the Toyota LAND CRUISER. Key components include: COOLER & ACCESSORY ASSY.
